5010 LTD (1690119) - Simplicity Broadmoor Lawn Tractor FRONT WHEELS AND STEERING Parts Diagram

Broadmoor Lawn Tractor

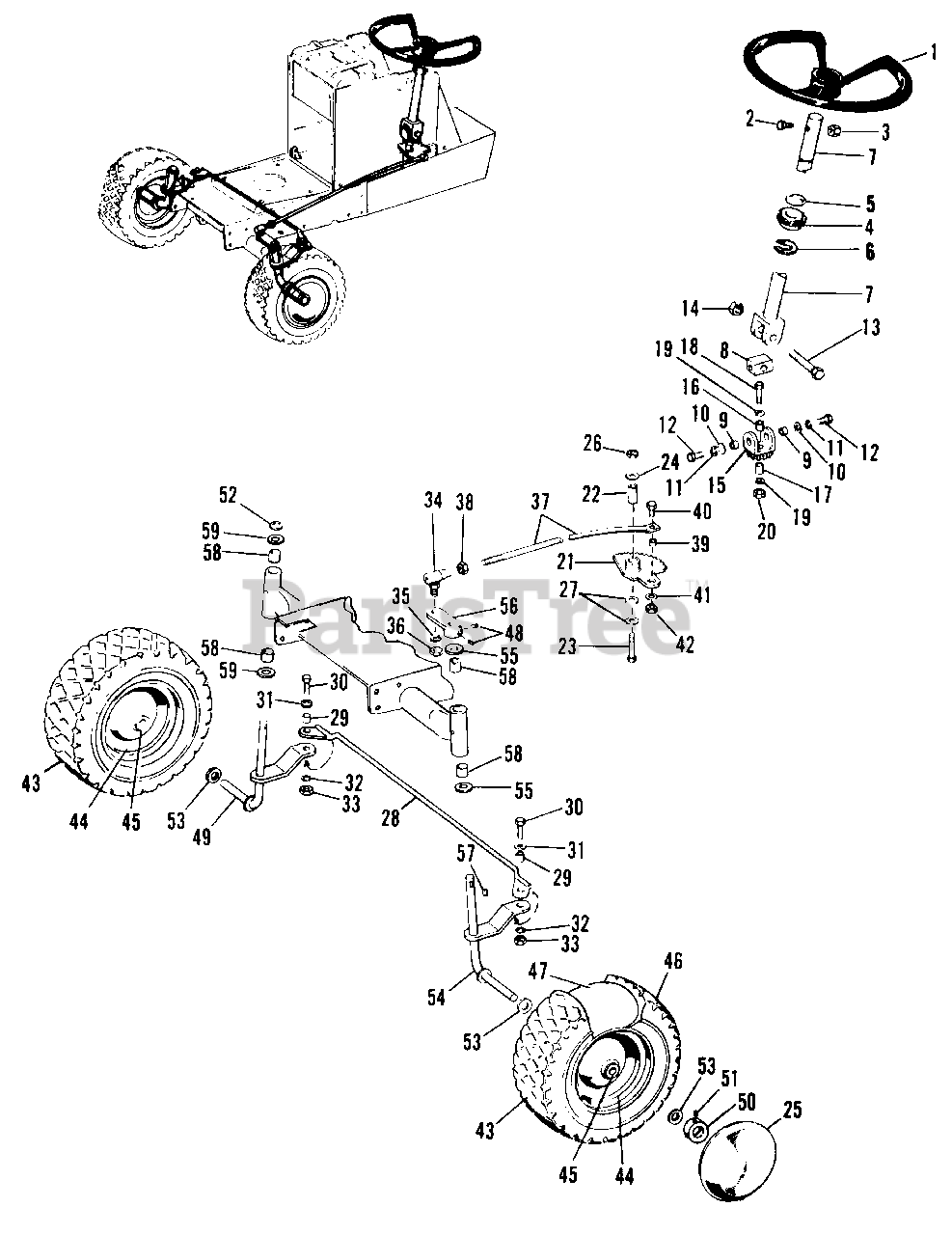

FRONT WHEELS AND STEERING Parts Diagram

  • Title

1

Simplicity 2163113

Wheel Assembly, Steering

$

$

Not available

2

Simplicity 2821977

Capscrew, Hex, 5/16"-18 x 1-1/4" lg.

$

$

Not available

3

Simplicity 2829001

Nut, Hex, Full, Lock 5/16"-18

$

$

Not available

4

Simplicity 2157077SM

Bushing, Steering

$140.99

$

Usually ships in 2-12 days

0

5

Simplicity 158223

Washer, (As Required)

$

$

Not available

6

Simplicity 2157241

Ring, Snap

$

$

Not available

7

Simplicity 1650823

Shaft Assembly, Steering

$

$

Not available

8

Simplicity 154153

Pin, Universal Joint

$

$

Not available

9

Simplicity 2153081

Spacer

$

$

Not available

10

Simplicity 1924940SM

Washer, Plain, 3/8"
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

11

Simplicity 1916965SM

Lockwasher, 3/8"
(Superseded to 703454)

$3.49

$

In Stock, Qty 9

0

12

Simplicity 2821965

Capscrew, Hex, 3/8"-16 x 3/4" lg.

$

$

Not available

13

Simplicity 2830570

Capscrew, Hex, 5/16-18 x 1-1/2" lg.

$

$

Not available

14

Simplicity 2823362

Nut, Hex, Full, Lock 5/16"-18

$

$

Not available

15

Simplicity 1650588

Fork & Pinion Assembly

$

$

Not available

16

Simplicity 2156064SM

Bushing

$22.99

$

Usually ships in 2-12 days

0

17

Simplicity 1729274SM

Spacer

$13.99

$

Usually ships in 2-12 days

0

18

Simplicity 923470

Capscrew, Hex, 3/8"-16 x 1-1/2" lg.

$

$

Not available

19

Simplicity 2156065

Washer

$

$

Not available

20

Simplicity 2828731

Nut, Hex, Lock, Jam, 3/8"-16

$

$

Not available

21

Simplicity 156066

Gear Assembly, Steering

$

$

Not available

22

Simplicity 1729261SM

Spacer

$13.99

$

Usually ships in 2-12 days

0

23

Simplicity 2821972

Capscrew, Hex, 3/8"-16 x 2-1/2" lg.

$

$

Not available

24

Simplicity 1924940SM

Washer, Plain, 3/8"
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

25

Simplicity 2156210SM

Cap, Hub, Front

$

$

Not available

26

Simplicity 2823428

Nut, Hex, Full, Lock, 3/8"-16

$

$

Not available

27

Simplicity 1924356SM

Washer, Special
(Superseded to 703591)

$5.49

$

In Stock, Qty 9

0

28

Simplicity 1652115

Link Assembly, Drag

$

$

Not available

29

Simplicity 2154177SM

Spacer

$39.99

$

In Stock, only 4 left!

0

30

Simplicity 162053

Screw, Special

$

$

Not available

31

Simplicity 1924940SM

Washer, Plain, 3/8"
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

32

Simplicity 1916965SM

Lockwasher, 3/8"
(Superseded to 703454)

$3.49

$

In Stock, Qty 9

0

33

Simplicity 2816950SM

Nut, Hex, Full, 3/8"-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 10

0

34

Simplicity 2154301

Joint, Ball

$

$

Not available

35

Simplicity 2816966

Lockwasher, 1/2"

$

$

Not available

36

Simplicity 919423

Nut, Hex, Full, 1/2"-20

$

$

Not available

37

Simplicity 1652360

Rod, Tie

$

$

Not available

38

Simplicity 2819262

Nut, Hex, Jam, 1/2-20

$

$

Not available

39

Simplicity 2121349

Spacer

$

$

Not available

40

Simplicity 2807731

Capscrew, Hex, 3/8"-16 x 1" lg.

$

$

Not available

41

Simplicity 1924940SM

Washer, Plain, 3/8"
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

42

Simplicity 2823428

Nut, Hex, Full, Lock, 3/8"-16

$

$

Not available

43

Simplicity 156212

Wheel & Tire Assembly

$

$

Not available

44

Simplicity 2156180

Wheel

$

$

Not available

45

Simplicity 2156316SM

Bearing

$11.99

$

In Stock, Qty 16

0

46

Simplicity 1562-13

Tire

$

$

Not available

47

Simplicity 156214

Tube

$

$

Not available

48

Simplicity 2828721

Screw, Set, 5/16"-18 x 1/2" lg.
(Superseded to 1930540SM)

$4.49

$

In Stock, Qty 13

0

49

Simplicity 2165051SM

Spindle Assembly, R.H.

$

$

Not available

50

Simplicity 1729254SM

Collar, Set
(Superseded to 703150)

$8.99

$

Usually ships in 2-12 days

0

51

Simplicity 2828691

Screw, Set, 5/16"-18-5/16" lg.

$

$

Not available

52

Simplicity 2157286

Ring, Retaining

$

$

Not available

53

Simplicity 2108181

Washer

$

$

Not available

54

Simplicity 2165053SM

Spindle Assembly, L.H.

$81.99

$

Usually ships in 2-12 days

0

55

Simplicity 2108181

Washer

$

$

Not available

56

Simplicity 1652117

Lever Assembly, Steering

$

$

Not available

57

Simplicity 2830670SM

Key

$2.49

$

Usually ships in 2-12 days

0

58

Simplicity 2154289SM

Bushing

$12.99

$

Usually ships in 2-12 days

0

59

Simplicity 2108181

Washer

$

$

Not available
