50123 - Gravely Lawn Tractor, 16hp, With Hydraulic Lift NUMBER TWELVE - TRANSMISSION CASE ASSEMBLY Parts Diagram

Lawn Tractor, 16hp, With Hydraulic Lift

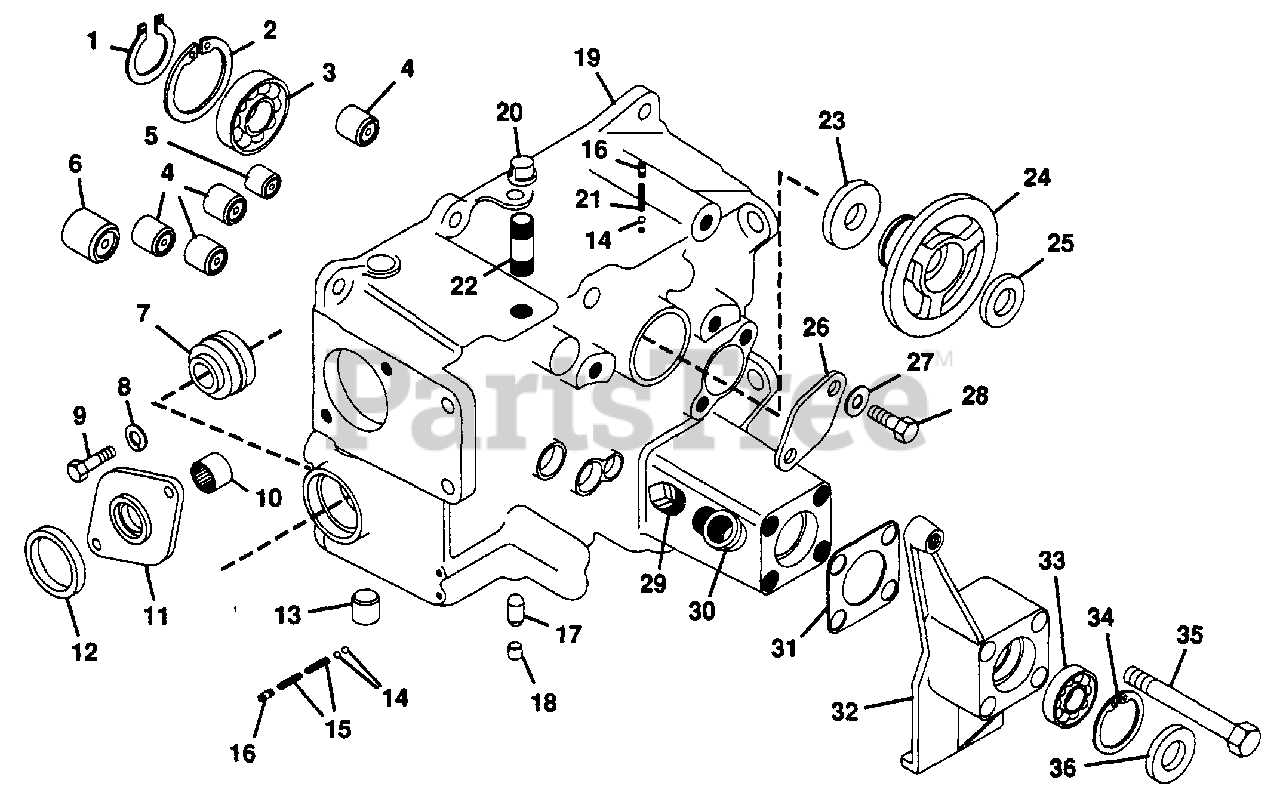

NUMBER TWELVE - TRANSMISSION CASE ASSEMBLY Parts Diagram

  • Title

1

Gravely 017919

RING, RETAINING 1.969 SHAFT
(Superseded to 05712100)

$3.99

$

Usually ships in 4-12 days

0

2

Gravely 018872

RING, RETAINING 3.156 BORE
(Superseded to 05713000)

$14.99

$

Usually ships in 4-12 days

0

3

Gravely 017915

BEARING, BALL 1.968X3.149X.629
(Superseded to 05420300)

$68.99

$

Usually ships in 4-12 days

0

4

Gravely 017913

BEARING, NEEDLE .75X1X.75
(Superseded to 05420100)

$23.99

$

Usually ships in 4-12 days

0

5

Gravely 017914

BEARING, NEEDLE .625X.812X.750
(Superseded to 05420200)

$9.99

$

Usually ships in 4-12 days

0

6

Gravely 017912

BRG, NEEDLE 1.000X1.250X.750
(Superseded to 05420000)

$15.99

$

Usually ships in 4-12 days

0

7

Gravely 014640

ASM, BEARING 1.000X1.980X1.243
(Superseded to 05419300)

$115.99

$

Usually ships in 4-12 days

0

8

Gravely 120214

WASHER, LOCK 5/16 REG.
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 180079

BOLT, HEX 5/16-18X1.00
(Superseded to 05901701)

$1.99

$

In Stock, only 4 left!

0

10

Gravely 009660

BEARING
(Superseded to 05427100)

$

$

Not available

11

Gravely 046302

CAP, FRONT PTO
(Superseded to 08778300)

$

$

Not available

12

Gravely 015137

SEAL, OIL .750X1.254X.188
(Superseded to 05613800)

$14.99

$

In Stock, Qty 5

0

13

Gravely 017946

PLUG
(Superseded to 07704100)

$3.49

$

Usually ships in 4-12 days

0

14

Gravely 274301

BALL, STEEL 5/16
(Superseded to 05429900)

$

$

Not available

15

Gravely 017936

SPRING, COMP. 1.50X.30X26 LB/IN
(Superseded to 08327700)

$

$

Not available

16

Gravely 103877

PLUG, PIPE 1/8
(Superseded to 07023700)

$

$

Not available

17

Gravely 018200

PIN, INTERLOCK
(Superseded to 08706400)

$

$

Not available

18

Gravely 421743

PLUG, CUP 3/8
(Superseded to 07702700)

$

$

Not available

19

Gravely 050115

ASSEMBLY, TRANSMISSION CASE(INCLUDES ITEM NUMBERS 4 THROUGH 7.)
(Superseded to 08784900)

Note: (INCLUDES ITEM NUMBERS 4 THROUGH 7.)

$1034.99

$

Usually ships in 4-12 days

0

20

Gravely 019472

CAP, PIPE 1/2 NPT
(Superseded to 08715400)

$9.49

$

Usually ships in 4-12 days

0

21

Gravely 024772

SPRING
(Superseded to 08330400)

$

$

Not available

22

Gravely 121664

NIPPLE, PIPE 1/2X2.5
(Superseded to 07024300)

$

$

Not available

23

Gravely 017917

SEAL, OIL 2.250X3.005X.375
(Superseded to 05614000)

$22.99

$

In Stock, only 1 left!

0

24

Gravely 051555

HUB, CLUTCH
(Superseded to 08790700)

$479.99

$

Usually ships in 4-12 days

0

25

Gravely 018035

SEAL, OIL .75X1.625X.25
(Superseded to 05614600)

$13.99

$

In Stock, Qty 5

0

26

Gravely 018421

PLATE, COVER
(Superseded to 08707500)

$11.99

$

Usually ships in 4-12 days

0

27

Gravely 120394

WASHER, FLAT .406X.812X.065
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 180120

BOLT, HEX 3/8-16X.750
(Superseded to 05901702)

$1.99

$

In Stock, Qty 11

0

29

Gravely 103880

PLUG, PIPE 1/2
(Superseded to 07023900)

$3.49

$

Usually ships in 4-12 days

0

30

Gravely 108686

ELBOW, 1/2 90 DEGREE STREET
(Superseded to 07024000)

$

$

Not available

31

Gravely 018030

GASKET(SERVICE ONLY)
(Superseded to 08701800)

Note: (SERVICE ONLY)

$7.99

$

In Stock, Qty 19

0

32

Gravely 042976

RETAINER, AXLE BEARING
(Superseded to 08760200)

$

$

Not available

33

Gravely 050473

BEARING, BALL SEALED
(Superseded to 05426600)

$41.99

$

Usually ships in 4-12 days

0

34

Gravely 018812

RING, RETAINING
(Superseded to 05712900)

$6.49

$

Usually ships in 4-12 days

0

35

Gravely 180191

BOLT, HEX 1/2-13X3.25
(Superseded to 05901634)

$3.99

$

In Stock, Qty 8

0

36

Gravely 051096

SEAL, OIL AXLE
(Superseded to 05618200)

$22.99

$

In Stock, Qty 7

0
