50126 - Troy-Bilt Junior I Rear-Tine Tiller (SN: M1274 - M8203) BOLO TINE & WHEEL ASSEMBLIES Parts Diagram

Junior I Rear-Tine Tiller

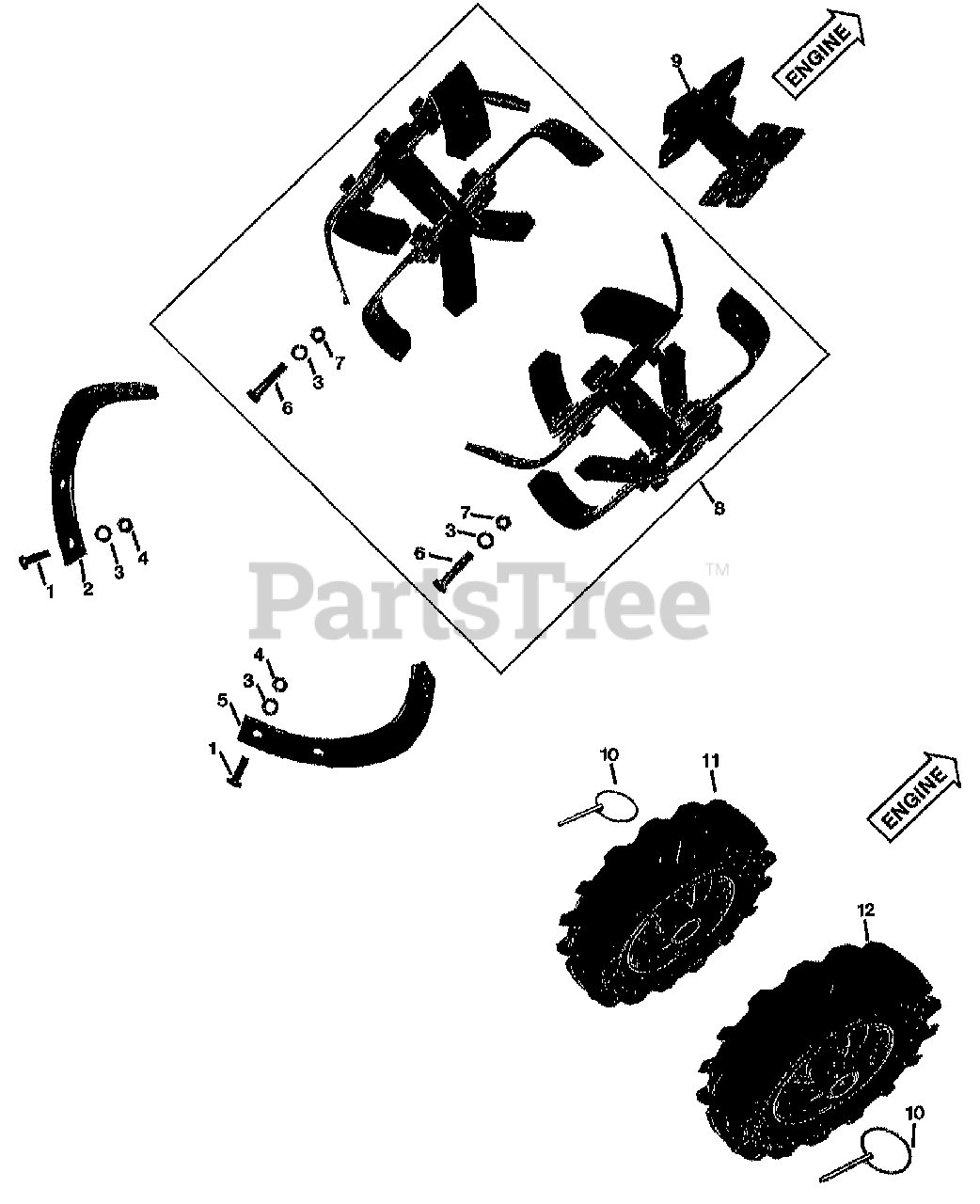

BOLO TINE & WHEEL ASSEMBLIES Parts Diagram

  • Title
1

Troy-Bilt 9711

SCR-HH 3/8-16X1.0 G5 ZP (Tine mounting)

$

$

Currently unavailable

2

Troy-Bilt 50049-02

TINE-BOLO LEFT SINGLE
(Superseded to 742-04227-0637)

$16.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 9913

WASHER-LK .375 @ DEPL (SEE ILLUSTRATION)

$

$

Currently unavailable

4

Troy-Bilt 9802

NUT-HEX 3/8-16 ZP

$

$

Currently unavailable

5

Troy-Bilt 50049-01

TINE-BOLO RIGHT
(Superseded to 742-04226-0637)

$16.99

$

In Stock, Qty 20+

0

6

MTD 9555

BOLT-HH 3/8-16X1.75 G8 ZP (Tine holder to tiller shaft)

$

$

Not available

7

MTD 9807

NUT-H/LK 3/8-16
(Superseded to 690-239-0020)

$

$

Not available

8

Troy-Bilt 1900

KIT-TINE & HOLDER 16 Tines, assembled.

$

$

Currently unavailable

9

MTD 50046

TINE HOLDER-WELD (FOR Bolo Tines, LT and RT sides)

$

$

Not available

Troy-Bilt 1901

TINES-BOLO JUNIOR/TUFFY
(Superseded to GW-1901)

$

$

Not available

10

Troy-Bilt 9355

PIN-QUICK RELEASE (Wheel hub to shaft)

$

$

Currently unavailable

11

Troy-Bilt 50045-01

ASSM-TIRE&WHL LH GRAY

$

$

Currently unavailable

12

Troy-Bilt 50045-02

ASSM-TIRE&WHL RH GRAY

$

$

Currently unavailable
