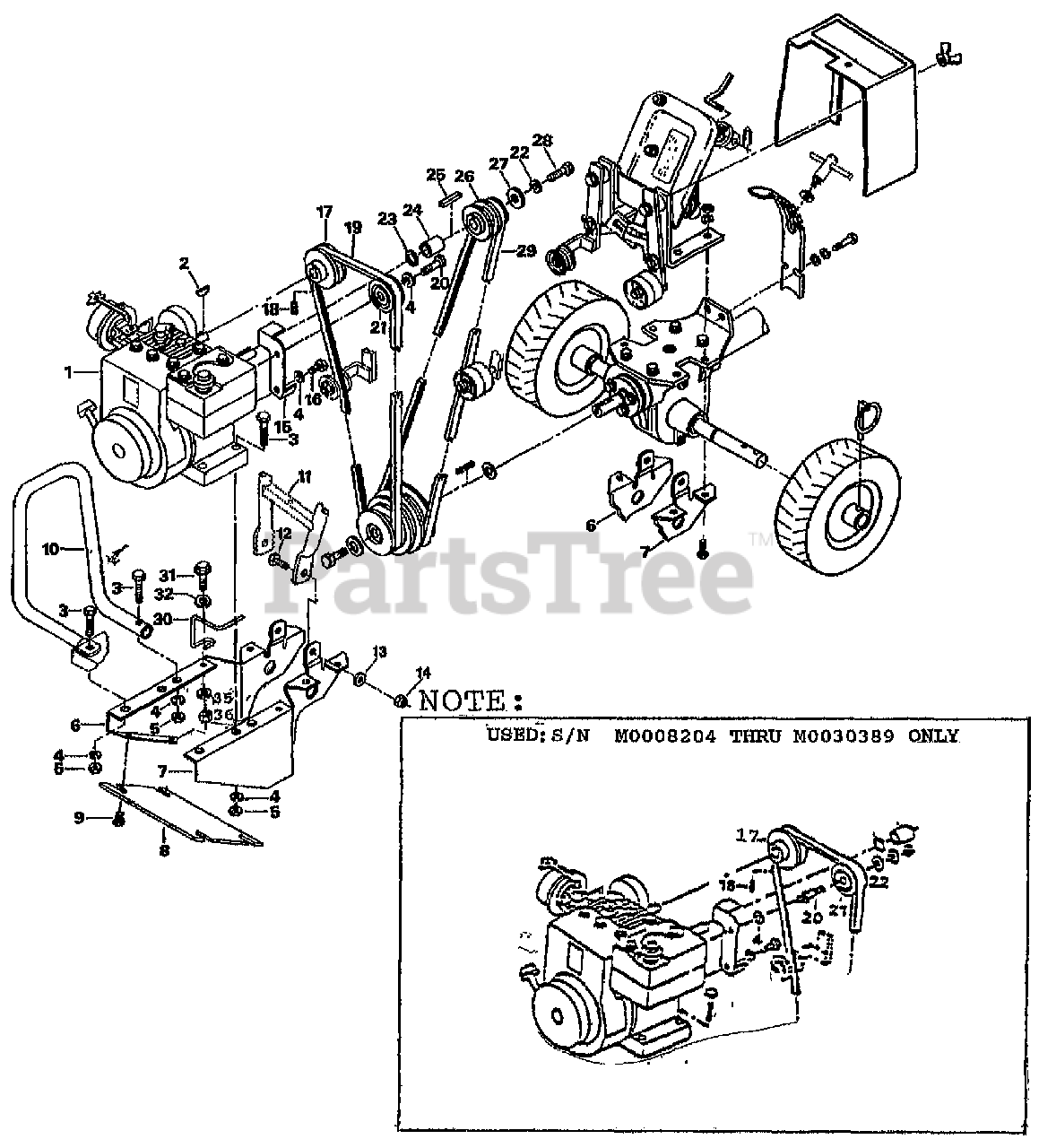

50173 - Troy-Bilt Junior II Rear-Tine Tiller (SN: M0008204 - M0067998) ENGINE, BELT & CARB GUARD Parts Diagram

Junior II Rear-Tine Tiller

ENGINE, BELT & CARB GUARD Parts Diagram

  • Title

1

0

TECUMSEH ENGINE - 3 1/2HP MODEL H36 TYPE 45593R

$

$

Not available

2

MTD 9361

KEY-WOODRUFF #5 (Engine Pulley)

$

$

Not available

3

Troy-Bilt 9758

SCR-HH 5/16-18X1.5 G5 ZP

$

$

Currently unavailable

4

Troy-Bilt 9912

WASHER-LK .312 ZP

$

$

Currently unavailable

5

Troy-Bilt 9801

NUT-HEX 5/16-18 ZP

$

$

Currently unavailable

6

Troy-Bilt 50211-2

BRKT-ENG JR RT W/GUSSET

$

$

Currently unavailable

7

Troy-Bilt 50211-1

BRKT-ENG LT JR W/GUSSET

$

$

Currently unavailable

8

Troy-Bilt 50199

COVER-ENG BRKT PNT

$

$

Currently unavailable

9

Troy-Bilt 9552

SCR-HWH 1/4-20 X .5 STH (Used to attach Engine Bracket Cover to Bracket)
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 50195

GUARD-CARBURETOR PNT
(Superseded to 1904539001)

$72.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 50181

ASSM-HANDLEBAR

$

$

Currently unavailable

12

Troy-Bilt 9711

SCR-HH 3/8-16X1.0 G5 ZP (Handlebar Ass'y to Mounting Bracket)

$

$

Currently unavailable

13

Troy-Bilt 9904

WASHER-FLAT 3/8 SAE
(Superseded to 736-3050)

$4.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 9837

NUT-LOCK 3/8-16 NYLON ZP
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 50198

GUIDE-BELT REV PNT

$

$

Currently unavailable

16

Troy-Bilt 9563

SCR-HH 5/16-24X.50

$

$

Currently unavailable

4

Troy-Bilt 9912

WASHER-LK .312 ZP

$

$

Currently unavailable

17

Troy-Bilt 50210

PULLEY-REVERSE MACH (Used with S/N M43277 & later; repl. 50128; used with 18)

$

$

Currently unavailable

17

Troy-Bilt 50128

PULLEY-REVERSE MACH (used with 18)

$

$

Currently unavailable

18

MTD 9561

SCR-SS 1/4-20 X .25 (For use with 50210 Pulley only; For old style, use 9564)

$

$

Not available

18

Troy-Bilt 9564

SCR M10-32X.25 (For old style pulley)

$

$

Currently unavailable

19

Troy-Bilt 50134

BELT-V (Reverse)
(Superseded to GW-50134)

$30.99

$

In Stock, only 1 left!

0

20

Troy-Bilt 9708

BOLT-HH 5/16-24 X 1.5 ZP (For Belt Guide Pulley; S/N 90390 & later)

$

$

Currently unavailable

20

Troy-Bilt 50145

STANDOFF 3/8-16 X 1.88 (Kit #1994)

$

$

Currently unavailable

21

Troy-Bilt 50190

IDLER-V-GROOVE (For S/N 30390 only & later)

$

$

Currently unavailable

21

Troy-Bilt 50144

KIT-REVERSE IDLER-JR2

$

$

Currently unavailable

22

Troy-Bilt 9913

WASHER-LK .375 @ DEPL

$

$

Currently unavailable

22

Troy-Bilt 9904

WASHER-FLAT 3/8 SAE
(Superseded to 736-3050)

$4.49

$

In Stock, Qty 20+

0

23

Troy-Bilt 1138-1

SHIM-1.0X.7656X.062
(Superseded to 736-04187)

$4.99

$

In Stock, Qty 20+

0

23

Troy-Bilt 1138-2

SHIM-1.0X.7656X.031
(Superseded to 736-04192)

$6.99

$

In Stock, only 3 left!

0

24

Troy-Bilt 50141

SPACER-.937X.755X.938

$

$

Currently unavailable

24

Troy-Bilt 9892

HEX NUT 3/8-16" (Kit #1994)

$

$

Currently unavailable

25

Troy-Bilt 9302

KEY-.188 SQ X 1.25 (Engine Pulley to Shaft)

$

$

Currently unavailable

26

Troy-Bilt 50139

PULLEY-ENG MACH

$

$

Currently unavailable

27

Troy-Bilt 9933

WASHER-1.25X.375X.1 ZP

$

$

Currently unavailable

28

Troy-Bilt 9562

CAP SCREW-HH 3/8-24 X 1 ZP

$

$

Currently unavailable

29

Troy-Bilt 50161

BELT-V (Forward)

$

$

Currently unavailable

30

Troy-Bilt 50146

GUIDE-BELT FWD

$

$

Currently unavailable

31

Troy-Bilt 9573

SCR-HWH 1/4-20 X .75 STH
(Superseded to 1754128)

$3.99

$

In Stock, only 2 left!

0

32

Troy-Bilt 9900

WASHER-FLAT 1/4 SAE

$

$

Currently unavailable

35

Troy-Bilt 9910

WASHER-LK .25 ZP

$

$

Currently unavailable

36

Troy-Bilt 9800

NUT-HEX 1/4-20 ZP

$

$

Currently unavailable
