50173 - Troy-Bilt Junior II Rear-Tine Tiller (SN: M0008204 - M0067998) FORWARD/REVERSE SHIFT ASSEMBLIES Parts Diagram

Junior II Rear-Tine Tiller

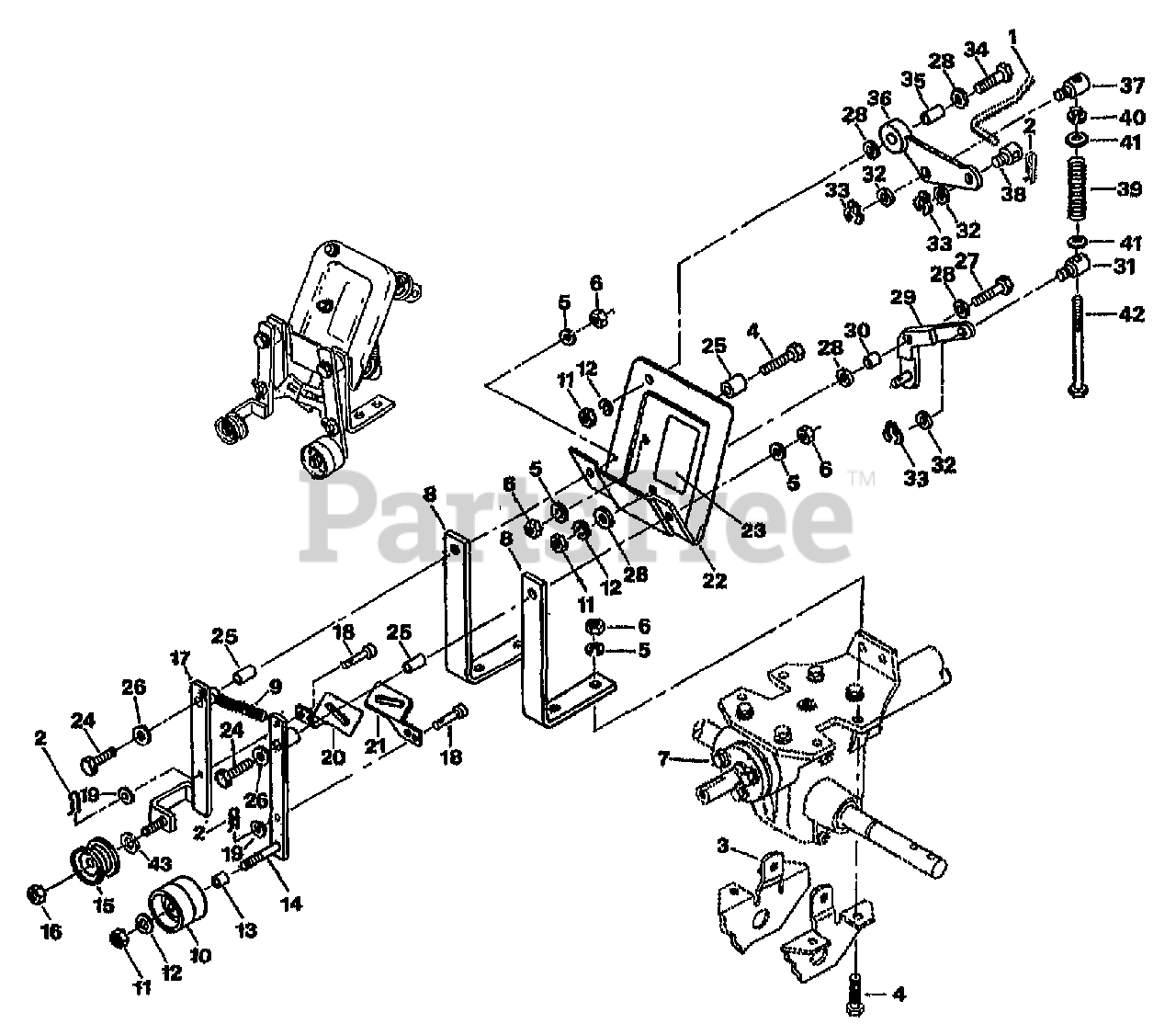

FORWARD/REVERSE SHIFT ASSEMBLIES Parts Diagram

  • Title

1

Troy-Bilt 50170

ASSM-DR CONTROL ROD

$

$

Currently unavailable

2

Troy-Bilt 9338

PIN-COTTER .08 (2 also used w/ adj. shifting links.)
(Superseded to 714-04048)

$8.49

$

In Stock, only 3 left!

0

3

Troy-Bilt 50211-2

BRKT-ENG JR RT W/GUSSET

$

$

Currently unavailable

4

Troy-Bilt 9574

SCR-HH 5/16-18X1.25 G5ZP

$

$

Currently unavailable

5

Troy-Bilt 9912

WASHER-LK .312 ZP

$

$

Currently unavailable

6

Troy-Bilt 9801

NUT-HEX 5/16-18 ZP

$

$

Currently unavailable

7

Troy-Bilt 1953

TRANS-REPLACE JR 2

$

$

Currently unavailable

8

Troy-Bilt 50197

BAR-MTG PNT

$

$

Currently unavailable

9

Troy-Bilt 1492

SPRING-.436 X 3.25
(Superseded to GW-1492099)

$10.99

$

In Stock, Qty 8

0

10

Troy-Bilt 9193

PULLEY-FWD IDLER

$

$

Currently unavailable

11

Troy-Bilt 9802

NUT-HEX 3/8-16 ZP

$

$

Currently unavailable

12

Troy-Bilt 9913

WASHER-LK .375 @ DEPL

$

$

Currently unavailable

13

Troy-Bilt 1113-1

BUSHING-.5X.375X.3
(Superseded to GW-1113-1099)

$5.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 20528

ARM-IDLER FWD PNT

$

$

Currently unavailable

15

Troy-Bilt 9460

IDLER-REV (Use with P/N 9807 Locknut)

$

$

Currently unavailable

16

Troy-Bilt 9837

NUT-LOCK 3/8-16 NYLON ZP
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 20+

0

17

Troy-Bilt 20525

ASSM-IDLER REV @ DEPL

$

$

Currently unavailable

18

MTD 9340

PIN-CLEVIS .375X.719 ZP

$

$

Not available

19

Troy-Bilt 9900

WASHER-FLAT 1/4 SAE

$

$

Currently unavailable

2

Troy-Bilt 9338

PIN-CLIP .08
(Superseded to 714-04048)

$8.49

$

In Stock, only 3 left!

0

20

Troy-Bilt 20517-02

LINK-REV

$

$

Currently unavailable

21

MTD 20517-01

LINK-FWD

$

$

Not available

22

Troy-Bilt 20498

BASE-SHIFTING (Forward/Reverse - inc. # 23)

$

$

Currently unavailable

23

Troy-Bilt 50112

DECAL-BELT WARNING

$

$

Currently unavailable

24

Troy-Bilt 9678

BOLT-HH 5/16-18 X 2 G5 ZP

$

$

Currently unavailable

25

MTD 9479

BUSHING-.438X.323X.712

$

$

Not available

26

MTD 20545

WASHER-#.75X.32X.09 ZP

$

$

Not available

27

Troy-Bilt 9712

SCR-HH 3/8-16X1.25

$

$

Currently unavailable

28

Troy-Bilt 20553

SPACER-.88X.385X.09 ZP
(Superseded to GW-20553)

$

$

Not available

29

Troy-Bilt 20680

BELLCRANK-WELDMENT

$

$

Currently unavailable

30

Troy-Bilt 20532

BUSHING-.5X.38X.4
(Superseded to GW-20532)

$8.49

$

Usually ships in 3-6 days

0

31

Troy-Bilt 20504

PIVOT-SLIDE

$

$

Currently unavailable

32

Troy-Bilt 20546

WASHER-#.88X.51X.063 ZP
(Superseded to GW-20546)

$

$

Not available

33

Troy-Bilt 9515

RING-KLIP .500 ZINC

$

$

Currently unavailable

34

Troy-Bilt 9713

BOLT-HH 3/8-16X1.5 FTH ZP

$

$

Currently unavailable

35

Troy-Bilt 9060

BUSHING-.5X.38X.665

$

$

Currently unavailable

36

Troy-Bilt 20719

RODCRANK (Use with P/N 9060 Bushing only)

$

$

Currently unavailable

37

Troy-Bilt 20505

PIVOT-THREADED

$

$

Currently unavailable

38

MTD 20506

PIVOT-ROD

$

$

Not available

39

Troy-Bilt 20544

SPRING-.52 X 3

$

$

Currently unavailable

40

Troy-Bilt 9514

RING-KLIP 5304-25
(Superseded to GW-9514)

$6.99

$

In Stock, only 1 left!

0

41

Troy-Bilt 20554

WASHER # ZP

$

$

Currently unavailable

42

Troy-Bilt 20552

SCR-HH 1/4-20X4.5 G5

$

$

Currently unavailable

43

Troy-Bilt 20513

BUSHING-.54X.38X.08

$

$

Currently unavailable
