50173 - Troy-Bilt Junior II Rear-Tine Tiller (SN: M0008204 - M0067998) HOOD & DEPTH REGULATOR Parts Diagram

Junior II Rear-Tine Tiller

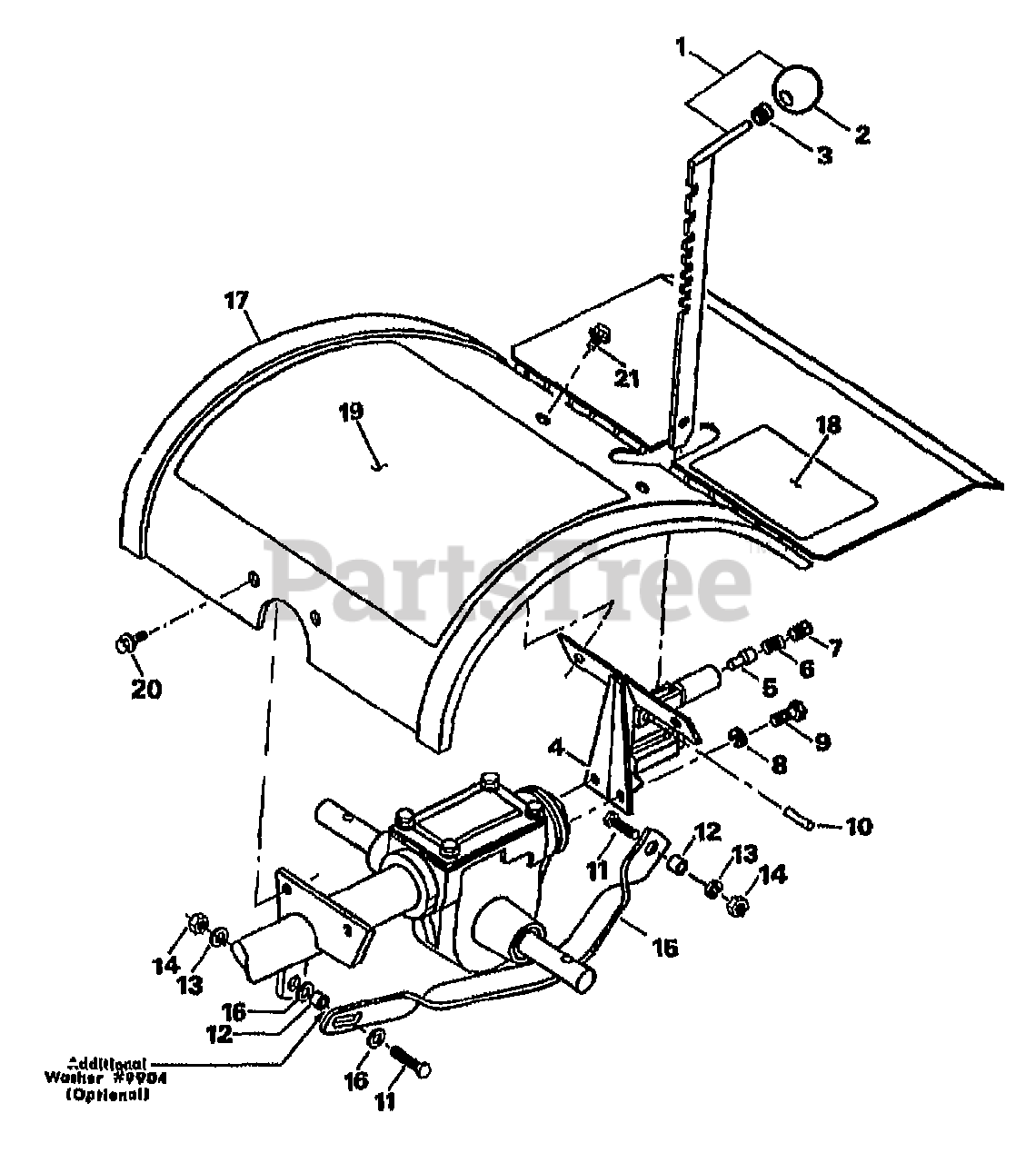

HOOD & DEPTH REGULATOR Parts Diagram

  • Title

1

Troy-Bilt 50185

DEPTH REGULATOR W/KNOB (Inc. 2 & 3)

$

$

Currently unavailable

2

Troy-Bilt 9119

KNOB-CONTROL
(Superseded to GW-9119)

$11.99

$

In Stock, only 3 left!

0

3

Troy-Bilt 9120

RING-TOLERANCE .5325 ID
(Superseded to GW-9120)

$6.99

$

In Stock, only 1 left!

0

4

Troy-Bilt 50120

ASSM-REAR HOOD BRKT - Depth Reg. & Tiller Hood (Inc. 10)

$

$

Currently unavailable

5

Troy-Bilt 1119

PLUNGER - Depth Reg. Locking

$

$

Currently unavailable

6

Troy-Bilt 1120

SPRING .406 X 1.25

$

$

Currently unavailable

7

Troy-Bilt 9726

PLUG-PIPE 1/4 NPT
(Superseded to 1105620)

$4.49

$

In Stock, Qty 5

0

8

Troy-Bilt 9912

WASHER-LK .312 ZP

$

$

Currently unavailable

9

Troy-Bilt 9703

SCR-HHC 5/16-18X.75 GR 5 ZP

$

$

Currently unavailable

10

Troy-Bilt 9339

PIN-SPIROL .188 X .875

$

$

Currently unavailable

11

Troy-Bilt 9712

SCR-HH 3/8-16X1.25

$

$

Currently unavailable

12

Troy-Bilt 1113-1

BUSHING-.5X.375X.3
(Superseded to GW-1113-1099)

$5.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 9913

WASHER-LK .375 @ DEPL

$

$

Currently unavailable

14

Troy-Bilt 9802

NUT-HEX 3/8-16 ZP

$

$

Currently unavailable

15

Troy-Bilt 50189

BAR-DRAG

$

$

Currently unavailable

16

Troy-Bilt 9904

WASHER-FLAT 3/8 SAE
(Superseded to 736-3050)

$4.49

$

In Stock, Qty 20+

0

17

Troy-Bilt 50182

ASSM-HOOD W/DECALS (Inc. 18-21)

$

$

Currently unavailable

18

Troy-Bilt 50098

DECAL-TB JR LOGO

$

$

Currently unavailable

19

Troy-Bilt 50193

DECAL-OPER INST (Operating Instructions)

$

$

Currently unavailable

20

Troy-Bilt 9553

SCR-HWH 5/16-18 X .5 STH
(Superseded to 710-0607)

$6.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 9552

SCR-HWH 1/4-20 X .5 STH
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

Troy-Bilt 9904

WASHER-FLAT 3/8 SAE
(Superseded to 736-3050)

$4.49

$

In Stock, Qty 20+

0
