5018 - Troy-Bilt Trailblazer III Sicklebar Mower (SN: P103609 - P105740) Cutter Bar Parts Diagram

Trailblazer III Sicklebar Mower

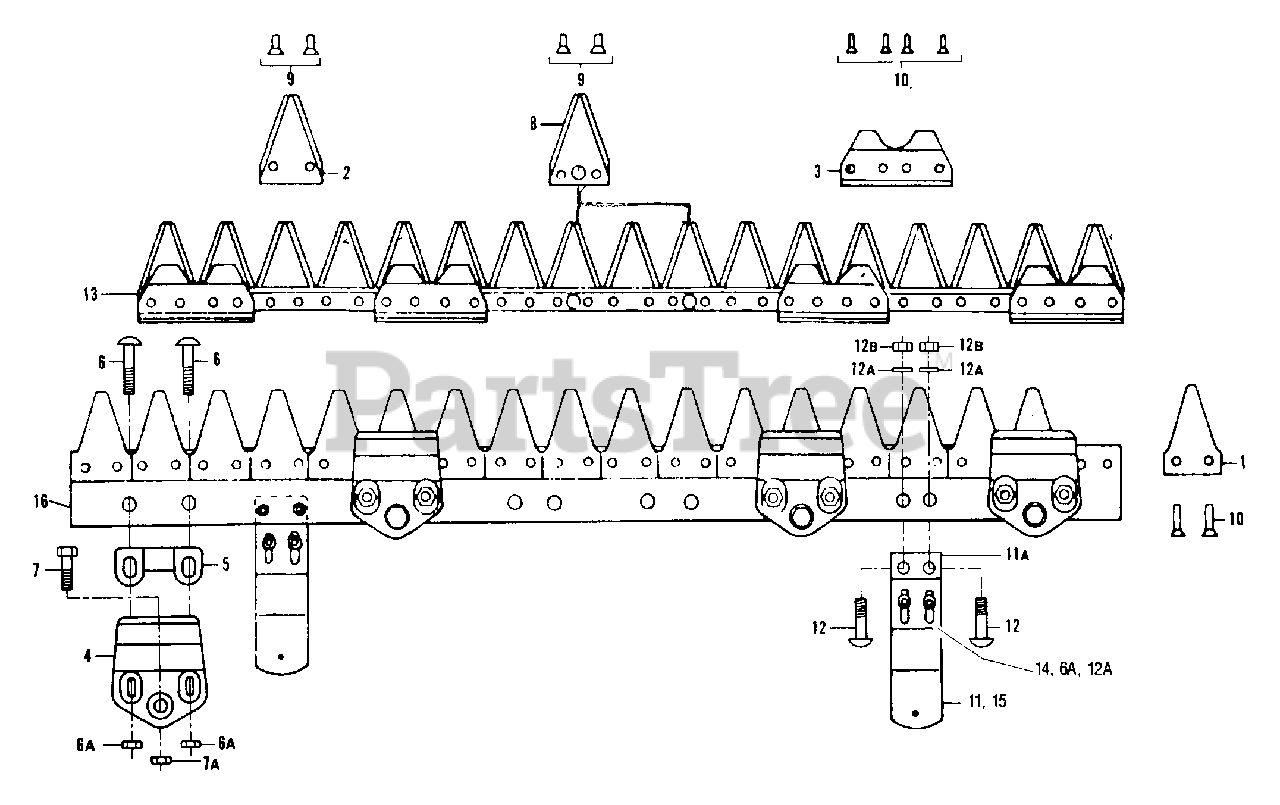

Cutter Bar Parts Diagram

  • Title

1

MTD GW-P406655

Blade Section

$

$

Not available

2

MTD GW-P406657

Blade Section - 2 Holes

$

$

Not available

3

Troy-Bilt GW-P406659

Wear Plate

$

$

Not available

4

Troy-Bilt GW-P406654

Blade Guide

$58.99

$

In Stock, Qty 6

0

5

Troy-Bilt GW-P406656

Plate

$

$

Not available

6

MTD GW-P406931

Bolt M8 x 40 RH SQNK

$

$

Not available

6A

Troy-Bilt GW-P406904

Nut
(Superseded to 712-3077)

$

$

Not available

7

Troy-Bilt GW-P406915

Bolt HHM8 x 30
(Superseded to 710-1683)

$

$

Not available

7A

Troy-Bilt GW-P406930

Nut

$

$

Not available

8

MTD GW-P406658

Blade Sections - 3 Holes

$

$

Not available

9

Troy-Bilt GW-P404962

Rivets CS90 5.3 x 14
(Superseded to GW-P404962099)

$3.49

$

In Stock, only 1 left!

0

10

MTD GW-P404964

Rivets CS90 5.3 x 16

$

$

Not available

11

Troy-Bilt GW-P406935

Height Adjusters (Bottom Half)

$

$

Currently unavailable

11A

Troy-Bilt GW-P406934

Height Adjusters (Top Half)

$

$

Currently unavailable

12

MTD GW-P406905

Bolt M8 x 30 RH SQNK

$

$

Not available

12A

Troy-Bilt GW-P406745

Washer
(Superseded to 736-0567)

$3.49

$

Usually ships in 3-6 days

0

12B

MTD GW-P406906

Nut

$

$

Not available

13

Troy-Bilt GW-P406663

Complete Cutter Blade Assembly

$

$

Currently unavailable

14

Troy-Bilt GW-P406757

Screw M8 x 25 HH
(Superseded to GW-P406965)

$

$

Not available

15

Troy-Bilt GW-P406673

Height Adjuster Assembly

$

$

Currently unavailable

16

Troy-Bilt GW-P406949

Bar Ledger
(Superseded to GW-P406950)

$

$

Not available

MTD GW-P406732

Blade Maintenance Kit

Note: (Contains Ref. No.'s 2, 8, 9 and 10)

$

$

Not available
