5018 - Troy-Bilt Trailblazer VI Sicklebar Mower (SN: P012181 - P129480) Labels Parts Diagram

Trailblazer VI Sicklebar Mower

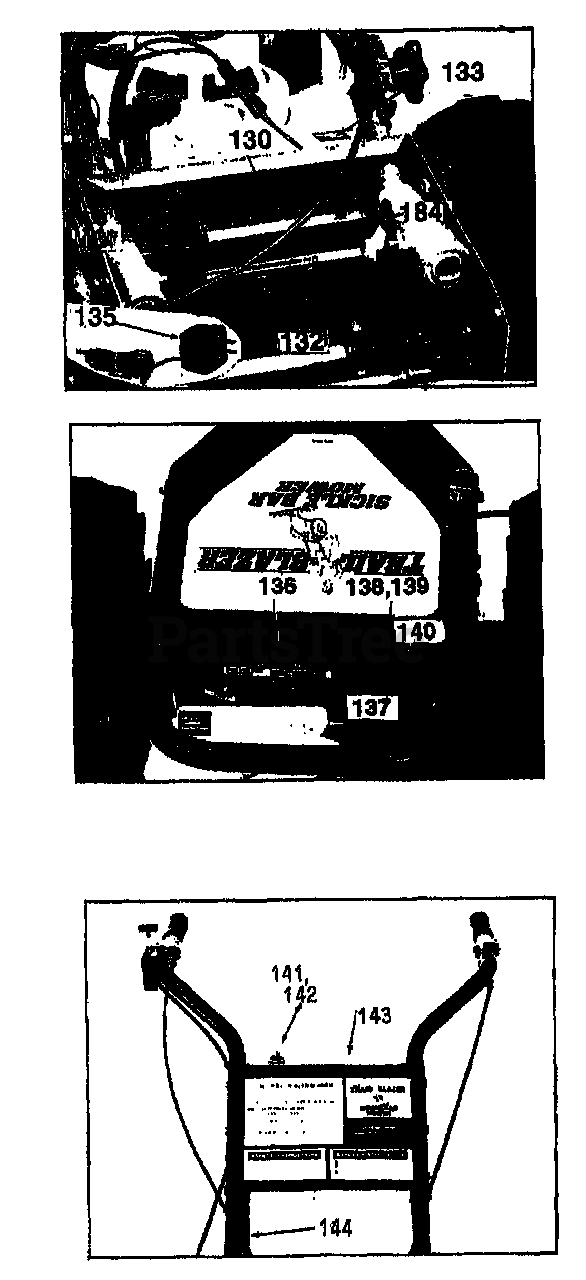

Labels Parts Diagram

  • Title

130

Troy-Bilt GW-11403

Battery, with leads
(Superseded to GW-96508099)

$

$

Not available

132

Troy-Bilt GW-90037

Bolt, 6MMx110MM, Class 8.8 (2 required)

$

$

Currently unavailable

133

MTD GW-11430

Decal, Battery Charging Instructions

$

$

Not available

135

MTD GW-11402

Charger, Battery

$

$

Not available

136

MTD GW-11432

Decal, Battery Short Circuit Caution

$

$

Not available

137

Troy-Bilt GW-92009

Locknut, 6MM Nylon (2 required)

$

$

Currently unavailable

138

MTD GW-P406546

Bolt, 5MM, Attaches Battery Clamp to Rear Frame Hood (2 required)

$

$

Not available

139

Troy-Bilt GW-94012

Lockwasher, 5MM (2 required)

$

$

Currently unavailable

140

MTD GW-P406545

Clamp, Battery Cable

$

$

Not available

141

Troy-Bilt GW-11405

Keyswitch-
(Superseded to 1900455P)

Note: Includes, Washer, Nut, and 2 Keys

$

$

Not available

142

Troy-Bilt GW-P406543

Keys, One Pair
(Superseded to 925-0201)

$9.49

$

In Stock, Qty 11

0

143

MTD GW-11431

Decal, Electric Start Control Panel

$

$

Not available

144

MTD GW-11404

Wiring Harness, Keyswitch to Battery

$

$

Not available
