502 s - Shindaiwa Chainsaw Chain Break Parts Diagram

Chainsaw

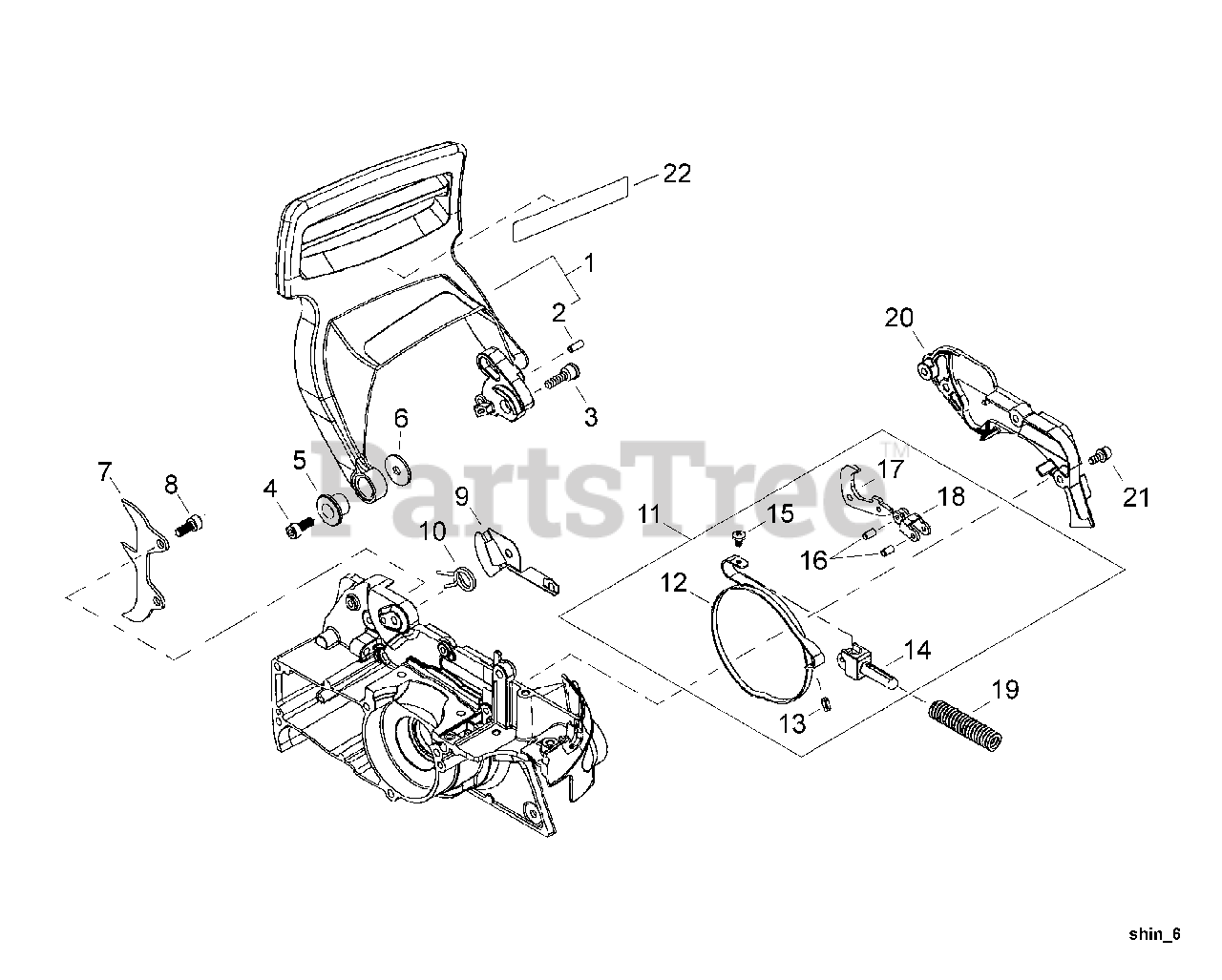

Chain Break Parts Diagram

  • Title

1

Echo 39311-54364

BRAKE LEVER KIT
(Superseded to P021026930)

Note: Includes ITEM 2

$26.99

$

In Stock, only 1 left!

0

2

Echo 12492-40080

PIN - LOCATING
(Superseded to V622000040)

$0.99

$

In Stock, Qty 20+

0

3

Echo 39311-54381

BOLT - 4X38
(Superseded to V203001470)

$1.99

$

Usually ships in 2-4 days

0

4

Echo 11060-05183

SCREW - 5X18
(Superseded to V203001540)

$1.49

$

In Stock, only 3 left!

0

5

Echo 15401-10121

COLLAR
(Superseded to V356000580)

$2.49

$

Usually ships in 2-4 days

0

6

Echo 22169-54670

WASHER
(Superseded to V303000320)

$0.99

$

Usually ships in 2-4 days

0

7

Echo 39311-52140

SPIKE
(Superseded to C304000130)

$19.99

$

Usually ships in 2-4 days

0

8

Echo 90010505012

SCREW - 5X12

$1.49

$

In Stock, Qty 20+

0

9

Echo 39311-54350

PLATE
(Superseded to C347000010)

$4.49

$

Usually ships in 2-4 days

0

10

Echo 17520-15400

SPRING
(Superseded to V452000860)

$4.49

$

In Stock, only 1 left!

0

11

Echo 39311-54310

BRAKE BAND ASSY
(Superseded to C328000210)

Note: Includes ITEMS 12-18

$64.99

$

Usually ships in 2-4 days

0

12

Echo 39311-54110

BAND, BRAKE
(Superseded to C328000220)

$25.99

$

Usually ships in 2-4 days

0

13

Echo 02427-40105

PIN - SPRING -- 4X8
(Superseded to 9304240100)

$0.99

$

Usually ships in 2-4 days

0

14

Echo 39311-54320

HOLDER, BRAKE SPRING
(Superseded to C334000180)

$2.99

$

Usually ships in 2-4 days

0

15

Echo 01270-04103

SCREW - 4X10 -- TAPPING
(Superseded to 9138104010)

$0.99

$

Usually ships in 2-4 days

0

16

Echo 12492-30110

TIE, CABLE - 3X11.8
(Superseded to V629000010)

$0.99

$

Usually ships in 2-4 days

0

17

Echo 39311-54330

LEVER, BRAKE
(Superseded to C334000190)

$12.99

$

In Stock, only 1 left!

0

18

Echo 39311-54340

TIE, CABLE
(Superseded to C334000200)

$5.99

$

In Stock, only 1 left!

0

19

Echo 1750012300

SPRING, BRAKE
(Superseded to V450001160)

$4.99

$

Usually ships in 2-4 days

0

20

Echo 39311-54130

COVER, BRAKE
(Superseded to C345000581)

$6.49

$

Usually ships in 2-4 days

0

21

Echo 11060-04100

SCREW - 4X10
(Superseded to V202000490)

$0.99

$

Usually ships in 2-4 days

0

22

Echo 19402-00347

LABEL - CAUTION
(Superseded to X505006230)

$6.99

$

Usually ships in 2-4 days

0
