502 s - Shindaiwa Chainsaw Clutch, Oil System Parts Diagram

Chainsaw

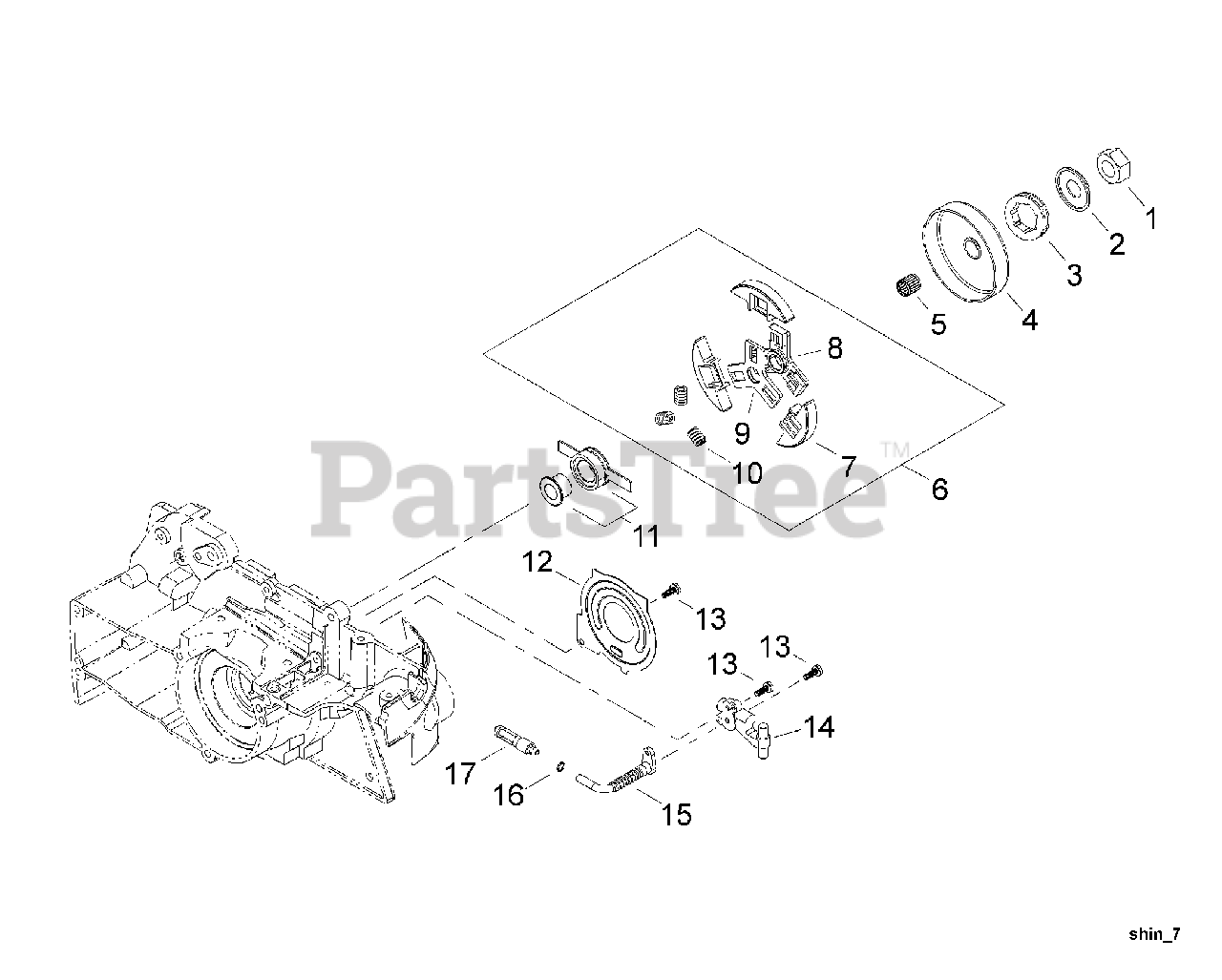

Clutch, Oil System Parts Diagram

  • Title

1

Echo 11500-08001

NUT - 10
(Superseded to V265000210)

$3.49

$

In Stock, only 1 left!

0

2

Echo 39311-51320

COLLAR
(Superseded to V307000320)

$3.99

$

Usually ships in 2-4 days

0

3

Echo 22131-98120

SPROCKET, RIM
(Superseded to 17511412530)

$18.99

$

In Stock, Qty 20+

0

4

Echo 39311-51110

DRUM, CLUTCH
(Superseded to A556001120)

$47.99

$

In Stock, Qty 9

0

5

Echo 22100-51310

BEARING, NEEDLE
(Superseded to V555000150)

$13.99

$

In Stock, Qty 20+

0

6

Echo 39311-51020

CLUTCH ASSY
(Superseded to A056000610)

Note: INCLUDES ITEMS 7-10

$54.99

$

In Stock, only 2 left!

0

7

Echo 39311-51120

SHOE, CLUTCH
(Superseded to A555000210)

$7.99

$

Usually ships in 2-4 days

0

8

Echo 22182-51241

HUB, CLUTCH - OUTER
(Superseded to A552000240)

$9.49

$

Usually ships in 2-4 days

0

9

Echo 39311-51130

HUB, CLUTCH - INNER
(Superseded to A552000230)

$11.99

$

Usually ships in 2-4 days

0

10

Echo 22197-51230

SPRING, CLUTCH
(Superseded to V451000930)

$1.99

$

In Stock, Qty 13

0

11

Echo 22197-55111

GEAR ASSY
(Superseded to P021023110)

$25.99

$

In Stock, only 1 left!

0

12

Echo 39311-55231

COVER, PUMP
(Superseded to C236000060)

$3.49

$

Usually ships in 2-4 days

0

13

Echo 11060-04141

SCREW - 4X14
(Superseded to V202000520)

$1.99

$

Usually ships in 2-4 days

0

14

Echo C022000120

AUTO-OILER ASSY
(Superseded to C022000121)

$63.99

$

In Stock, only 3 left!

0

15

Echo 22182-55311

PIPE - OIL
(Superseded to V470001510)

$6.99

$

Usually ships in 2-4 days

0

16

Echo 20020-85540

RING, RETAINING - 6
(Superseded to V490000500)

$0.99

$

In Stock, Qty 20+

0

17

Echo 22182-55330

FILTER, OIL
(Superseded to C209000070)

$6.99

$

Usually ships in 2-4 days

0
