502 s - Shindaiwa Chainsaw Crankase M Parts Diagram

Chainsaw

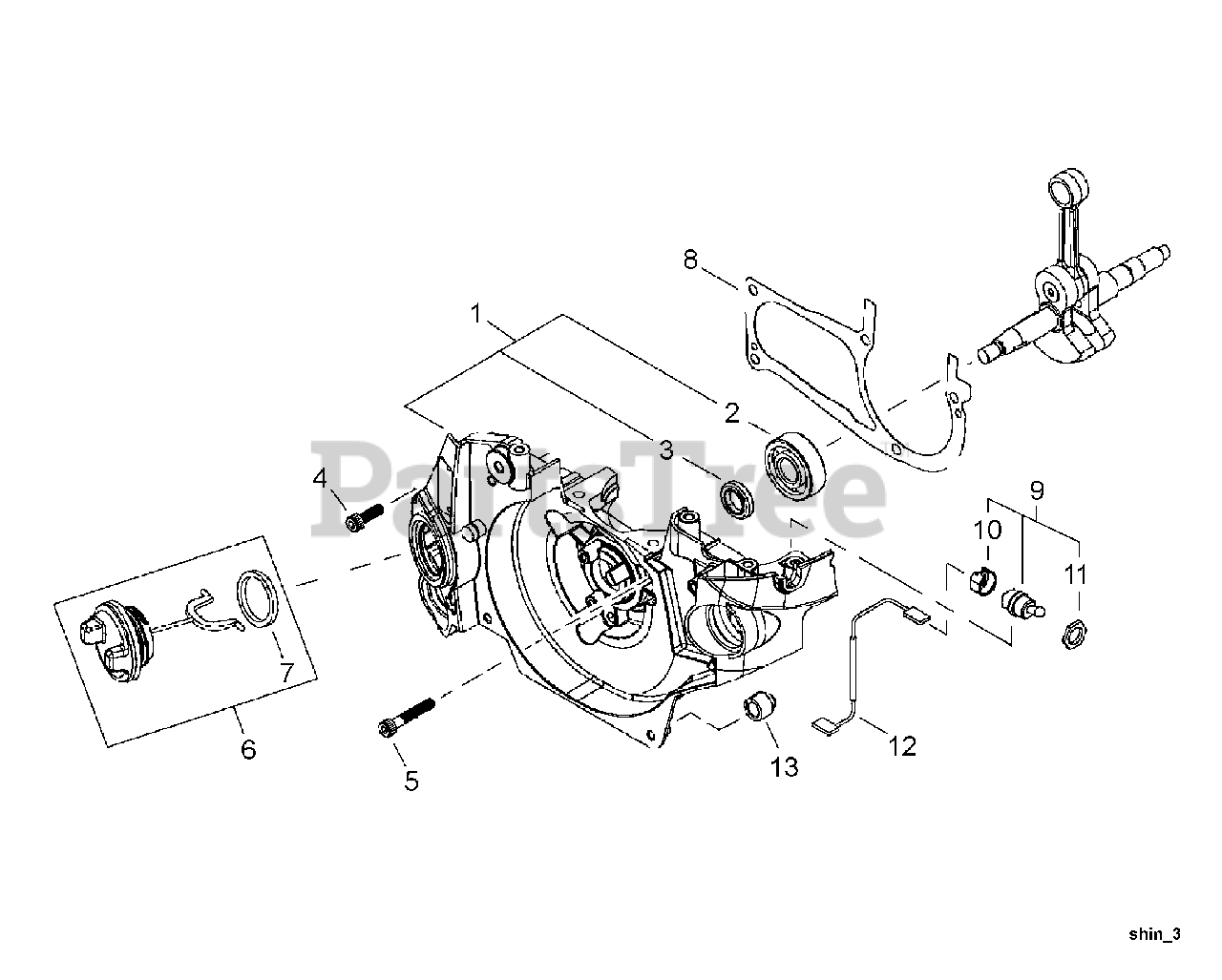

Crankase M Parts Diagram

  • Title

1

Echo 69033-21011

CRANKCASE ASSY - FRONT
(Superseded to P021029890)

Note: INCLUDES ITEMS 2-3

$126.99

$

Usually ships in 2-4 days

0

2

Echo 12900-62010

BEARING, BALL - 6201C3
(Superseded to V592000110)

$9.99

$

Usually ships in 2-4 days

0

3

Echo 37013-21120

SEAL, OIL - 12
(Superseded to V505000070)

$6.99

$

In Stock, only 2 left!

0

4

Echo 11060-05183

SCREW - 5X18
(Superseded to V203001540)

$1.49

$

In Stock, only 1 left!

0

5

Echo 22169-21910

BOLT - 5X35
(Superseded to V203001450)

$1.99

$

Usually ships in 2-4 days

0

6

Echo 39311-21030

CAP ASSY
(Superseded to C020000040)

Note: Includes ITEM 7

$11.99

$

In Stock, Qty 15

0

7

Echo 38010-32271

GASKET, CAP
(Superseded to V107000090)

$4.99

$

In Stock, only 1 left!

0

8

Echo V102000190

GASKET, CRANKCASE

$3.49

$

Usually ships in 2-4 days

0

9

Echo 39311-21370

IGNITION SWITCH ASSY
(Superseded to P021034590)

Note: Includes ITEMS 10-11

$17.99

$

In Stock, only 1 left!

0

10

Echo 39311-21380

CAP

$

$

Not available

11

Echo 22154-22130

NUT
(Superseded to V266000090)

$1.49

$

In Stock, only 1 left!

0

12

Echo 14352-01300

LEAD - IGNITION
(Superseded to V485002030)

$3.49

$

In Stock, only 1 left!

0

13

Echo 39311-33330

SUPPORT
(Superseded to V420002780)

$1.49

$

In Stock, Qty 10

0
