502 s - Shindaiwa Chainsaw Cylinder, Exhaust Parts Diagram

Chainsaw

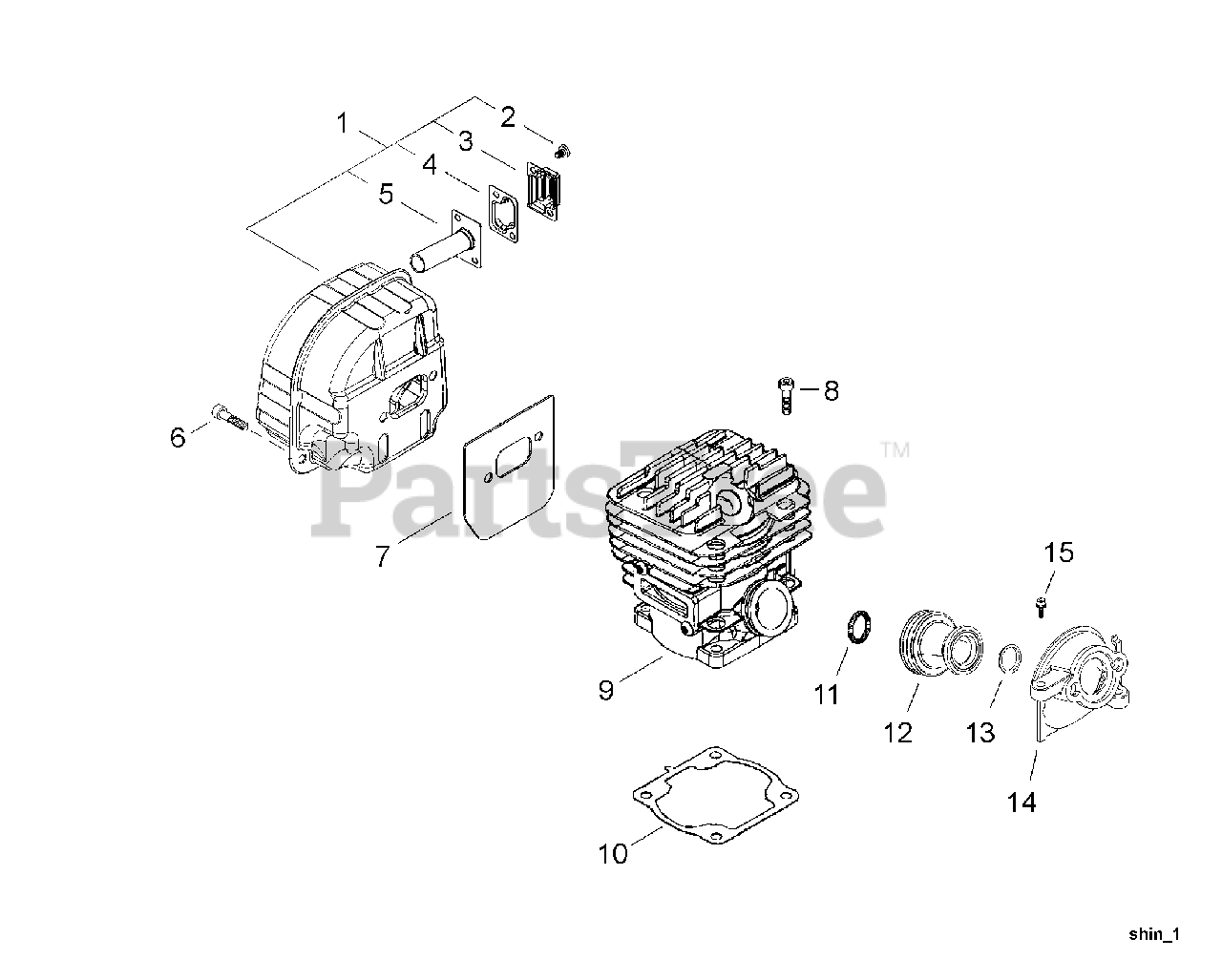

Cylinder, Exhaust Parts Diagram

  • Title

1

Echo 69028-15311

MUFFLER ASSY
(Superseded to A030000520)

Note: INCLUDES ITEMS 2-5

$50.99

$

Usually ships in 2-4 days

0

2

Echo 11203-04060

SCREW - 4X6
(Superseded to 9157804006)

$0.99

$

In Stock, Qty 20+

0

3

Echo 69028-15320

GUIDE, EXHAUST
(Superseded to A313001560)

$4.99

$

Usually ships in 2-4 days

0

4

Echo 72311-15190

SCREEN, SPARK ARRESTOR
(Superseded to A310000300)

$2.99

$

In Stock, only 2 left!

0

5

Echo 22197-15130

GUIDE, EXHAUST
(Superseded to A313001530)

$15.99

$

Usually ships in 2-4 days

0

6

Echo 11060-05183

SCREW - 5X18
(Superseded to V203001540)

$1.49

$

In Stock, only 3 left!

0

7

Echo 39311-15210

SHIELD, EXHAUST
(Superseded to V104001580)

$3.99

$

Usually ships in 2-4 days

0

8

Echo 11060-05183

SCREW - 5X18
(Superseded to V203001540)

$1.49

$

In Stock, only 3 left!

0

9

Echo 69033-12010

CYLINDER ASSY
(Superseded to A130001650)

$209.99

$

Usually ships in 2-4 days

0

10

Echo 69033-12120

GASKET, CYLINDER
(Superseded to V100000620)

$0.99

$

Usually ships in 2-4 days

0

11

Echo 22160-12160

SPRING
(Superseded to 22182-12160)

$1.99

$

Usually ships in 2-4 days

0

12

Echo 39311-12210

BOOT, INTAKE
(Superseded to A202000150)

$11.99

$

In Stock, only 1 left!

0

13

Echo 22156-14140

SLEEVE
(Superseded to V359000200)

$2.49

$

Usually ships in 2-4 days

0

14

Echo 39311-12220

BRACKET, INTAKE
(Superseded to A200000852)

$6.49

$

Usually ships in 2-4 days

0

15

Echo 11060-04163

SCREW - 4X16
(Superseded to V202000200)

$1.99

$

In Stock, Qty 20+

0
