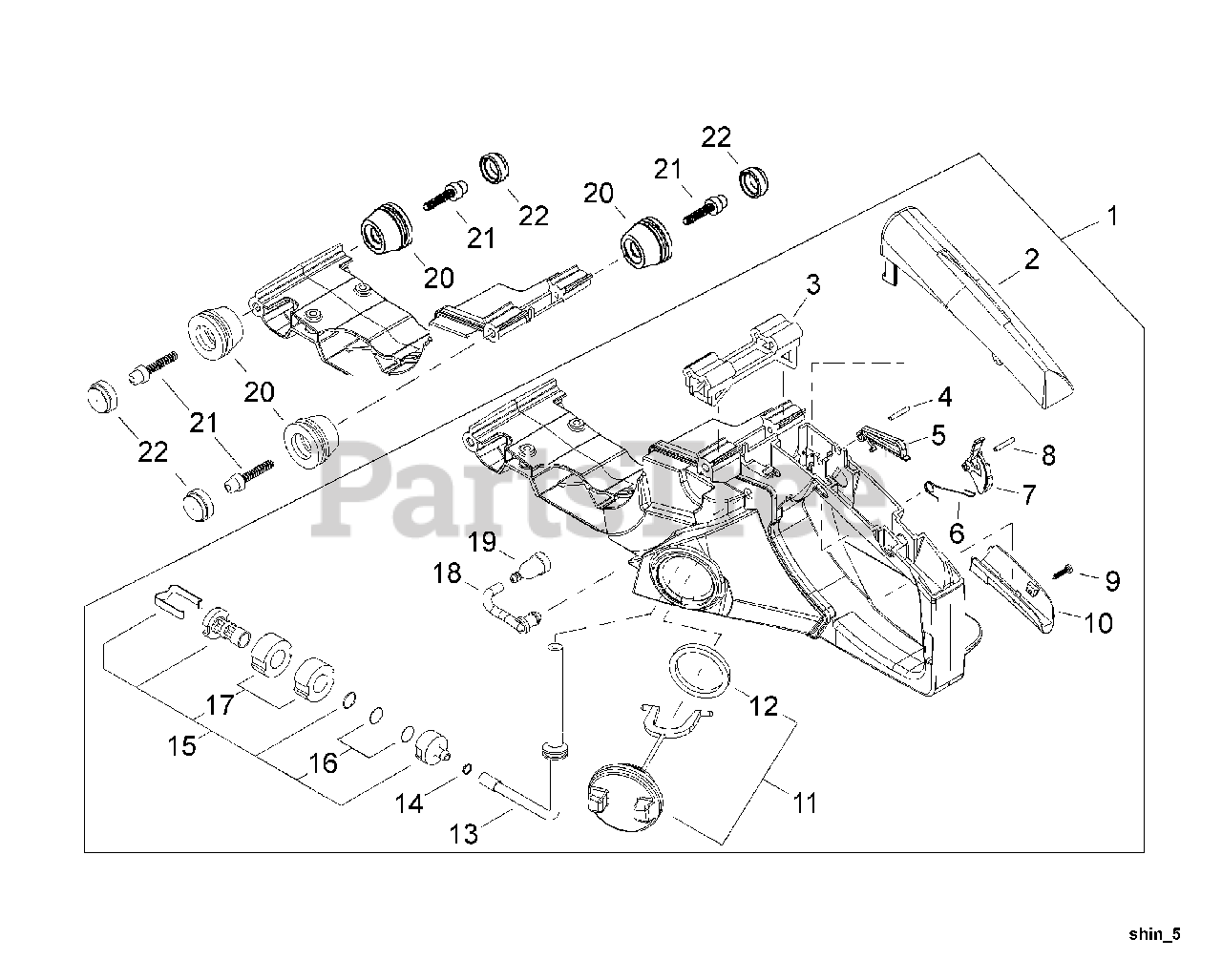

Fuel System, Rear Handle Parts Diagram

  • Title

1

Echo C041000420

HANDLE ASSY - REAR
(Superseded to P021040400)

Note: INCLUDES ITEMS 2-19

$166.99

$

Usually ships in 2-4 days

0

2

Echo 39311-32330

GRIP - UPPER
(Superseded to C411000130)

$10.99

$

Usually ships in 2-4 days

0

3

Echo 39311-32370

CUSHION
(Superseded to V420002810)

$9.49

$

Usually ships in 2-4 days

0

4

Echo 02427-40225

PIN
(Superseded to 9304240220)

$1.49

$

In Stock, only 2 left!

0

5

Echo C460000310

LEVER, TRIGGER LOCKOUT

$2.49

$

Usually ships in 2-4 days

0

6

Echo 22182-33340

SPRING, LEVER
(Superseded to V452000850)

$2.99

$

In Stock, Qty 7

0

7

Echo 22182-33326

TRIGGER, THROTTLE
(Superseded to C450000640)

$4.99

$

In Stock, only 3 left!

0

8

Echo 1242040255

PIN - 4X25
(Superseded to 9306040250)

$1.49

$

In Stock, only 2 left!

0

9

Echo 01280-04222

SCREW - 4X22 -- TAPPING
(Superseded to 9144904022)

$1.49

$

In Stock, Qty 10

0

10

Echo 22182-33230

GRIP - LOWER
(Superseded to C403000530)

$17.99

$

In Stock, only 2 left!

0

11

Echo 39309-32040

CAP ASSY
(Superseded to A033000220)

Note: Includes ITEM 12

$10.99

$

In Stock, only 2 left!

0

12

Echo 39309-32270

GASKET, CAP
(Superseded to V107000070)

$6.99

$

Usually ships in 2-4 days

0

13

Echo 39309-32340

PIPE - FUEL
(Superseded to V470001520)

$6.99

$

In Stock, only 1 left!

0

14

Echo 20020-85540

RING, RETAINING - 6
(Superseded to V490000500)

$1.49

$

In Stock, Qty 20+

0

15

Echo 22115-85401

FILTER, FUEL
(Superseded to 13120519831)

Note: Includes ITEMS 16-17

$9.99

$

In Stock, Qty 20+

0

16

Echo 22118-85460

SCREEN, FILTER
(Superseded to A371000010)

$9.99

$

In Stock, Qty 20+

0

17

Echo 22128-85421

FILTER, FUEL
(Superseded to A371000000)

$2.99

$

In Stock, Qty 12

0

18

Echo 39311-32341

PIPE - VENT
(Superseded to V470001530)

$2.99

$

In Stock, only 3 left!

0

19

Echo 22197-33960

ELEMENT, BREATHER
(Superseded to A356000050)

$10.99

$

In Stock, Qty 7

0

20

Echo 39311-33310

CUSHION
(Superseded to V401000340)

$5.99

$

In Stock, Qty 7

0

21

Echo 22160-33770

BOLT
(Superseded to V203001480)

$3.49

$

In Stock, only 3 left!

0

22

Echo 39311-33320

PLUG
(Superseded to V421000040)

$2.99

$

In Stock, Qty 5
