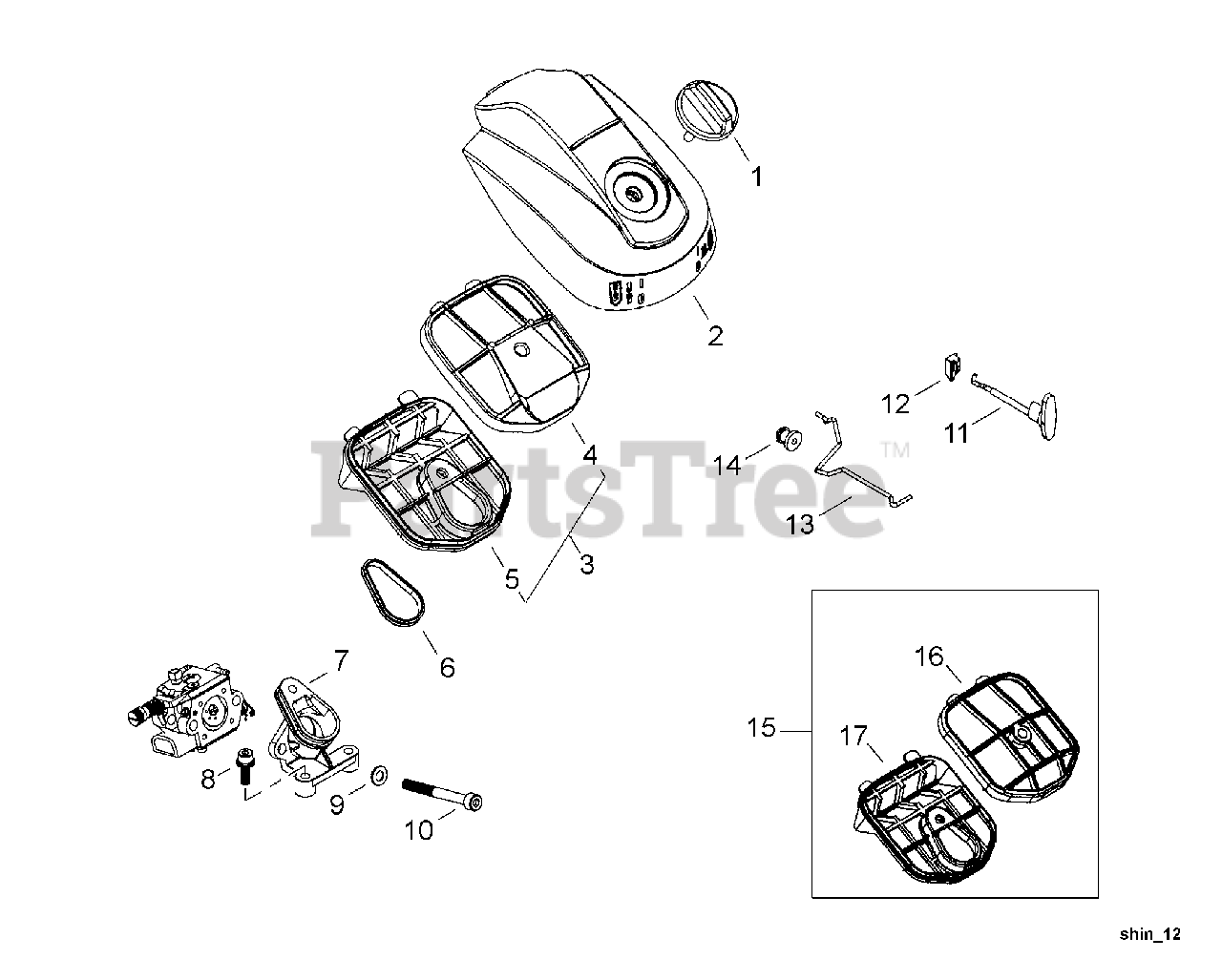

502 s - Shindaiwa Chainsaw Intake Parts Diagram

Chainsaw

Intake Parts Diagram

  • Title

1

Echo A235000270

THUMBSCREW

$6.49

$

In Stock, Qty 14

0

2

Echo 39311-82131

COVER, AIR FILTER
(Superseded to A232001140)

$11.99

$

Usually ships in 2-4 days

0

3

Echo 39311-82311

AIR FILTER ASSY
(Superseded to A226001040)

Note: INCLUDES ITEMS 4-5

$12.99

$

Usually ships in 2-4 days

0

4

Echo 39311-82321

FILTER, AIR - UPPER -- MESH
(Superseded to A226001010)

$13.99

$

Usually ships in 2-4 days

0

5

Echo 39311-82331

AIR FILTER - LOWER
(Superseded to A226001020)

$14.99

$

Usually ships in 2-4 days

0

6

Echo 39311-82370

GASKET
(Superseded to V581000280)

$1.49

$

In Stock, Qty 13

0

7

Echo 39311-82360

ADAPTER, AIR FILTER
(Superseded to A204000130)

$4.99

$

Usually ships in 2-4 days

0

8

Echo 11060-04163

SCREW - 4X16
(Superseded to V202000200)

$1.99

$

In Stock, Qty 20+

0

9

Echo 01610-05080

WASHER - 5
(Superseded to 90060000005)

$0.99

$

In Stock, Qty 20+

0

10

Echo 01020-05480

SCREW - 5X48
(Superseded to 9110005048)

$0.99

$

In Stock, only 1 left!

0

11

Echo 39311-83310

ROD, CHOKE
(Superseded to A240000110)

$4.49

$

Usually ships in 2-4 days

0

12

Echo 39311-83320

GROMMET

$0.99

$

Usually ships in 2-4 days

0

13

Echo 39311-83330

ROD, THROTTLE
(Superseded to C454000280)

$3.99

$

In Stock, only 1 left!

0

14

Echo 38010-83330

GROMMET
(Superseded to V133000040)

$8.49

$

In Stock, only 1 left!

0

15

Echo 39223-98520

AIR FILTER KIT
(Superseded to A027000140)

Note: Includes ITEMS 16-17

$20.99

$

Usually ships in 2-4 days

0

16

Echo 39223-98341

FILTER, AIR - UPPER -- FLOCKED
(Superseded to A226001100)

$13.99

$

In Stock, only 1 left!

0

17

Echo 39223-98351

FILTER, AIR - LOWER -- FLOCKED
(Superseded to A226001110)

$13.99

$

Usually ships in 2-4 days

0
