502 s - Shindaiwa Chainsaw Piston, Crankshaft Parts Diagram

Chainsaw

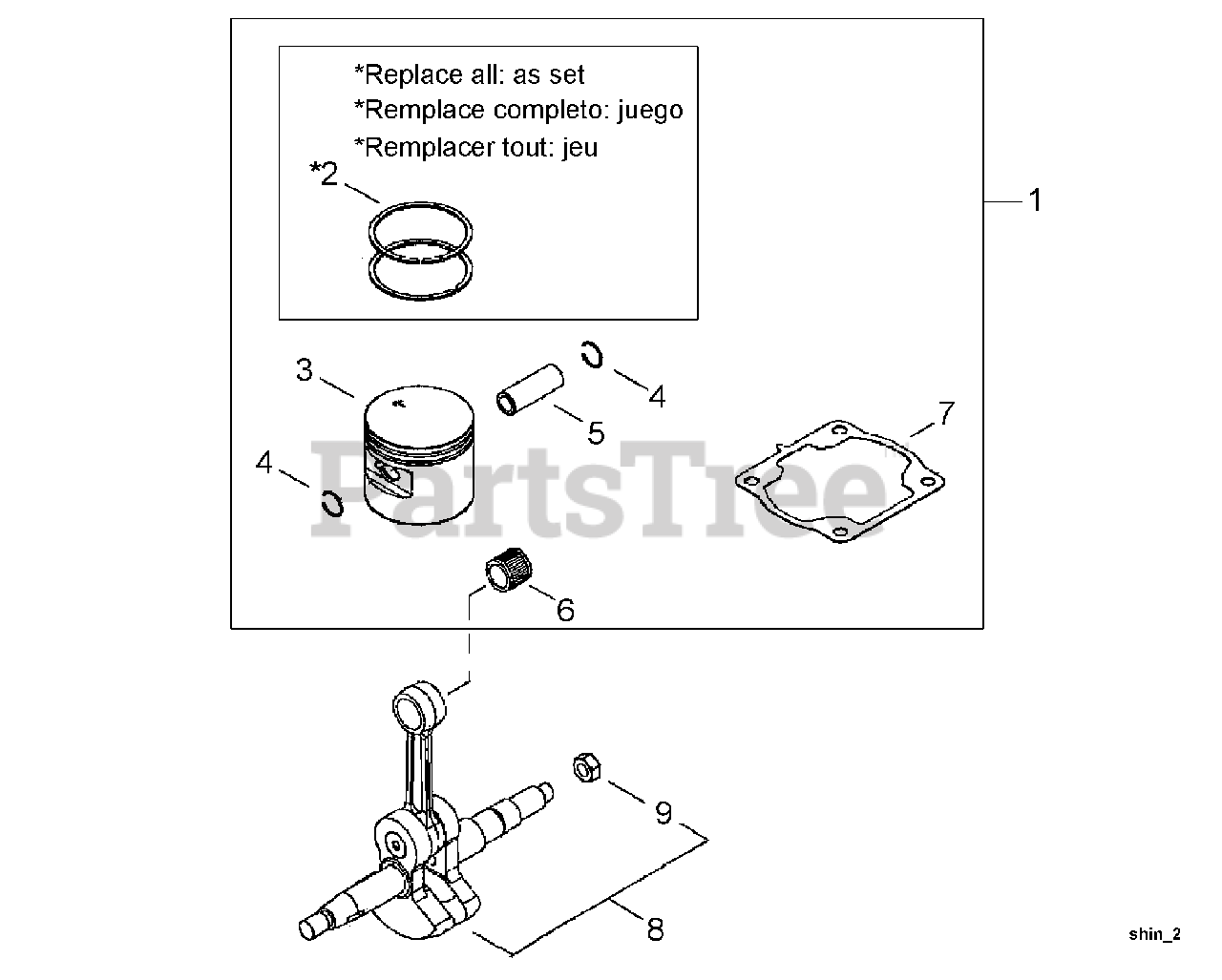

Piston, Crankshaft Parts Diagram

  • Title

1

Echo P021034610

PISTON KIT

Note: INCLUDES ITEMS 2-7

$89.99

$

Usually ships in 2-4 days

0

2

Echo 69033-41120

RING, PISTON
(Superseded to A101000540)

$8.49

$

Usually ships in 2-4 days

0

3

Echo 69033-41110

PISTON

$

$

Currently unavailable

4

Echo 22100-41230

RING, RETAINING
(Superseded to V580000110)

$1.49

$

In Stock, Qty 10

0

5

Echo 22157-41220

PIN, PISTON
(Superseded to V608000060)

$5.49

$

Usually ships in 2-4 days

0

6

Echo 22160-41240

BEARING, NEEDLE
(Superseded to V555000140)

$9.49

$

In Stock, Qty 5

0

7

Echo 69033-12120

GASKET, CYLINDER
(Superseded to V100000620)

$1.49

$

In Stock, Qty 7

0

8

Echo 39223-98391

CRANKSHAFT ASSY

Note: Includes ITEM 9

$

$

Currently unavailable

9

Echo 11500-08001

NUT - 10
(Superseded to V265000210)

$3.99

$

In Stock, only 3 left!

0
