50204 - Troy-Bilt Junior II Rear-Tine Tiller (SN: M0008204 - M0067998) SHIFT, WHEELS & BELT SHROUDS Parts Diagram

Junior II Rear-Tine Tiller

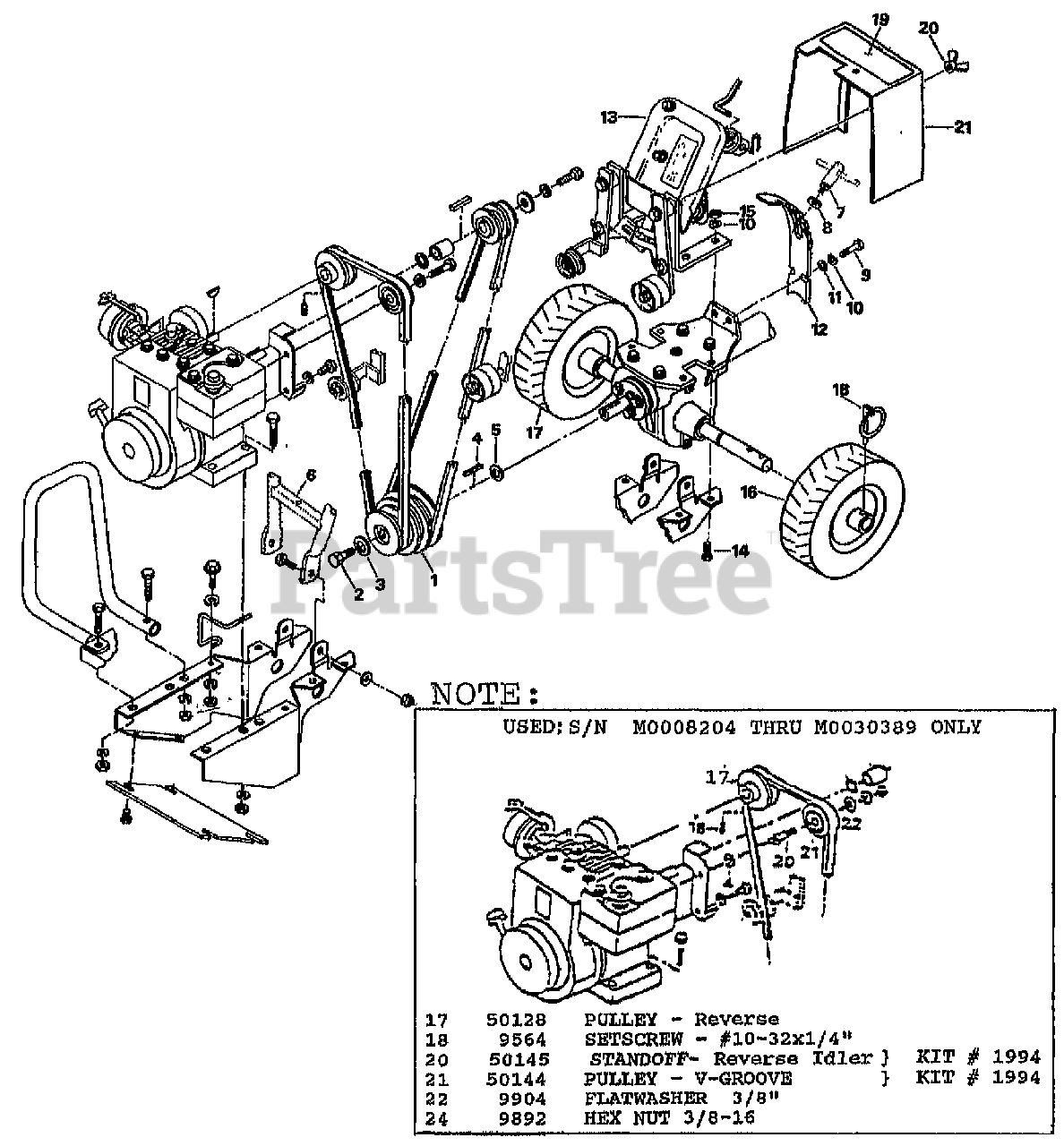

SHIFT, WHEELS & BELT SHROUDS Parts Diagram

  • Title

1

MTD 50140

PULLEY-TRANS MACH
(Superseded to 690-120-0086)

$32.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 9655

SCR-HH 5/16-24X.75 G5 ZP
(Superseded to 710-0157)

$4.49

$

In Stock, only 3 left!

0

3

Troy-Bilt 9944

WASHER-.827X.331X.098
(Superseded to 736-04193)

$7.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 9301

KEY-.188 SQX1.0
(Superseded to GW-9301099)

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 50027

WASHER-SHLDR HARDENED
(Superseded to GW-50027)

$7.49

$

In Stock, Qty 7

0

6

Troy-Bilt 50181

ASSM-HANDLEBAR

$

$

Currently unavailable

7

Troy-Bilt 50062

ASSM-CLAMP

$

$

Currently unavailable

8

Troy-Bilt 9904

WASHER-FLAT 3/8 SAE
(Superseded to 736-3050)

$4.49

$

In Stock, Qty 9

0

9

Troy-Bilt 9703

SCR-HHC 5/16-18X.75 GR 5 ZP

$

$

Currently unavailable

10

Troy-Bilt 9912

WASHER-LK .312 ZP

$

$

Currently unavailable

11

Troy-Bilt 9902

WASHER-FLAT 5/16 SAE

$

$

Currently unavailable

12

Troy-Bilt 50152

PLATE-HANDLEBAR ADJUST (Handlebar)

$

$

Currently unavailable

13

Troy-Bilt 50166

ASSM-SHIFT MECHANISM

$

$

Currently unavailable

14

Troy-Bilt 9574

SCR-HH 5/16-18X1.25 G5ZP

$

$

Currently unavailable

10

Troy-Bilt 9912

WASHER-LK .312 ZP

$

$

Currently unavailable

15

Troy-Bilt 9801

NUT-HEX 5/16-18 ZP

$

$

Currently unavailable

16

Troy-Bilt 50045-01

ASSM-TIRE&WHL LH GRAY

$

$

Currently unavailable

17

Troy-Bilt 50045-02

ASSM-TIRE&WHL RH GRAY

$

$

Currently unavailable

17

Troy-Bilt 50128

PULLEY-REVERSE MACH

$

$

Currently unavailable

18

Troy-Bilt 9355

PIN-QUICK RELEASE ZP

$

$

Currently unavailable

18

Troy-Bilt 9564

SCR M10-32X.25

$

$

Currently unavailable

19

Troy-Bilt 50167

DECAL-BELT POSITION

$

$

Currently unavailable

19

Troy-Bilt 20649

DECAL-BELT POSITION

$

$

Currently unavailable

20

Troy-Bilt 9824

NUT-WING/LK 5/16-18 ZP
(Superseded to GW-9824)

$5.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 50145

STANDOFF 3/8-16 X 1.88 (Kit #1994)

$

$

Currently unavailable

21

Troy-Bilt 50184

BELT SHROUD W/DECAL-JR.2

$

$

Currently unavailable

21

Troy-Bilt 50144

KIT-REVERSE IDLER-JR2 (Kit #1994)

$

$

Currently unavailable

22

Troy-Bilt 9904

WASHER-FLAT 3/8 SAE
(Superseded to 736-3050)

$4.49

$

In Stock, Qty 9

0

?24

Troy-Bilt 9892

HEX NUT 3/8-16"

$

$

Currently unavailable
