5021 E (531309639) - Husqvarna 21" Snow Blower (2007-07) Handle Assembly Parts Diagram

21" Snow Blower

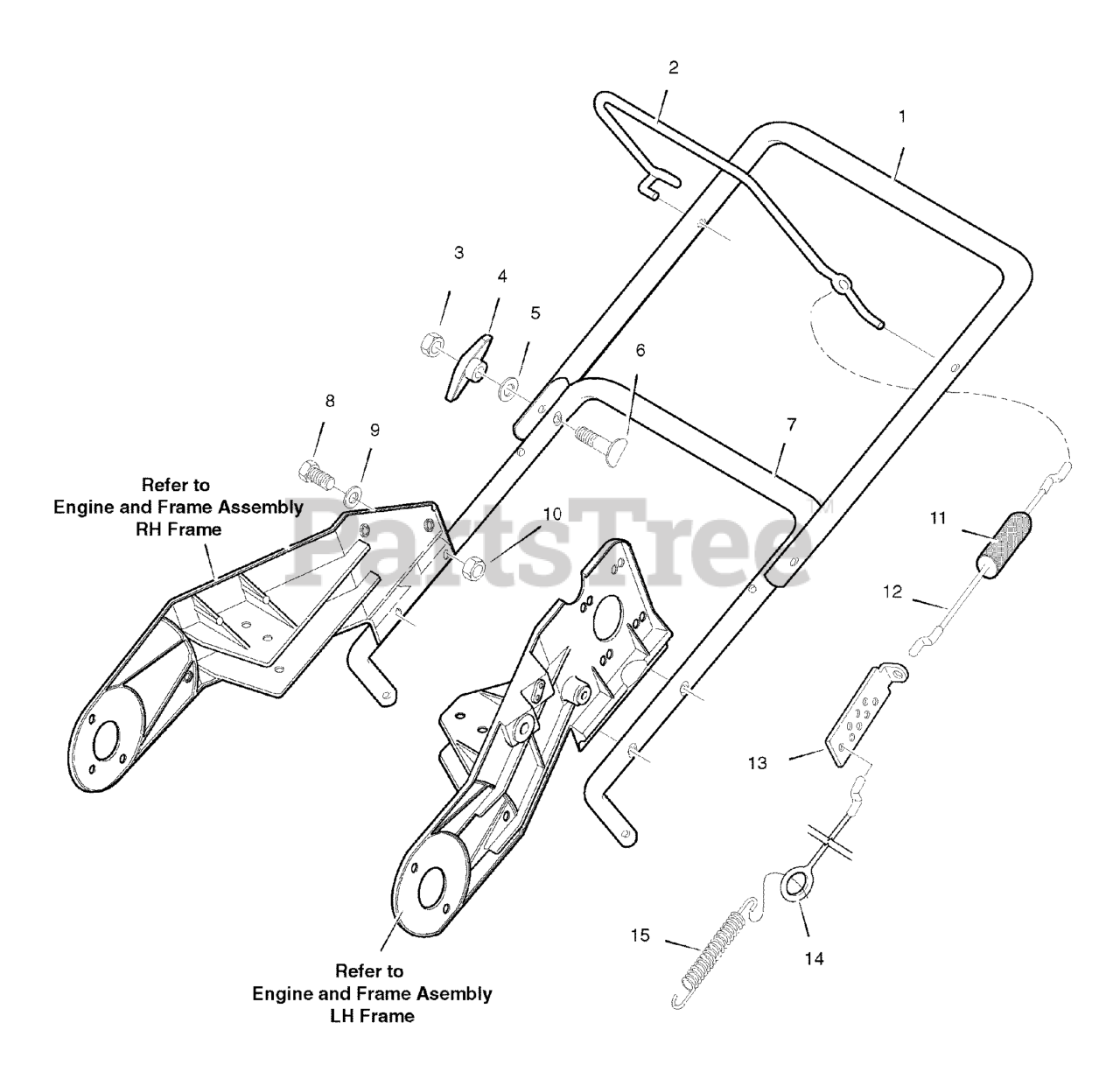

Handle Assembly Parts Diagram

  • Title

1

Husqvarna 601505196

HANDLE, UPPER

$93.99

$

Usually ships in 3-10 days

0

2

Husqvarna 601505197

BAIL, CONTROL

$

$

Not available

3

Husqvarna 601505129

NUT 5/16-18

$

$

Not available

4

Husqvarna 601400069

KNOB, WING

$

$

Not available

5

Husqvarna 601002413

FORM WASHER

$

$

Not available

6

Husqvarna 601002150

BOLT, 5/16-18X2.00

$

$

Not available

7

Husqvarna 601505199

HANDLE LOWER

$

$

Not available

8

Husqvarna 601505169

SCREW 1/4-20 X 1.25

$

$

Not available

9

Husqvarna 601400080

WASHER, FLAT .281X.63

$

$

Not available

10

Husqvarna 601400086

NUT .25-20 HEX CTRLOCK

$7.99

$

Usually ships in 3-10 days

0

11

Husqvarna 601001395

BOOT, CLUTCH SPRING

$

$

Not available

12

Husqvarna 601001392

CABLE, UPPER CONTROL

$

$

Not available

13

Husqvarna 601001393

BRACKET, CABLE ADJUST

$

$

Not available

14

Husqvarna 601001394

CABLE, LOWER CONTROL

$

$

Not available

15

Husqvarna 601001396

SPRING, EXTENSION .75X.069X2.0

$

$

Not available
