5021 R (531309638) - Husqvarna 21" Snow Blower (2007-07) Chute Rod Assembly Parts Diagram

21" Snow Blower

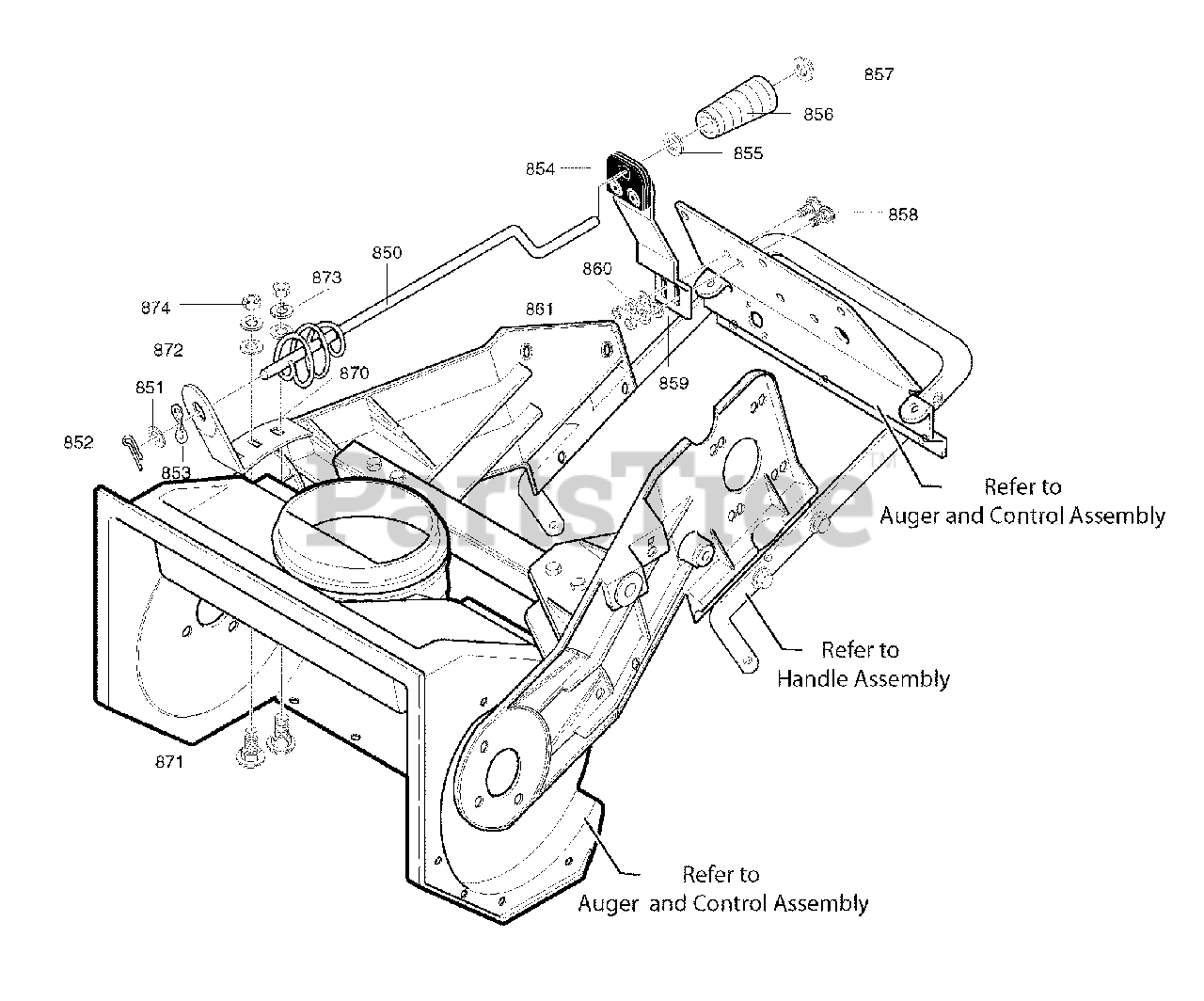

Chute Rod Assembly Parts Diagram

  • Title

850

Husqvarna 601505180

ROD, CHUTE

$

$

Not available

851

Husqvarna 601400082

WASHER, FLAT .406 X .81 X .066

$

$

Not available

852

Husqvarna 601505181

PIN, COTTER

$

$

Not available

853

Husqvarna 601001404

WASHER, CURVED SPRING

$

$

Not available

854

Husqvarna 601505182

ASSY, CHUTE CRANK BRACKET

$

$

Not available

855

Husqvarna 601400082

WASHER, FLAT .406 X.81 X .066

$

$

Not available

856

Husqvarna 601001405

KNOB, SLEEVE

$

$

Not available

857

Husqvarna 601001817

NUT, PUSH

$

$

Not available

858

Husqvarna 601505183

BOLT, 1/4-20 X .63 CARRIAGE

$

$

Not available

859

Husqvarna 601400081

WASHER, FLAT .349 X .69 X .065

$

$

Not available

860

Husqvarna 601400079

WASHER, SPLIT LOCK .31 X .58 X .08
(Superseded to 532198552)

$4.99

$

Usually ships in 3-10 days

0

861

Husqvarna 601505135

NUT, 1/4-20 HEX

$

$

Not available

870

Husqvarna 601505185

BRKT, CHUTE ROTATE

$

$

Not available

871

Husqvarna 601001411

BOLT, 5/16-18 X .75 CARRIAGE

$

$

Not available

872

Husqvarna 601400081

WASHER, FLAT .349 X .69 X .065

$

$

Not available

873

Husqvarna 601400079

WASHER, SPLIT LOCK .31 X .58 X .08
(Superseded to 532198552)

$4.99

$

Usually ships in 3-10 days

0

874

Husqvarna 601505129

NUT, 5/16-18 HEX

$

$

Not available
