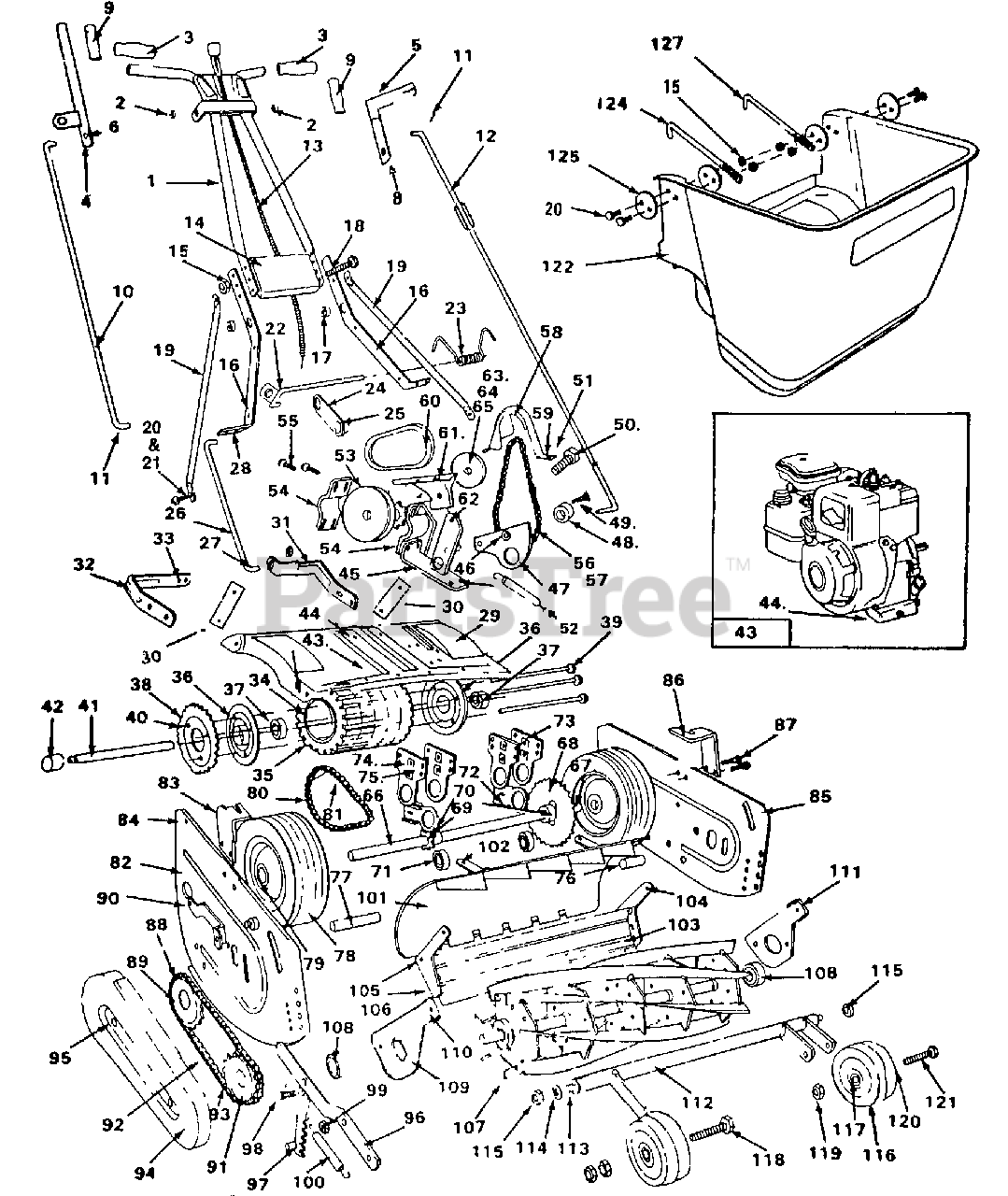

5021 - Troy-Bilt 25" Reel Mower MAIN ASSEMBLY Parts Diagram

25" Reel Mower

MAIN ASSEMBLY Parts Diagram

  • Title

1

Troy-Bilt R1001

HANDLE W/BEARING

$

$

Currently unavailable

2

Troy-Bilt R1002

HANDLE BEARINGS ONLY

$

$

Currently unavailable

3

Troy-Bilt R1003

HANDLE GRIPS (2 REQ.)

$

$

Currently unavailable

4

Troy-Bilt R1004

DRIVE CONTROL LEVER

$

$

Currently unavailable

5

Troy-Bilt R1005D

CLUTCH CONTROL LEVER

$

$

Currently unavailable

6

Troy-Bilt R1006

BOLT 7/16" x 1-1/4" (2 REQ.) L & R

$

$

Currently unavailable

?7

Troy-Bilt R1007

PLASTIC WASHER (2 REQ.) L & R

$

$

Currently unavailable

8

Troy-Bilt R1008

LOCK NUTS 7/16"-14 (2) L & R

$

$

Currently unavailable

9

Troy-Bilt R1009

DRIVE & CLUTCH LEVER GRIPS

$

$

Currently unavailable

10

Troy-Bilt R1010

DRIVE CONTROL ROD

$

$

Currently unavailable

11

Troy-Bilt R1011

COTTER PINS 1/8" x 1/2" (3 REQ.)

$

$

Currently unavailable

12

Troy-Bilt R1012D

CLUTCH CONTROL ROD

$

$

Currently unavailable

13

Troy-Bilt R1013

THROTTLE CONTROL ASSEMBLY

$

$

Currently unavailable

14

Troy-Bilt R1014

HANDLE BRACE PLATE

$

$

Currently unavailable

15

Troy-Bilt R1015

1/4"-28 NUTS (6 REQ.)

$

$

Currently unavailable

16

Troy-Bilt R1016

LOWER HANDLE W/BEARING (2 REQ.)

$

$

Currently unavailable

17

Troy-Bilt R1002

BEARINGS ONLY

$

$

Currently unavailable

18

Troy-Bilt R1018

1/4"-28 X 7/8" BOLTS (6 REQ.)

$

$

Currently unavailable

19

Troy-Bilt R1019

HANDLE BRACE (2 REQ.) L & R

$

$

Currently unavailable

20

Troy-Bilt R1020

1/4"-28 X 5/8" BOLT (2 REQ.) L & R

$

$

Currently unavailable

21

Troy-Bilt R1015

1/4"-28 NUTS (2 REQ.) L& R

$

$

Currently unavailable

22

Troy-Bilt R1022

DRIVE PIVOT ROD

$

$

Currently unavailable

23

Troy-Bilt R1023

DRIVE PIVOT SPRING

$

$

Currently unavailable

24

Troy-Bilt R1024

DRIVE PIVOT ARM

$

$

Currently unavailable

25

Troy-Bilt R1025

SET SCREW 3/8"-16 X 1/2" SQUARE HEAD

$

$

Currently unavailable

26

Troy-Bilt R1026

LOWER DRIVE CONTROL ROD

$

$

Currently unavailable

27

Troy-Bilt R1027

COTTER PIN 1/8" X 1/2"

$

$

Currently unavailable

28

Troy-Bilt R1028

5/16"-18 X 3/4" BOLTS (4 REQ.) L & R

$

$

Currently unavailable

29

Troy-Bilt R1029

DECK

$

$

Currently unavailable

30

Troy-Bilt R1030

HANDLE BRACKETS (2 REQ.)

$

$

Currently unavailable

31

Troy-Bilt R1031

ROLLER SUPPORT BRACKET WITH BEARING

$

$

Currently unavailable

32

Troy-Bilt R1032

ROLLER SUPPORT BRACKET

$

$

Currently unavailable

33

Troy-Bilt R1033

5/16"-18 X 1/2" (2 REQ.)

$

$

Currently unavailable

34

Troy-Bilt R1034

ROLLER DRIVE TUBE

$

$

Currently unavailable

35

Troy-Bilt R1035

ROLLER DRIVE TIRES (5 REQ.)

$

$

Currently unavailable

36

Troy-Bilt R1036

ROLLER END CAPS (2 REQ.)

$

$

Currently unavailable

37

Troy-Bilt R1037

END CAP BEARINGS (2 REQ.)

$

$

Currently unavailable

38

Troy-Bilt R1038

ROLLER DRIVE SPROCKET (30 TEETH)

$

$

Currently unavailable

39

Troy-Bilt R1039

ROLLER DRIVE BOLTS (3 REQ.)

$

$

Currently unavailable

40

Troy-Bilt R1015

1/4"-28 DRIVE NUTS (3 REQ.)

$

$

Currently unavailable

41

Troy-Bilt R1041

ROLLER DRIVE SHAFT

$

$

Currently unavailable

42

Troy-Bilt R1042

SPACER

$

$

Currently unavailable

43

Troy-Bilt R1043

ENGINE, 3 HP MODEL 80202-1676-02

$

$

Currently unavailable

44

Troy-Bilt R1044

5/16" X 24 X 1-1/2" BOLTS (4 REQ.)

$

$

Currently unavailable

45

Troy-Bilt R1045D

MAIN CLUTCH BODY

$

$

Currently unavailable

46

Troy-Bilt R1046D

CLUTCH BEARING

$

$

Currently unavailable

47

Troy-Bilt R1047D

BELT IDLER ARM

$

$

Currently unavailable

?48

Troy-Bilt R1048D

IDLER BEARING (CONCAVE)

$

$

Currently unavailable

49

Troy-Bilt R1049

3/8"-16 X 1/2" FLAT HEAD PHILLIPS HEAD SCREW

$

$

Currently unavailable

50

Troy-Bilt R1006

7/16"-14 X 1-1/4" BOLT

$

$

Currently unavailable

51

Troy-Bilt R1051

WASHER 7/16"

$

$

Currently unavailable

52

Troy-Bilt R1052D

CLUTCH SPRING/W SPRING PLATE

$

$

Currently unavailable

53

Troy-Bilt R1053

JACK SHAFT WITH PULLEY & SPROCKET

$

$

Currently unavailable

54

Troy-Bilt R1054

JACK SHAFT HOUSING (2 REQ.)

$

$

Currently unavailable

55

Troy-Bilt R1028

5/16"-18 X 3/4" BOLTS (4 REQ.)

$

$

Currently unavailable

56

Troy-Bilt R1056

CLUTCH DRIVE CHAIN - NO. 41 X 44 PITCH

$

$

Currently unavailable

57

Troy-Bilt R1057

CONNECTING LINK FOR NO. 41 CHAIN

$

$

Currently unavailable

58

Troy-Bilt R1058

CLUTCH CHAIN GUARD

$

$

Currently unavailable

59

Troy-Bilt R1033

5/16"-18 X 1/2" BOLT

$

$

Currently unavailable

60

Troy-Bilt R1060

CLUTCH BELT

$

$

Currently unavailable

61

Troy-Bilt R1061

BELT GUARD

$

$

Currently unavailable

62

Troy-Bilt R1062

5/16"-18 X 3/8" BOLT

$

$

Currently unavailable

63

Troy-Bilt R1063

ENGINE PULLEY

$

$

Currently unavailable

64

Troy-Bilt R1064

KEY FOR ENGINE PULLEY SHAFT 3/16" X 3/16" X 5/8"

$

$

Currently unavailable

65

Troy-Bilt R1065

ALLEN SET SCREW 5/16"-24 X 5/16"

$

$

Currently unavailable

66

Troy-Bilt R1066

REAR AXLE SHAFT

$

$

Currently unavailable

67

Troy-Bilt R1067

RETAINER RING

$

$

Currently unavailable

68

Troy-Bilt R1068

SPROCKET (30 TEETH WITH HUB)

$

$

Currently unavailable

69

Troy-Bilt R1069

SPROCKET (8 TEETH WITH HUB)

$

$

Currently unavailable

70

Troy-Bilt R1070

SET SCREWS 7/16"-20 X 7/16" HALF DOG (3 REQ.)

$

$

Currently unavailable

71

Troy-Bilt R1071

AXLE SUPPORT BEARING (2 REQ.)

$

$

Currently unavailable

72

Troy-Bilt R1072

ROLLER BRACKET SUPPORTS (2 REQ.)

$

$

Currently unavailable

73

Troy-Bilt R1073

AXLE HANGERS (4 REQ.)

$

$

Currently unavailable

74

Troy-Bilt R1074

HANGER BOLTS 5/16"-24 X 7/8" (8 REQ.)

$

$

Currently unavailable

75

Troy-Bilt R1075

5/16"-24 NUTS (8 REQ.)

$

$

Currently unavailable

76

Troy-Bilt R1076

SPACER 1-1/16"

$

$

Currently unavailable

77

Troy-Bilt R1077

SPACER 2-3/16"

$

$

Currently unavailable

78

Troy-Bilt R1078

REAR WHEELS WITH BEARINGS (2 REQ.)

$

$

Currently unavailable

79

Troy-Bilt R1037

REAR WHEEL BEARINGS WITH FLANGE (4 REQ.)

$

$

Currently unavailable

80

Troy-Bilt R1080

ROLLER DRIVE CHAIN NO. 41-36 PITCH

$

$

Currently unavailable

81

Troy-Bilt R1057

CONNECTING LINK NO. 41

$

$

Currently unavailable

82

Troy-Bilt R1082

SIDE PLATE WITH CHAIN GUARD BRACKET

$

$

Currently unavailable

83

Troy-Bilt R1083

CATCHER HOOK BRACKET

$

$

Currently unavailable

84

Troy-Bilt R1028

5/16"-18 X 3/4" (4 REQ.)

$

$

Currently unavailable

85

Troy-Bilt R1085

SIDE PLATE

$

$

Currently unavailable

86

Troy-Bilt R1086

CATCHER HOOK BRACKET

$

$

Currently unavailable

87

Troy-Bilt R1028

5/16"-18 X 3/4" (4 REQ.)

$

$

Currently unavailable

88

Troy-Bilt R1088

SPROCKET (17 TEETH)

$

$

Currently unavailable

89

Troy-Bilt R1070

SET SCREWS 7/16"-20 X 7/16" HALF DOG (4 REQ.)

$

$

Currently unavailable

90

Troy-Bilt R1033

5/16"-18 X 1/2" BOLTS (2 REQ.)

$

$

Currently unavailable

91

Troy-Bilt R1091A

SPROCKET (13 TEETH)

$

$

Currently unavailable

92

Troy-Bilt R1092

REAL DRIVE CHAIN NO. 41-46 PITCH

$

$

Currently unavailable

93

Troy-Bilt R1057

CONNECTING LINK NO. 41

$

$

Currently unavailable

94

Troy-Bilt R1094

CHAIN GUARD

$

$

Currently unavailable

95

Troy-Bilt R1095

USE PART #1033

$

$

Currently unavailable

96

Troy-Bilt R1096

HEIGHT ADJUSTMENT LEVER

$

$

Currently unavailable

97

Troy-Bilt R1097

HEIGHT ADJUSTMENT NOTCHED BRACKET

$

$

Currently unavailable

98

Troy-Bilt R1095

SAME AS 1028

$

$

Currently unavailable

99

Troy-Bilt R1099

SPACER BUSHING

$

$

Currently unavailable

100

Troy-Bilt R1100

HEIGHT ADJUSTMENT SPRING

$

$

Currently unavailable

101

Troy-Bilt R1101

SHIELD

$

$

Currently unavailable

101

Troy-Bilt R1101A

SHIELD ASSEMBLY HARDWARE

$

$

Currently unavailable

102

Troy-Bilt R1033

5/16"-18 X 1/2" BOLTS (2 REQ.)

$

$

Currently unavailable

103

Troy-Bilt R1103

BED KNIFE

$

$

Currently unavailable

104

Troy-Bilt R1095

SAME AS 1028

$

$

Currently unavailable

105

Troy-Bilt R1105

TAPERED BOLTS 5/16"-18 X 5/8" (6 REQ.)

$

$

Currently unavailable

106

Troy-Bilt R1106

BUSHING FOR TAPERED BOLT (6 REQ.)

$

$

Currently unavailable

107

Troy-Bilt R1107

REEL ASSEMBLY 6 BLADE

$

$

Currently unavailable

108

Troy-Bilt R1108

REEL BEARINGS (2 REQ.)

$

$

Currently unavailable

109

Troy-Bilt R1109

REEL BEARING RETAINER

$

$

Currently unavailable

110

Troy-Bilt R1095

SAME AS 1033

$

$

Currently unavailable

111

Troy-Bilt R1111

REEL BEARING RETAINER

$

$

Currently unavailable

112

Troy-Bilt R1112

FRONT WHEEL ASSEMBLY BAR

$

$

Currently unavailable

113

Troy-Bilt R1113

TIE ROD

$

$

Currently unavailable

114

Troy-Bilt R1007

PLASTIC WASHER

$

$

Currently unavailable

115

Troy-Bilt R1008A

7/16"-14 NUTS (2 REQ.)

$

$

Currently unavailable

116

Troy-Bilt R1116

FRONT WHEELS WITH BEARINGS

$

$

Currently unavailable

117

Troy-Bilt R1002

FRONT WHEEL BEARINGS (2 REQ.)

$

$

Currently unavailable

118

Troy-Bilt R1118

7/16"-14 X 3-1/2" BOLT

$

$

Currently unavailable

119

Troy-Bilt R1008

7/16"-14 NUTS (3 REQ.)

$

$

Currently unavailable

120

Troy-Bilt R1051

7/16" FLAT WASHER

$

$

Currently unavailable

121

Troy-Bilt R1121

7/16"-14 X 3-1/4" BOLT

$

$

Currently unavailable

122

Troy-Bilt R1122

PLASTIC GRASS CATCHER

$

$

Currently unavailable

124

Troy-Bilt R1124

CATCHER HOOK

$

$

Currently unavailable

125

Troy-Bilt R3065

WASHER

$

$

Currently unavailable

127

Troy-Bilt R1127

CATCHER HOOK

$

$

Currently unavailable

?128

Troy-Bilt R1018

1/4"-28 X 7/8" BOLT (4 REQ.)

$

$

Currently unavailable

?129

Troy-Bilt R1020

1/4"-28 X 5/8" BOLT (2 REQ.)

$

$

Currently unavailable
