5022 EX (1695091) - Simplicity 22" Snow Thrower (2006) Frame and Fuel Tank Group Parts Diagram

22" Snow Thrower

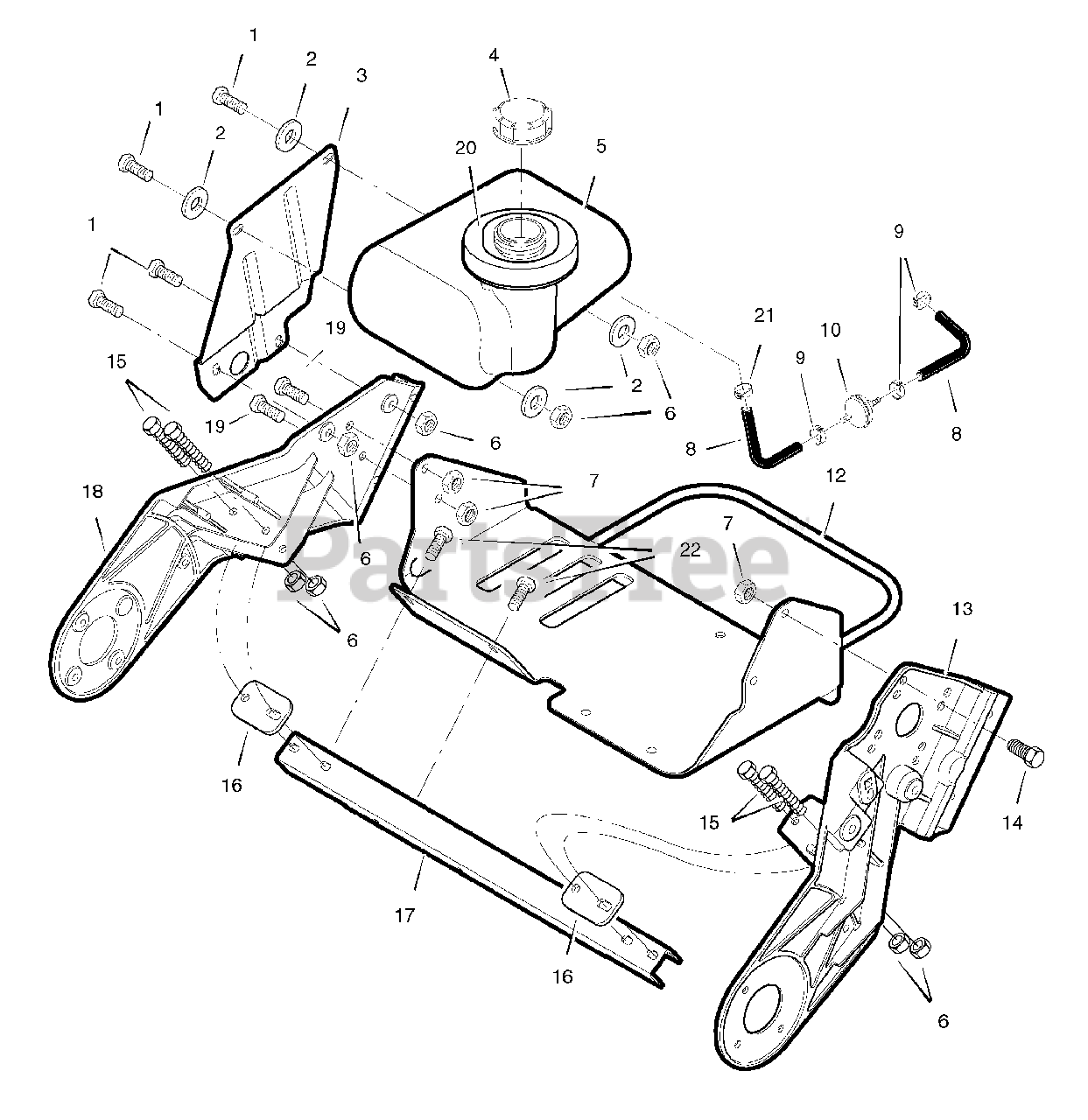

Frame and Fuel Tank Group Parts Diagram

  • Title

1

Simplicity 302628MA

SCREW 1/4-20 x .3/4

$4.49

$

In Stock, Qty 6

0

2

Simplicity 71067MA

WASHER FLAT 9/32 x 5/8 x .065

$4.49

$

In Stock, only 1 left!

0

3

Simplicity 1740031E701MA

BRACKET, Fuel Tank

$38.99

$

Usually ships in 2-12 days

0

4

Simplicity 1715917SM

CAP, Fuel Tank
(Superseded to 5101651SM)

$30.99

$

In Stock, Qty 5

0

5

Simplicity 1716634MA

TANK, Fuel

$

$

Not available

6

Simplicity 73826MA

NUT, Hex 1/4-20
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0

7

Simplicity 71391MA

NUT, Hex 5/16-18

$4.49

$

In Stock, only 1 left!

0

8

Simplicity 1502028MA

TUBING, Fuel Line

$8.49

$

In Stock, only 1 left!

0

9

Simplicity 323387MA

CLAMP, Fuel Line

$4.49

$

Usually ships in 2-12 days

0

10

Simplicity 1501729MA

FILTER, Fuel Line
(Superseded to 298090S)

$

$

Not available

12

Simplicity 1501849E701MA

CRADLE ASSEMBLY, Engine

$222.99

$

Usually ships in 2-12 days

0

13

Simplicity 1501872MA

FRAME, L.H.
(Superseded to 1501872E701MA)

$

$

Not available

14

Simplicity 48901MA

SCREW, 5/16-18 x 1/16

$3.99

$

Usually ships in 2-12 days

0

15

Simplicity 180044MA

SCREW, 1/4-20 x 2.00

$3.99

$

Usually ships in 2-12 days

0

16

Simplicity 335351MA

PLATE, Mounting Support

$3.99

$

Usually ships in 2-12 days

0

17

Simplicity 1501851MA

SUPPORT, Frame

$34.99

$

Usually ships in 2-12 days

0

18

Simplicity 1501871E701MA

FRAME, R.H.
(Superseded to 1741988AYP)

$100.99

$

Usually ships in 2-12 days

0

19

Simplicity 180077MA

SCREW, 5/16-18 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

20

Simplicity 1740032MA

RING, Foam

$12.99

$

In Stock, only 1 left!

0

21

Simplicity 47345MA

CLAMP, Fuel Line, Screw Type

$9.49

$

Usually ships in 2-12 days

0

22

Simplicity 310169MA

SCREW, 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, only 2 left!

0
