5024 (31AS6BN2766) - Troy-Bilt Storm 24" Snow Thrower (2005-2) Handle Assembly Parts Diagram

Storm 24" Snow Thrower

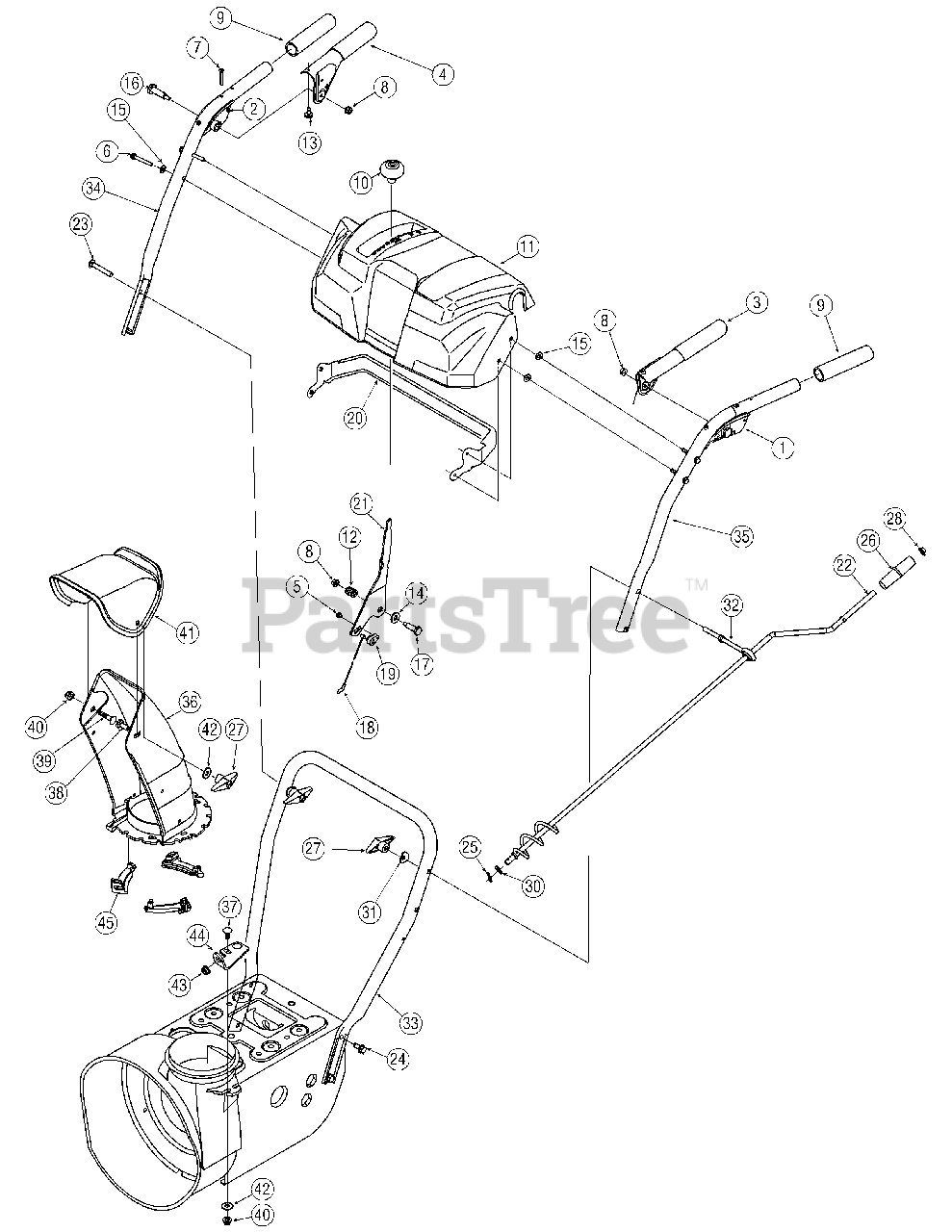

Handle Assembly Parts Diagram

  • Title

1

Troy-Bilt 631-04133

Handle Assembly, Lock, LH
(Superseded to 631-04133A)

$14.99

$

In Stock, only 1 left!

0

2

Troy-Bilt 631-04134A

Handle Assembly, Lock, RH
(Superseded to 631-04134B)

$14.99

$

In Stock, only 3 left!

0

3

Troy-Bilt 684-04105A

Handle Ass’ y, Engagement LH
(Superseded to 684-04105D)

$21.99

$

In Stock, only 1 left!

0

4

Troy-Bilt 684-04106A

Handle Ass’y, Engagement, RH
(Superseded to 684-04106D)

$20.99

$

In Stock, only 1 left!

0

5

Troy-Bilt 710-0224

Screw, #10-16, 0.500
(Superseded to 910-0224)

$3.49

$

Usually ships in 3-6 days

0

6

Troy-Bilt 710-1026

Screw, 1/4-20, 1.750

$6.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 710-1233

Screw, Machine, #10-24, 1.375

$4.49

$

In Stock, Qty 13

0

8

Troy-Bilt 712-04064

Nut, Flange Lock, 1/4-20, Nylon

$3.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 720-0274

Grip, 1.0 ID x 5.0

$10.99

$

In Stock, Qty 6

0

10

Troy-Bilt 720-04039

Knob, Shift

$9.99

$

In Stock, only 4 left!

0

11

Troy-Bilt 731-05334

Handle Panel, N-Style
(Superseded to 731P05334C)

$66.99

$

In Stock, only 1 left!

0

12

Troy-Bilt 732-0193

Spring, .39 x .60 x .88

$4.49

$

In Stock, Qty 8

0

13

Troy-Bilt 735-0199A

Bumper, Rubber, .62 OD x .22

$6.99

$

In Stock, Qty 16

0

14

Troy-Bilt 736-0262

Washer, Flat, .385 x .870 x .092

$3.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 736-0463

Washer, Flat, .25 x .630 x.0515

$4.49

$

In Stock, only 2 left!

0

16

Troy-Bilt 738-04122

Screw, Shoulder, .43 x 1.34, 1/4-20
(Superseded to 738-04348)

$3.49

$

In Stock, only 1 left!

0

17

Troy-Bilt 738-04125

Screw, Shoulder, .374 Dia. X1.05

$4.49

$

In Stock, Qty 18

0

18

Troy-Bilt 746-04227

Cable, Speed Selector
(Superseded to 746-04227A)

$21.99

$

In Stock, only 1 left!

0

19

Troy-Bilt 746-0605

Barrel Houlder, Cable, LH
(Superseded to 946-0605)

$3.99

$

In Stock, Qty 12

0

20

Troy-Bilt 790-00140

Bracket, Panel
(Superseded to 790-00140-0637)

Variations

Troy-Bilt 790-00140-0637

BRACKET-PANEL - POWDER BLACK

$

$

Not available

$

$

21

Troy-Bilt 790-00203

Lever, Shift
(Superseded to 790-00203-0637)

Variations

Troy-Bilt 790-00203-0637

Shift Lever - POWDER BLACK (0637)

$

$

Not available

$

$

22

Troy-Bilt 684-04104

Crank Assembly, Chute
(Superseded to 684-04104-0637)

Variations

Troy-Bilt 684-04104-0637

Chute Crank Assembly, Powder Black - POWDER BLACK (0637)

$58.99

$

In Stock, only 1 left!

0

$58.99

$

In Stock, only 1 left!

0

23

Troy-Bilt 710-0449

Screw, Carriage, 5/16-18, 2.25
(Superseded to 710-0572)

$3.99

$

In Stock, only 4 left!

0

24

Troy-Bilt 710-1260A

Screw, 5/16-18, 0.75, Gr5

$3.49

$

In Stock, Qty 20+

0

25

Troy-Bilt 714-0104

Pin, Cotter, .072 x 1.13

$3.99

$

In Stock, Qty 20+

0

26

Troy-Bilt 720-0201A

Crank Knob, 1.0 Dia. x 3.

$10.99

$

In Stock, Qty 6

0

27

Troy-Bilt 720-0284

Knob Assembly, Wing Nut, 5/16-18

$6.49

$

In Stock, Qty 20+

0

28

Troy-Bilt 726-0100

Cap, Push, 3/8 Rod

$3.99

$

In Stock, Qty 7

0

29

Troy-Bilt 735-0234

Grommet, .44 ID x .94 OD

$4.99

$

In Stock, only 3 left!

0

30

Troy-Bilt 736-0185

Washer, Flat, .375 x .738

$3.49

$

In Stock, Qty 15

0

31

Troy-Bilt 736-0451

Washer, Saddle, 320 x .93

$3.99

$

In Stock, only 2 left!

0

32

Troy-Bilt 747-04263

Eye Bolt, Chute Crank

$8.99

$

In Stock, only 3 left!

0

33

Troy-Bilt 749-04138

Handle, Lower
(Superseded to 749-04138A)

Variations

Troy-Bilt 749-04138-0637

Lower Handle, Snow - POWDER BLACK (0637)

$82.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-04138-0638

Lower Handle, Snow - MTD/TROY-BILT RED (0638)

$82.99

$

Usually ships in 3-6 days

0

$82.99

$

Usually ships in 3-6 days

0

34

Troy-Bilt 749-04141

Handle, Upper, RH

Variations

Troy-Bilt 749-04141-0637

Right Upper Handle - POWDER BLACK (0637)

$42.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-04141-0638

HANDLE-UPPER RH - MTD/TROY-BILT RED (0638)

$42.99

$

Usually ships in 3-6 days

0

$49.99

$

Usually ships in 3-6 days

0

35

Troy-Bilt 749-04142

Handle, Upper, LH
(Superseded to 749-04191A)

Variations

Troy-Bilt 749-04142-0638

HANDLE-UPPER LH - MTD/TROY-BILT RED (0638)

$42.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-04142-0637

HANDLE-UPPER LH - POWDER BLACK (0637)

$42.99

$

Usually ships in 3-6 days

0

$36.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 731-04912A

Chute, Lower, 5.0 Diameter
(Superseded to 731-04912B)

$36.99

$

In Stock, only 1 left!

0

37

Troy-Bilt 710-0276

Bolt, Carriage, 5/16-18, 1.0

$3.99

$

In Stock, Qty 20+

0

38

Troy-Bilt 712-04063

Nut, Flange Lock, 5/16-18, Nylon

$3.99

$

In Stock, Qty 20+

0

39

Troy-Bilt 710-04071

Bolt, Carriage, 5/16-18, 1.0

$4.49

$

In Stock, Qty 16

0

40

Troy-Bilt 710-0451

Bolt, Carriage, 5/16-18, .750

$3.99

$

In Stock, Qty 20+

0

41

Troy-Bilt 731-04426A

Chute, Upper, w/ Label
(Superseded to 731-04426C)

$18.99

$

In Stock, Qty 6

0

42

Troy-Bilt 736-0159

Washer.349 ID x .879 OD x.063

$3.99

$

In Stock, Qty 20+

0

43

Troy-Bilt 741-0475

Bushing, Plastic, .380
(Superseded to 941-0475)

$3.99

$

In Stock, Qty 20+

0

44

Troy-Bilt 784-5647

Bracket, Chute Crank
(Superseded to 784-5647-0637)

Variations

Troy-Bilt 784-5647-0637

Chute Crank Bracket, Black - POWDER BLACK (0637)

$13.99

$

In Stock, Qty 8

0

$13.99

$

In Stock, Qty 8

0

45

Troy-Bilt 731-04869

Flange Keeper, Chute
(Superseded to 731-04869A)

$4.49

$

In Stock, Qty 20+

0
