50267 - Gravely GEM Lawn Tractor, 14hp Kohler, Hydro Drive FRAME AND REAR DECK Parts Diagram

GEM Lawn Tractor, 14hp Kohler, Hydro Drive

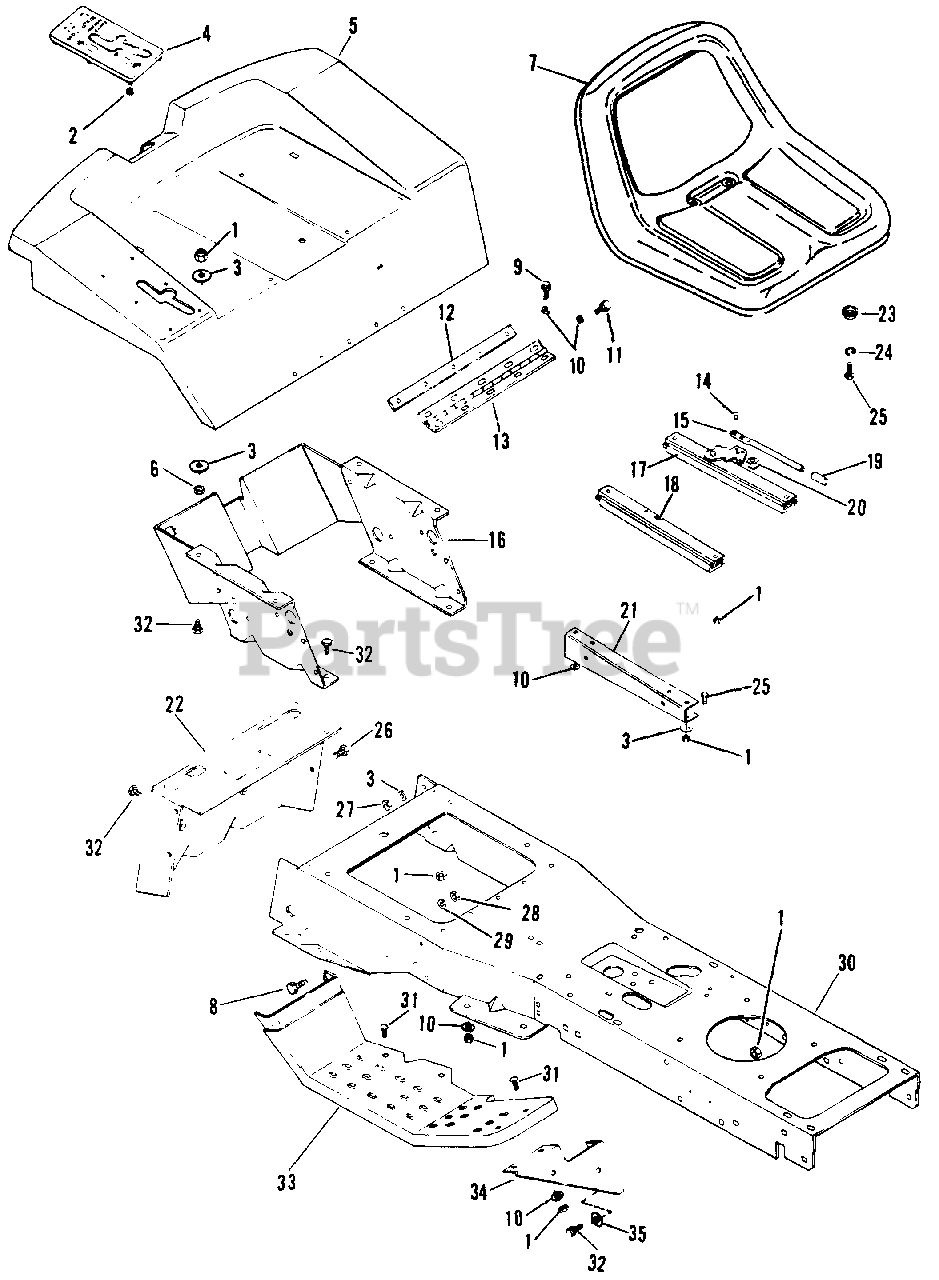

FRAME AND REAR DECK Parts Diagram

  • Title

1

Gravely 419455

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

2

Gravely 050378

PALNUT-.25
(Superseded to 07017900)

$

$

Not available

3

Gravely 446470

WSHR-FL-STL .375X1.125X.065YWZ
(Superseded to 06401139)

$2.99

$

In Stock, Qty 14

0

4

Gravely 050154

INSERT
(Superseded to 03450000)

$

$

Not available

5

Gravely 050155

REAR DECK
(Superseded to 03449353)

$

$

Not available

6

Gravely 120376

NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

7

Gravely 045610

SEAT KIT W/ SWITCH
(Superseded to 59100200)

$

$

Not available

8

Gravely 180020

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

9

Gravely 039094

SCR-TAP .31-18X.75 HWH TR YWZ
(Superseded to 07400127)

$1.99

$

In Stock, Qty 14

0

10

Gravely 120393

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 036905

SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 050162

STRAP
(Superseded to 03457400)

$5.99

$

Usually ships in 4-12 days

0

13

Gravely 039090

HINGE-2" X 12.88 YWZC
(Superseded to 03102800)

$

$

Not available

14

Gravely 159929

SCR-MCH 10-24X.62 P/HD
(Superseded to 06111100)

$1.49

$

In Stock, Qty 10

0

15

Gravely 039063

SEAT SLIDE HANDLE
(Superseded to 03416500)

$

$

Not available

16

Gravely 050161

DECK SUPPORT
(Superseded to 03448500)

$

$

Not available

17

Gravely 035641

SEAT SLIDES -(RAME TAK-3010-4)
(Superseded to 03600800)

$

$

Not available

18

Gravely 035642

SEAT SLIDES -(RAME TAK-3010-4)
(Superseded to 03600800)

$

$

Not available

19

Gravely 043192

TIP - BRAKE LOCK LEVER
(Superseded to 07503800)

$1.99

$

In Stock, only 2 left!

0

20

Gravely 190254

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 048604

SPACER-SEAT
(Superseded to 03340200)

$

$

Not available

22

Gravely 049363

TAILBOARD
(Superseded to 03448900)

$

$

Not available

23

Gravely 035670

SEAT SLIDE SPACER
(Superseded to 03418300)

$4.49

$

Usually ships in 4-12 days

0

24

Gravely 120214

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 180077

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

26

Gravely 180121

BLT-HEX .38-16X.875 GR5 YWZC
(Superseded to 05932600)

$2.99

$

Usually ships in 4-12 days

0

27

Gravely 456004

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

28

Gravely 419454

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, Qty 12

0

29

Gravely 120392

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

30

Gravely 049126

MAIN FRAME
(Superseded to 03448800)

$

$

Not available

31

Gravely 126358

BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.99

$

In Stock, Qty 20+

0

32

Gravely 180079

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 20+

0

33

Gravely 050163

FOOT REST R H
(Superseded to 03408253)

$

$

Not available

33

Gravely 050164

FOOTREST

$

$

Not available

34

Gravely 050167

L H FOOTREST BRACE
(Superseded to 03473600)

$

$

Not available

34

Gravely 050166

R H FOOTREST BRACE
(Superseded to 03473500)

$

$

Not available

35

Gravely 446354

WSHR-FL-STL .313X.875X.065
(Superseded to 06430700)

$

$

Not available
