50267 - Gravely GEM Lawn Tractor, 14hp Kohler, Hydro Drive HOOD AND GRILLE Parts Diagram

GEM Lawn Tractor, 14hp Kohler, Hydro Drive

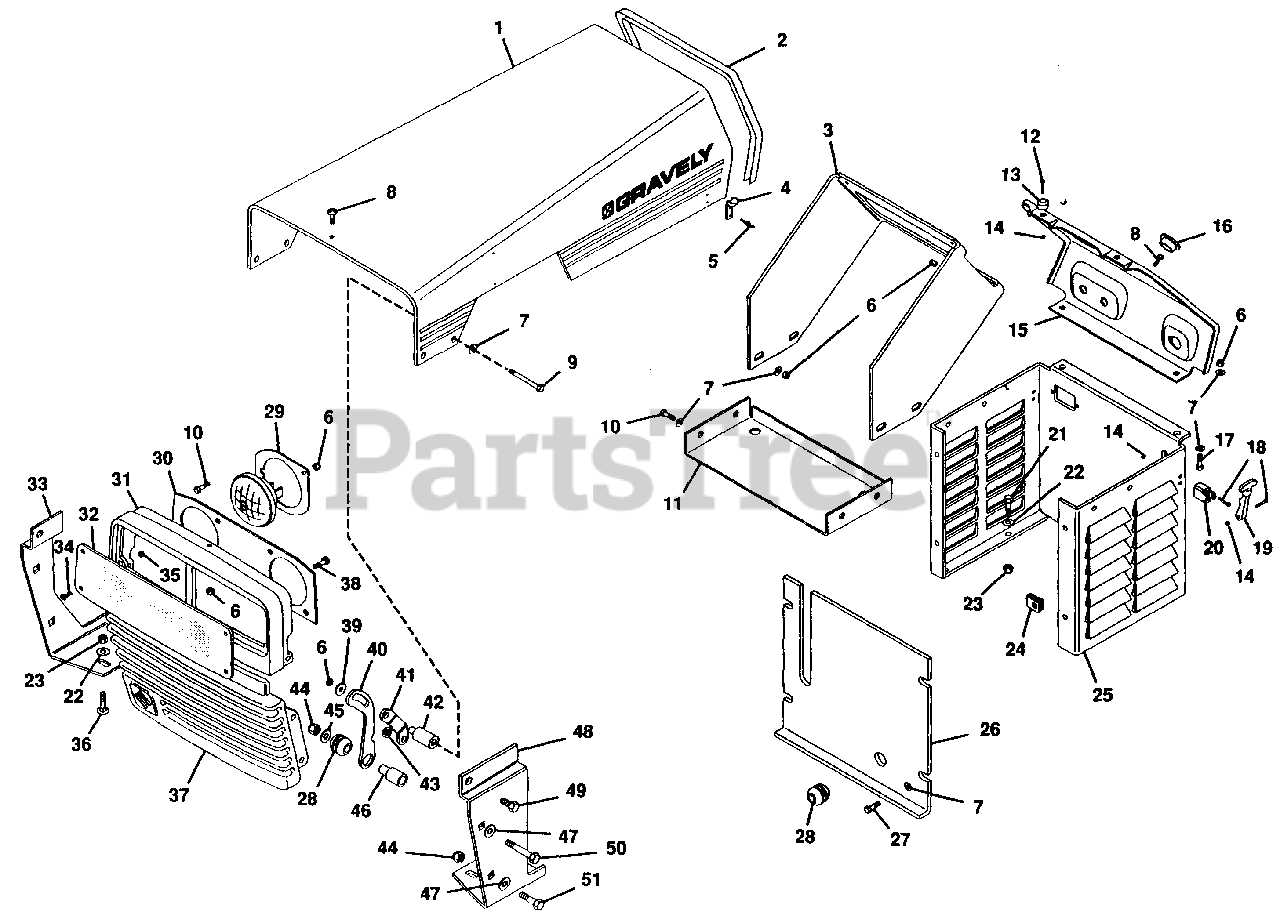

HOOD AND GRILLE Parts Diagram

  • Title

1

Gravely 050474

HOOD,GEM SILKSCREEN
(Superseded to 03343100)

$

$

Not available

2

Gravely 046424

STRIP, COWL
(Superseded to 00922700)

$5.99

$

Usually ships in 4-12 days

0

3

Gravely 047651

BRACKET, SUPPORT
(Superseded to 03492900)

$

$

Not available

4

Gravely 050505

KEEPER
(Superseded to 03494500)

$3.49

$

Usually ships in 4-12 days

0

5

Gravely 032661

RVT-STEEL
(Superseded to 06807500)

$

$

Not available

6

Gravely 419454

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, Qty 12

0

7

Gravely 120392

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 160541

SCR-MCH .25-20 PAN HD
(Superseded to 06113500)

$2.99

$

Usually ships in 4-12 days

0

9

Gravely 180046

BLT-HEX .25-20X2.25 GR5 YWZC
(Superseded to 05901636)

$2.99

$

Usually ships in 4-12 days

0

10

Gravely 180022

BLT-HEX .25-20X1.00 GR5 YWZC
(Superseded to 05901639)

$1.99

$

In Stock, only 2 left!

0

11

Gravely 047648

BATTERY SUPPORT
(Superseded to 03492000)

$

$

Not available

12

Gravely 159341

SCR-MCH 6-32X.625
(Superseded to 06110700)

$2.49

$

Usually ships in 4-12 days

0

13

Gravely 018183

BUMPER
(Superseded to 07017400)

$

$

Not available

14

Gravely 427254

NUT-LK-NYL 6-32 W/INSRT YWZC
(Superseded to 06538900)

$1.49

$

Usually ships in 4-12 days

0

15

Gravely 050538

DASH PANEL - SILKSCREEN
(Superseded to 03490300)

$

$

Not available

16

Gravely 010174

BSHG-FLG .762X1.0X.580X1.48 NY
(Superseded to 05518400)

$5.49

$

In Stock, Qty 15

0

17

Gravely 180018

BLT-HEX .25-20X.63
(Superseded to 05932000)

$2.49

$

Usually ships in 4-12 days

0

18

Gravely 159358

SCR-MCH 6-32X1.00
(Superseded to 06110800)

$

$

Not available

19

Gravely 050504

LATCH, FLEXIBLE DRAW
(Superseded to 07519700)

$

$

Not available

20

Gravely 047675

BLOCK, TIE DOWN
(Superseded to 07519600)

$

$

Not available

21

Gravely 180079

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 20+

0

22

Gravely 120393

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 419455

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

24

Gravely 032369

NUT-RTNR .25-20X.56
(Superseded to 07009000)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 050671

DASH TOWER - SILKSCREEN
(Superseded to 03492200)

$

$

Not available

26

Gravely 047669

COVER, HYDRAULIC TANK
(Superseded to 03494400)

$

$

Not available

27

Gravely 180020

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

28

Gravely 035518

GROMMET
(Superseded to 07504200)

$6.49

$

Usually ships in 4-12 days

0

29

Gravely 039070

HEAD LIGHT RETAINER RING
(Superseded to 03115900)

$

$

Not available

30

Gravely 038672

PANEL,HEADLIGHT REFLECTOR
(Superseded to 03067000)

$

$

Not available

31

Gravely 038673

BEZEL,HEADLIGHT
(Superseded to 03066800)

$

$

Not available

32

Gravely 038671

PANEL,HEADLIGHT LENSE
(Superseded to 03066900)

$

$

Not available

33

Gravely 047611

BRACKET
(Superseded to 03493600)

Note: (R.H.)

$

$

Not available

34

Gravely 159947

SCR-MCH 10-24X.75 PHD
(Superseded to 06111200)

$2.99

$

Usually ships in 4-12 days

0

35

Gravely 190254

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

36

Gravely 126358

BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.99

$

In Stock, Qty 20+

0

37

Gravely 050695

CASTING,GRILLE
(Superseded to 03343700)

$

$

Not available

38

Gravely 045207

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

39

Gravely 416904

WSHR-FL-STL .281X1.000X.063
(Superseded to 06401020)

$1.49

$

In Stock, only 4 left!

0

40

Gravely 050009

HINGE, SLOTTED
(Superseded to 03487500)

$

$

Not available

41

Gravely 050008

HINGE, SHORT L H
(Superseded to 03487300)

$

$

Not available

41

Gravely 050004

HINGE, SHORT R H
(Superseded to 03487400)

$

$

Not available

42

Gravely 050003

PIVOT HOOD
(Superseded to 03487200)

$

$

Not available

43

Gravely 413534

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

44

Gravely 456004

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

45

Gravely 120388

WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

46

Gravely 049235

BUSHING, STEEL
(Superseded to 03494800)

$

$

Not available

47

Gravely 120394

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

48

Gravely 047610

BRACKET L H
(Superseded to 03495700)

Note: (L.H.)

$

$

Not available

49

Gravely 180120

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.99

$

In Stock, Qty 14

0

50

Gravely 180137

BLT-HEX .38-16X2.75 GR5 YWZC
(Superseded to 05901611)

$4.99

$

In Stock, Qty 20+

0

51

Gravely 180124

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.99

$

In Stock, Qty 20+

0

NS

Gravely 050677

DECAL 12.5
(Superseded to 07814000)

$

$

Not available

NS

Gravely 050678

DECAL, 14
(Superseded to 05215400)

$

$

Not available
