5030-14 - Electrolux/AYP Tiller MAIN FRAME Parts Diagram

Tiller

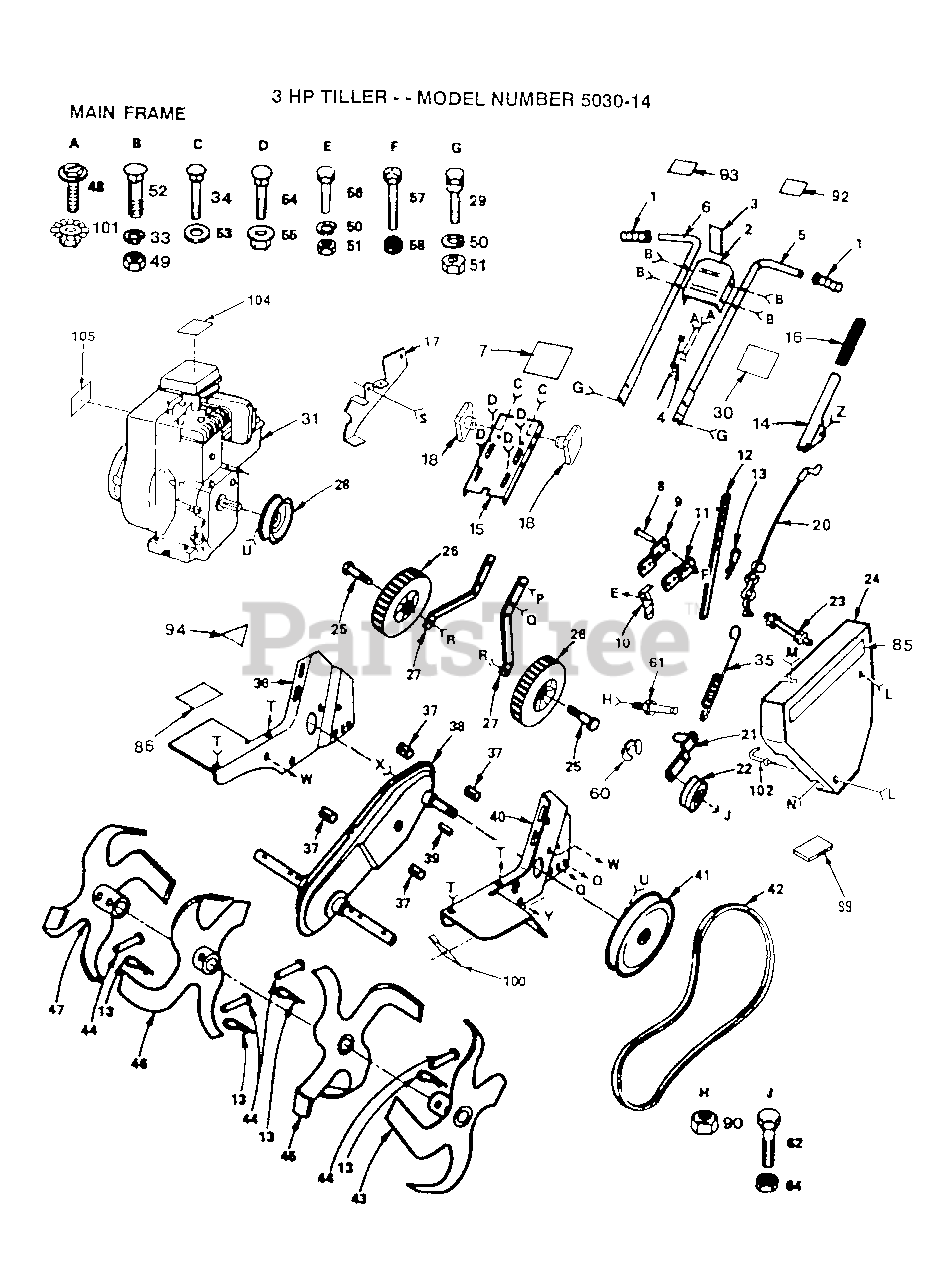

MAIN FRAME Parts Diagram

  • Title

1

Electrolux/AYP 9266R

SUB= 624A78

$

$

Not available

2

Electrolux/AYP 127046X424

"BRKT,HANDLE"

$7.49

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 121751X

DECAL, THROTTLE

$

$

Not available

4

Electrolux/AYP 127011X

SUB= 532127011

$

$

Not available

5

Electrolux/AYP 2621J

SUB= 154127

$

$

Not available

6

Electrolux/AYP 2622J

SUB= 159764

$

$

Not available

7

Electrolux/AYP 128574

"DECAL,PANEL HANDL"

$

$

Not available

8

Electrolux/AYP 9551R

DRILLED RIVET RT

$

$

Not available

9

Electrolux/AYP 318J

STAKE.SUPT.TILLER
(Superseded to 583732001)

$

$

Not available

10

Electrolux/AYP 325J

STAKE SPRING CT
(Superseded to 583732201)

$

$

Not available

11

Electrolux/AYP 317J

SUB= 317J500

$

$

Not available

12

Electrolux/AYP 9193R

SUB= 9193R500

$

$

Not available

13

Electrolux/AYP 4921H

SPRING.RETAINER
(Superseded to 532004921)

$6.49

$

In Stock, only 2 left!

0

14

Electrolux/AYP 3069J

SUB= 164937
(Superseded to 583014501)

$

$

Not available

15

Electrolux/AYP 2626J424

"PANEL,HANDLE"
(Superseded to 583730601)

$7.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 8206H

GRIP T
(Superseded to 532008206)

$6.49

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 122955X

BRKT ASSY

$5.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 63688

SUB= 136376
(Superseded to 532183724)

$

$

Not available

20

Electrolux/AYP 3067J

SUB= 100382K

$

$

Not available

21

Electrolux/AYP 674A30

IDLER ARM TI

$

$

Not available

22

Electrolux/AYP 9178R

SUB= 75673

$

$

Not available

23

Electrolux/AYP 110528X

BOLT TI
(Superseded to 583660001)

$14.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 121613X424

"GUARD,BELT"

$2.49

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 121117X

BOLT SHOULDER
(Superseded to 532121117)

$8.99

$

In Stock, Qty 10

0

26

Electrolux/AYP 9186R

SUB= STD333760

$

$

Not available

27

Electrolux/AYP 9189R

SUB= 674H4

$

$

Not available

28

Electrolux/AYP 7417J

PULLEY

$

$

Not available

29

Electrolux/AYP 471J

BOLT CT

$

$

Not available

30

Electrolux/AYP 127914X

DECAL, HANDLE BRACKET

$

$

Not available

31

Electrolux/AYP 121637X

ENGINE - 3HP - BRIGGS & STRATTON

$

$

Not available

33

Electrolux/AYP 19111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

34

Electrolux/AYP 72110510

BOLT
(Superseded to 872110510)

$7.49

$

In Stock, Qty 20+

0

35

Electrolux/AYP 3070J

SPRING EXT TI
(Superseded to 583731801)

$

$

Not available

36

Electrolux/AYP 2606J424

"BRKT,ENG RH"

$16.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 9173R

SPLIT SPACER RT
(Superseded to 583779801)

$6.49

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 105391X

SUB= 918105391X
(Superseded to 165809)

$

$

Not available

39

Electrolux/AYP 2649M

KEY T
(Superseded to 532002649)

$4.99

$

In Stock, only 1 left!

0

40

Electrolux/AYP 110510X424

"BRKT,ENG LH"

$3.99

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 9174R

TRANS SHEAVE RT

$

$

Not available

42

Electrolux/AYP 9179R

SUB= TH3H390
(Superseded to 583784801)

$30.99

$

Usually ships in 3-10 days

0

43

Electrolux/AYP 106859X

TINE ASS'Y LH
(Superseded to 165773)

$38.99

$

Usually ships in 3-10 days

0

44

Electrolux/AYP 9194R

DRILLED RIVET RT
(Superseded to 532443676)

$7.49

$

In Stock, Qty 19

0

45

Electrolux/AYP 106857X

TINE INN LH TI
(Superseded to 583017401)

$109.99

$

Usually ships in 3-10 days

0

46

Electrolux/AYP 106858

TINE ASSY, INNER

$

$

Not available

47

Electrolux/AYP 106860X

TINE ASSY RH
(Superseded to 165774)

$37.99

$

Usually ships in 3-10 days

0

48

Electrolux/AYP 71091008

SCREW
(Superseded to 871191008)

$6.49

$

Usually ships in 3-10 days

0

49

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

50

Electrolux/AYP 10040500

LOCKWASHER
(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 73220500

NUT.HEX.5/16-18
(Superseded to 873220500)

$6.49

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 72140512

BOLT
(Superseded to 582736101)

$

$

Not available

53

Electrolux/AYP 19121414

WASHER
(Superseded to 819121414)

$1.99

$

Usually ships in 3-10 days

0

54

Electrolux/AYP 72140506

BOLT
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

55

Electrolux/AYP 98000129

NUT
(Superseded to 532426589)

$6.49

$

In Stock, Qty 18

0

56

Electrolux/AYP 74760512

BOLT
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

57

Electrolux/AYP 74610624

BOLT.3/8-24X1-1/2
(Superseded to 874610624)

$6.49

$

In Stock, only 1 left!

0

58

Electrolux/AYP 7810H

GRIPCO NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

60

Electrolux/AYP 12000036

KLIP RING TI
(Superseded to 812000036)

$6.49

$

In Stock, only 1 left!

0

61

Electrolux/AYP 106968X

SHAFT IDLER TI
(Superseded to 532106968)

$15.99

$

Usually ships in 3-10 days

0

62

Electrolux/AYP 74760620

SUB= 74780620
(Superseded to 874760620)

$7.49

$

In Stock, only 3 left!

0

64

Electrolux/AYP 73350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 4 left!

0

85

Electrolux/AYP 127915X

DECAL, BELT GUARD

$

$

Not available

86

Electrolux/AYP 120076X

SUB= 120075X
(Superseded to 532120075)

$5.99

$

Usually ships in 3-10 days

0

90

Electrolux/AYP 73350500

JAM NUT TI
(Superseded to 873350500)

$8.99

$

Usually ships in 3-10 days

0

92

Electrolux/AYP 110613X

DECAL TI
(Superseded to 532110613)

$12.99

$

Usually ships in 3-10 days

0

93

Electrolux/AYP 110614X

DECAL TI
(Superseded to 532110614)

$6.49

$

Usually ships in 3-10 days

0

94

Electrolux/AYP 110596X

DECAL - OPEI

$

$

Not available

99

Electrolux/AYP 109227X

PAD IDLER TI
(Superseded to 532109227)

$3.99

$

In Stock, Qty 20+

0

100

Electrolux/AYP 105358X

SHIELD-DIRT TI
(Superseded to 583645201)

$2.99

$

Usually ships in 3-10 days

0

101

Electrolux/AYP 73731000

NUT

$2.49

$

Usually ships in 3-10 days

0

102

Electrolux/AYP 121463X

KEEPER BELT

$

$

Not available

104

Electrolux/AYP 110612X

DECAL TI
(Superseded to 532110612)

$

$

Not available

105

Electrolux/AYP 126230X

"DECAL,ENG HP"

$6.49

$

Usually ships in 3-10 days

0

Electrolux/AYP 127913X

OWNER'S MANUAL

$

$

Not available
