504 AWD - Husqvarna Automower Robotic Lawn Mower (2021-01) CENTER CONSOL Parts Diagram

Automower Robotic Lawn Mower

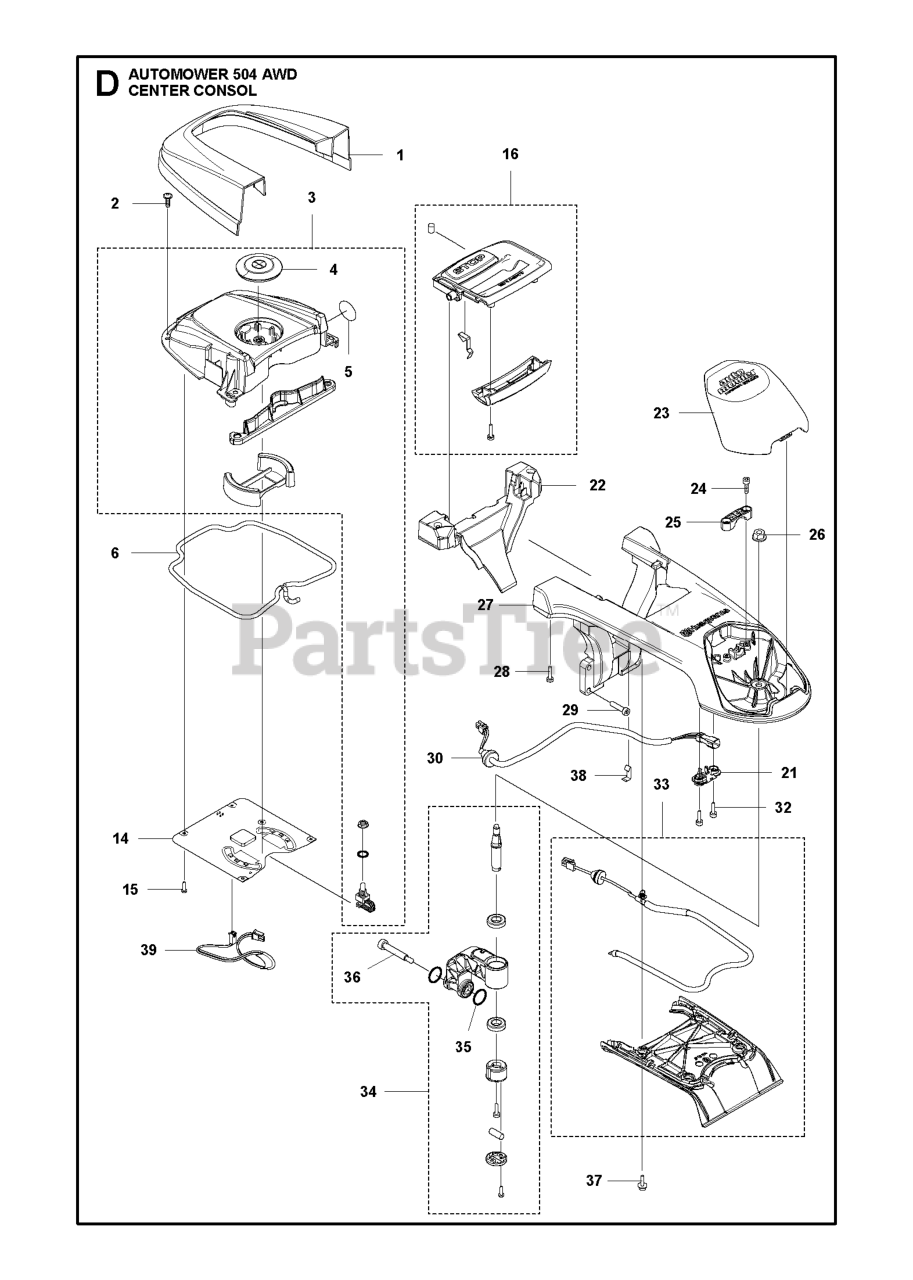

CENTER CONSOL Parts Diagram

  • Title

33

Husqvarna 592944001

Switches

$

$

Not available

1

Husqvarna 592614501

Lids

Note: HMI

$39.99

$

Usually ships in 3-10 days

0

2

Husqvarna 574450101

SCREW ITXPANT

Note: ITXPANT

$4.99

$

Usually ships in 3-10 days

0

25

Husqvarna 593355201

Clamps

Note: Main Cable

$6.99

$

Usually ships in 3-10 days

0

35

Husqvarna 740431300

O-RING

$7.99

$

In Stock, Qty 12

0

24

Husqvarna 586444901

SCREW

$5.99

$

In Stock, Qty 7

0

23

Husqvarna 591487103

Covers

$28.99

$

Usually ships in 3-10 days

0

28

Husqvarna 580292901

SCREW ITXSCT PW4.2X18 10.9 ZN

$3.49

$

Usually ships in 3-10 days

0

34

Husqvarna 597166401

Pivots

$91.99

$

Usually ships in 3-10 days

0

4

Husqvarna 592614202

Knobs

Note: 5 Serie

$

$

Not available

15

Husqvarna 525887401

SCREW CITXPANT
(Superseded to 503212813)

$6.49

$

In Stock, only 2 left!

0

29

Husqvarna 544218403

SCREW

$6.49

$

In Stock, only 1 left!

0

16

Husqvarna 597162101

Handles

$26.99

$

Usually ships in 3-10 days

0

3

Husqvarna 597162202

Covers

$170.99

$

Usually ships in 3-10 days

0

6

Husqvarna 574874714

Seals

Note: Chassis upper front

$7.99

$

Usually ships in 3-10 days

0

30

Husqvarna 591203201

Wires

$96.99

$

Usually ships in 3-10 days

0

22

Husqvarna 591351701

Handles

$34.99

$

Usually ships in 3-10 days

0

14

Husqvarna 591100201

Circuits

Note: Application Board

$454.99

$

Usually ships in 3-10 days

0

39

Husqvarna 591452201

NEEDS DESCRIPTION

$22.99

$

Usually ships in 3-10 days

0

38

Husqvarna 597476101

Clips

$7.99

$

Usually ships in 3-10 days

0

26

Husqvarna 503220401

NUT W/ WASHER

Note: Washer

$7.49

$

In Stock, Qty 6

0

21

Husqvarna 593355101

Clamps

$5.99

$

Usually ships in 3-10 days

0

27

Husqvarna 590944201

Links

$

$

Not available

36

Husqvarna 592629001

Screws

$8.99

$

Usually ships in 3-10 days

0

32

Husqvarna 586444901

SCREW

$5.99

$

In Stock, Qty 7

0

37

Husqvarna 525824401

SCREW ITXSCM WASHER M5X12 T27

$6.49

$

Usually ships in 3-10 days

0

5

Husqvarna 576921501

AIR FILTER

$79.99

$

Usually ships in 3-10 days

0
