504 AWD - Husqvarna Automower Robotic Lawn Mower (2021-01) CHASSIS REAR Parts Diagram

Automower Robotic Lawn Mower

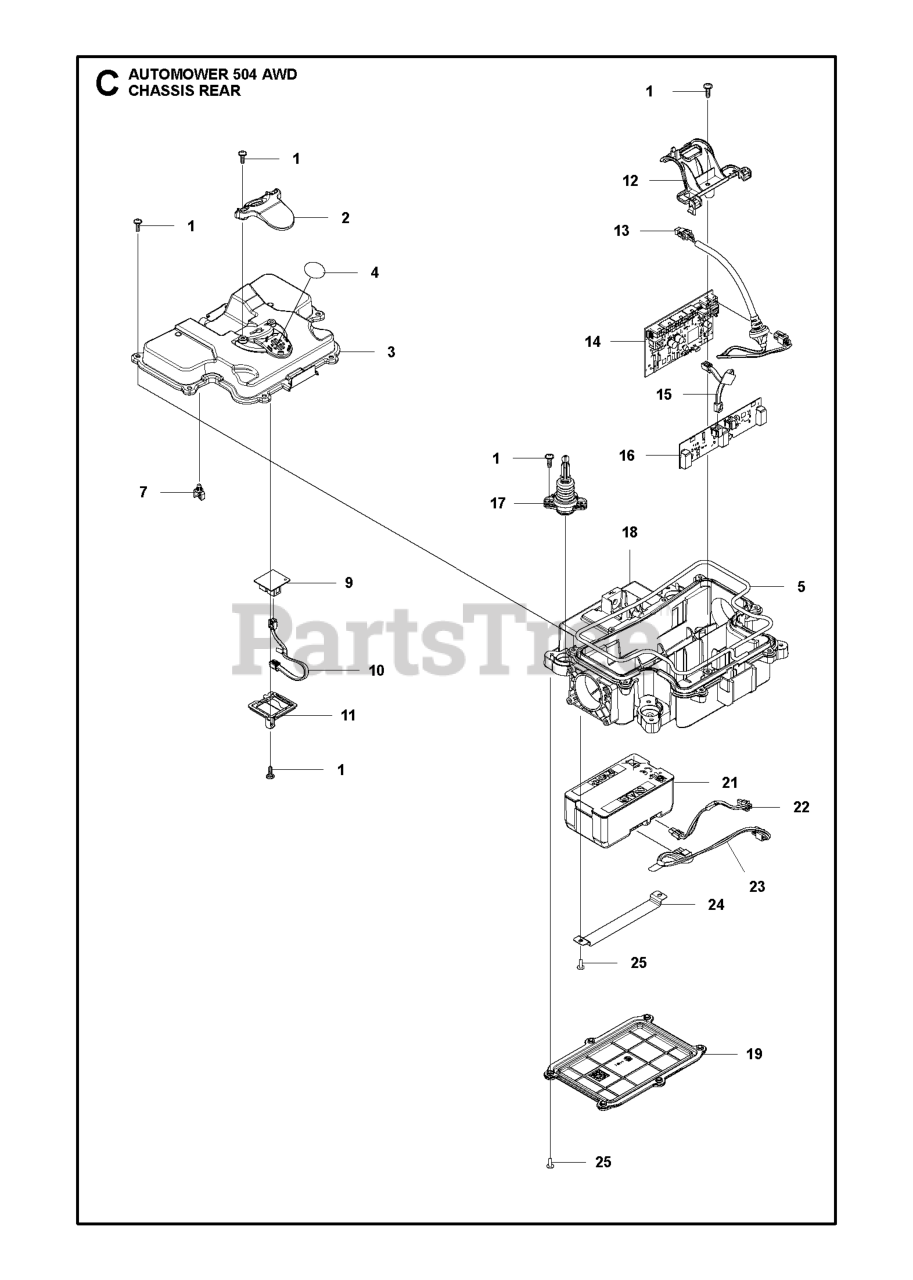

CHASSIS REAR Parts Diagram

  • Title

16

Husqvarna 591125701

Circuits
(Superseded to 591125703)

Note: Loop Receiver Board Rear

$102.99

$

Usually ships in 3-10 days

0

10

Husqvarna 589350801

WIRING ASSY MODULAR JACK 6/6 R

Note: Modular Jack

$22.99

$

Usually ships in 3-10 days

0

2

Husqvarna 591487001

Holders

Note: Grommet

$5.99

$

Usually ships in 3-10 days

0

13

Husqvarna 593309401

Wires

Note: Main Cable Rear

$

$

Not available

5

Husqvarna 574874713

Seals

Note: Chassis Lower Rear

$5.99

$

Usually ships in 3-10 days

0

24

Husqvarna 592635801

Brackets

Note: Battery

$6.99

$

Usually ships in 3-10 days

0

22

Husqvarna 591203401

Wires
(Superseded to 531144201)

Note: Battery Charging Adapter

$22.99

$

Usually ships in 3-10 days

0

4

Husqvarna 577753701

KIT AIR FILTER KIT 305 - 10 PC

Note: Air Filter

$51.99

$

Usually ships in 3-10 days

0

11

Husqvarna 591494301

Holders

Note: Magnetic Sensor Board

$5.99

$

Usually ships in 3-10 days

0

25

Husqvarna 588222201

SCREW ITXPANM M4X12 A2-70 PAT

$3.49

$

Usually ships in 3-10 days

0

21

Husqvarna 593247101

Batteries

$433.99

$

Usually ships in 3-10 days

0

7

Husqvarna 595082901

Holders

Note: Wire Sadle

$4.99

$

Usually ships in 3-10 days

0

19

Husqvarna 594016201

Covers

Note: Battery

$26.99

$

Usually ships in 3-10 days

0

15

Husqvarna 589350801

WIRING ASSY MODULAR JACK 6/6 R

Note: Modular Jack

$22.99

$

Usually ships in 3-10 days

0

1

Husqvarna 575543314

SCREW 14MM

Note: ITXPANT

$3.49

$

In Stock, Qty 11

0

18

Husqvarna 591484102

Chassis

Note: Lower Rear

$68.99

$

Usually ships in 3-10 days

0

3

Husqvarna 591484201

Chassis

Note: Upper Rear

$28.99

$

Usually ships in 3-10 days

0

17

Husqvarna 594058601

JOYSTICK ASSY REAR

Note: Rear

$26.99

$

Usually ships in 3-10 days

0

23

Husqvarna 591203501

Wires

Note: Battery Cable Premium

$

$

Not available

14

Husqvarna 591125601

Circuits

Note: Motor Controller Board

$284.99

$

Usually ships in 3-10 days

0

9

Husqvarna 591125501

Circuits

Note: Magnetic Sensor

$68.99

$

Usually ships in 3-10 days

0

12

Husqvarna 591494201

Holders

Note: PCB Rear

$6.99

$

Usually ships in 3-10 days

0
