505 H - Husqvarna Automower Robotic Lawn Mower (2021-01) COVER Parts Diagram

Automower Robotic Lawn Mower

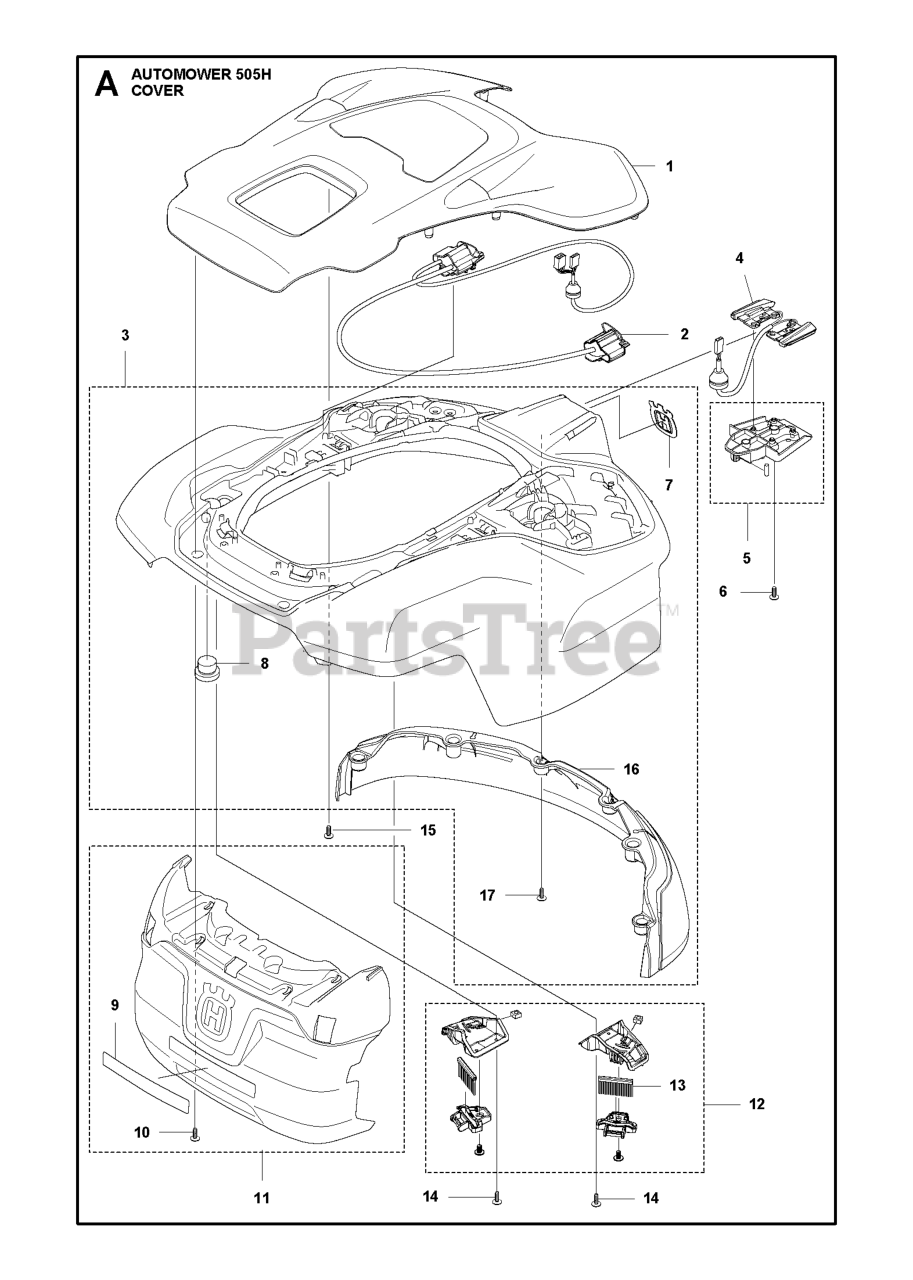

COVER Parts Diagram

  • Title

7

Husqvarna 587423501

DECAL HUSQVARNA CROWN HEIGHT 5

Note: Decal Crown

$11.99

$

Usually ships in 3-10 days

0

10

Husqvarna 574450101

SCREW ITXPANT

$4.99

$

Usually ships in 3-10 days

0

9

Husqvarna 586359701

LABEL WARNING P15

Note: Label Warning

$5.99

$

Usually ships in 3-10 days

0

2

Husqvarna 501065201

WIRING ASSY ULTRASONIC
(Superseded to 501065202)

Note: Wiring Assy Ultra Sonic

$299.99

$

Usually ships in 3-10 days

0

13

Husqvarna 581982002

WHEEL BRUSH REFILL KIT
(Superseded to 581982011)

Note: Brush 6 pcs

$24.99

$

Usually ships in 3-10 days

0

5

Husqvarna 596489901

HOLDER ASSY 430XH, 450XH

$23.99

$

Usually ships in 3-10 days

0

14

Husqvarna 574450101

SCREW ITXPANT

$4.99

$

Usually ships in 3-10 days

0

1

Husqvarna 596502102

Body

Note: Cover Kit Orange

$203.99

$

Usually ships in 3-10 days

0

17

Husqvarna 574450101

SCREW ITXPANT

Note: Front Bumper

$4.99

$

Usually ships in 3-10 days

0

1

Husqvarna 596502101

BODY KIT SPARE PART TOP COVER

Note: Cover Kit Grey

$179.99

$

Usually ships in 3-10 days

0

12

Husqvarna 581903102

BRUSH KIT 430/450

Note: Brackets and Brushes 6 pcs

$

$

Not available

8

Husqvarna 580526801

CAP SNAPLOC

Note: Cap Snaploc

$5.99

$

In Stock, only 2 left!

0

15

Husqvarna 574450101

SCREW ITXPANT

Note: Top Cover

$4.99

$

Usually ships in 3-10 days

0

4

Husqvarna 585539204

CABLE ASSY CHARGING PLATE
(Superseded to 531144701)

Note: Charging Plate Wiring

$65.99

$

Usually ships in 3-10 days

0

16

Husqvarna 593117401

BUMPER FRONT

$107.99

$

Usually ships in 3-10 days

0

3

Husqvarna 596485401

BODY ASSY 430XH, 450XH

Note: High-Cut

$418.99

$

Usually ships in 3-10 days

0

11

Husqvarna 596489701

BUMPER ASSY 430XH,450XH,550H

$77.99

$

Usually ships in 3-10 days

0

6

Husqvarna 575543314

SCREW 14MM

$3.99

$

In Stock, Qty 8

0
