5056-94 - Electrolux/AYP Tiller MAINFRAME-RIGHT SIDE Parts Diagram

Tiller

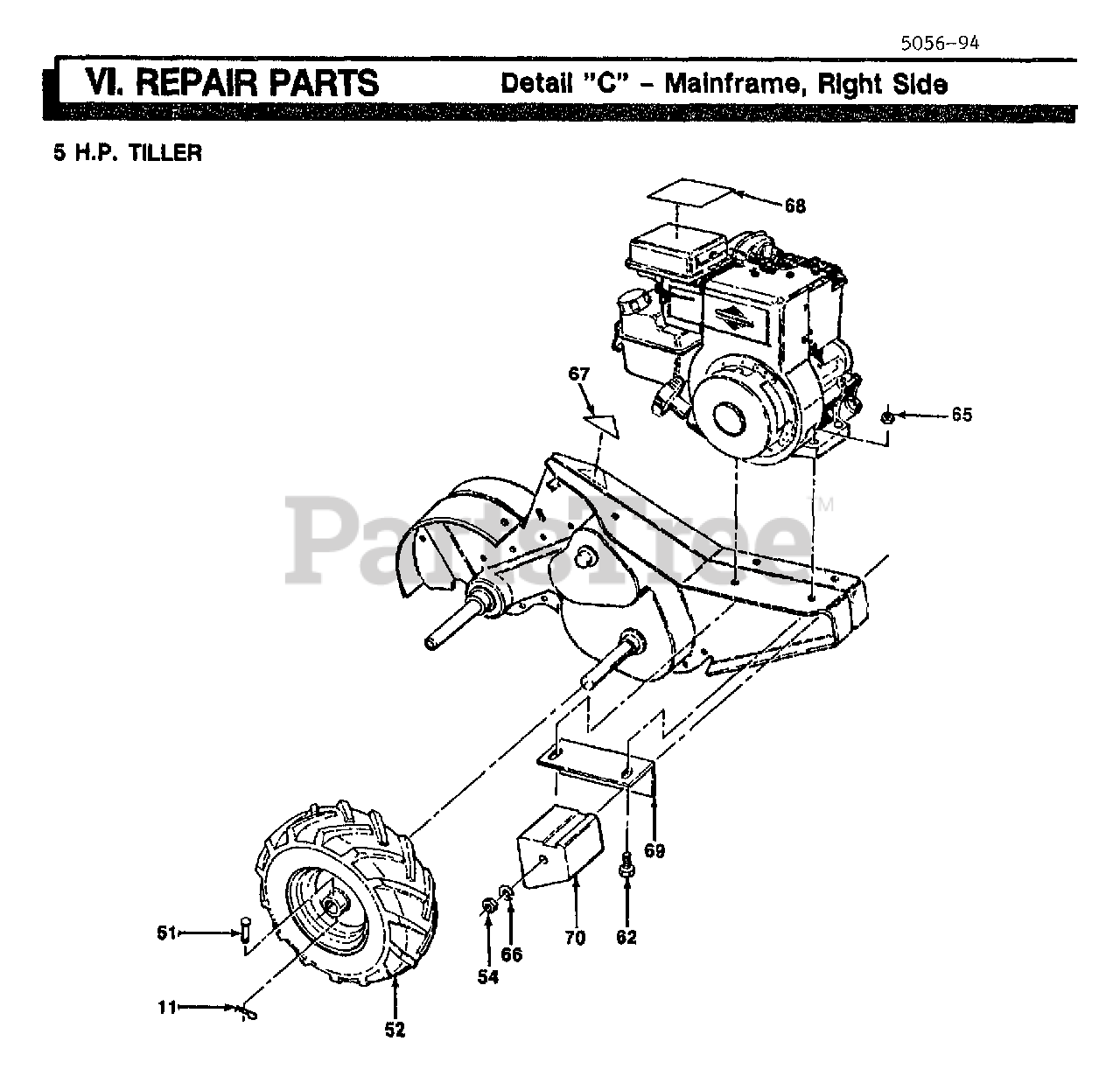

MAINFRAME-RIGHT SIDE Parts Diagram

  • Title

67

REFER TO IMAGE

$

$

Not available

68

Electrolux/AYP 110612X

DECAL TI
(Superseded to 532110612)

$

$

Not available

69

Electrolux/AYP 102332X

BRACKET RH CRT
(Superseded to 532102332)

$

$

Not available

70

Electrolux/AYP 102173X

COUNTERWEIGHT CRT
(Superseded to 532102173)

$42.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 4497H

RETAINER M
(Superseded to 532004497)

$10.99

$

In Stock, Qty 20+

0

51

Electrolux/AYP 102814X

SUB= 126875X

$

$

Not available

52

Electrolux/AYP 109208X

SUB= 124258X

$

$

Not available

52A

Electrolux/AYP 102190X

TIRE.CHV.13X5.0-6
(Superseded to 532102190)

$93.99

$

Usually ships in 3-10 days

0

52B

Electrolux/AYP 795R

SUB= 65139

$

$

Not available

54

Electrolux/AYP 73220600

NUT.HEX.3/8-16UNC
(Superseded to 873220600)

$6.49

$

In Stock, only 4 left!

0

62

Electrolux/AYP 74760524

BOLT.HEX.5/16-1.5

$2.49

$

Usually ships in 3-10 days

0

65

Electrolux/AYP 73510500

NUT

$2.99

$

Usually ships in 3-10 days

0

66

Electrolux/AYP 10040600

LOCKWASHER
(Superseded to 810040600)

$3.49

$

Usually ships in 3-10 days

0
