50568x9A - Briggs & Stratton 50" Lawn Tractor (1998) (Montgomery Wards) Mower Housing Parts Diagram

50" Lawn Tractor

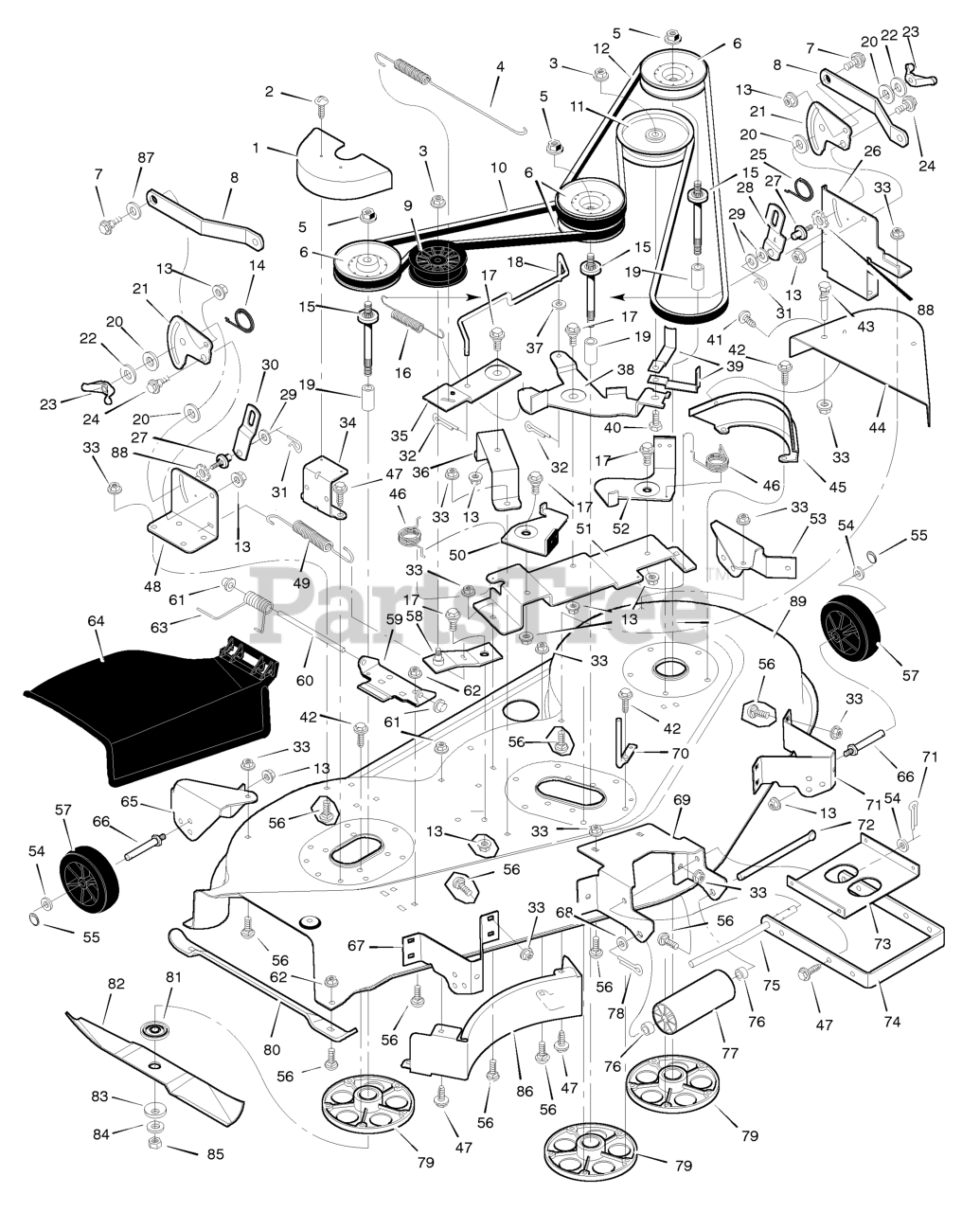

Mower Housing Parts Diagram

  • Title

1

Murray 094607E701MA

Cover, Right Pulley
(Superseded to 7300857BMYP)

$82.99

$

Usually ships in 2-12 days

0

2

Murray 26X250MA

Screw
(Superseded to 703994)

$4.49

$

In Stock, only 3 left!

0

3

Murray 015X84MA

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

4

Murray 165X121MA

Spring, Extension

$11.99

$

Usually ships in 2-12 days

0

5

Murray 15X121

Nut, Flange

$9.99

$

In Stock, only 1 left!

0

6

Murray 094856

Pulley

$

$

Currently unavailable

7

Murray 009X52MA

Bolt, Shoulder

$6.49

$

In Stock, only 2 left!

0

8

Murray 094055E701MA

Bracket, Rear Suspension

$13.99

$

Usually ships in 2-12 days

0

9

Murray 091590

Pulley, Idler

$28.99

$

In Stock, only 1 left!

0

10

Murray 037X92MA

Belt, Secondary

$27.99

$

In Stock, Qty 5

0

11

Murray 094810

Pulley, Idler

$

$

Currently unavailable

12

Murray 037X93MA

Belt, Primary

$64.99

$

In Stock, only 1 left!

0

13

Murray 015X84MA

Nut, Hex
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

14

Murray 166X42MA

Spring, Torsion

$4.99

$

In Stock, Qty 10

0

15

Murray 094129

Shaft, Splined

$21.99

$

In Stock, only 1 left!

0

16

Murray 165X113MA

Spring

$6.99

$

Usually ships in 2-12 days

0

17

Murray 009X39MA

Bolt, Shoulder

$6.49

$

In Stock, Qty 10

0

18

Murray 94703

Link, Bell Crank

$

$

Currently unavailable

19

Murray 094130MA

Spacer

$5.99

$

In Stock, only 3 left!

0

20

Murray 094137MA

Pad, Friction

$6.99

$

In Stock, Qty 10

0

21

Murray 094128E700MA

Plate, Suspension
(Superseded to 7300878BMYP)

$15.99

$

Usually ships in 2-12 days

0

22

Murray 017X45MA

Washer

$

$

Not available

23

Murray 095004MA

Knob

$7.49

$

In Stock, only 1 left!

0

24

Murray 009X51MA

Bolt, Shoulder

$4.99

$

In Stock, Qty 17

0

25

Murray 166X43MA

Spring, Torsion

$4.99

$

In Stock, only 3 left!

0

26

Murray 94695

Bracket, Left Lift
(Superseded to 791118)

$4.99

$

In Stock, Qty 10

0

27

Murray 094064

Pin, Hanger

$

$

Currently unavailable

28

Murray 094611E701MA

Link, Left Lift

$48.99

$

Usually ships in 2-12 days

0

29

Murray 17X103MA

Washer

$4.99

$

In Stock, Qty 7

0

30

Murray 094053E701MA

Link, Lift

$35.99

$

In Stock, only 1 left!

0

31

Murray 0031X4MA

Pin, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

32

Murray 030X20MA

Pin, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

33

Murray 015X79MA

Nut, Flange
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

34

Murray 092140E700

Bracket, Cover

$

$

Currently unavailable

35

Murray 094808E700

Crank, Bell

$

$

Currently unavailable

36

Murray 094601E701

Bracket, Bell Crank

$12.99

$

In Stock, only 1 left!

0

37

Murray 17X124MA

Washer

$4.49

$

Usually ships in 2-12 days

0

38

Murray 094702E700

Idler, Arm

$

$

Currently unavailable

39

Murray 094809MA

Guide, Belt

$5.49

$

Usually ships in 2-12 days

0

40

Murray 01X111MA

Bolt, Idler Pulley

$4.49

$

In Stock, only 1 left!

0

41

Murray 26X277MA

Screw

$4.99

$

Usually ships in 2-12 days

0

42

Murray 0025X7MA

Screw
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

43

Murray 93349 Z

Guide, Belt

$

$

Currently unavailable

44

Murray 94645

Cover, Left Pulley

$

$

Currently unavailable

45

Murray 94643E700

Bracket, Pulley Cover

$

$

Not available

46

Murray 166X41MA

Spring

$4.99

$

Usually ships in 2-12 days

0

47

Murray 26X249MA

Screw

$

$

Not available

48

Murray 094694E700

Bracket, Right Lift

$

$

Currently unavailable

49

Murray 165X79MA

Spring, Extension

$6.49

$

In Stock, Qty 10

0

50

Murray 94698

Brake Assembly, Right

$

$

Currently unavailable

51

Murray 094699E700

Plate, Brake Arm

$

$

Currently unavailable

52

Murray 94697

Brake Assembly, Left

$1.49

$

Usually ships in 2-12 days

0

53

Murray 094717E700

Bracket, Left Rear Gauge Wheel

$

$

Not available

54

Murray 017X91 Z

Washer

$

$

Currently unavailable

55

Murray 031X11MA

Ring, Locking

$4.49

$

Usually ships in 2-12 days

0

56

Murray 002X53MA

Bolt, Carriage
(Superseded to 703159)

$3.99

$

In Stock, Qty 20+

0

57

Murray 092683MA

Wheel, Gauge

$15.99

$

In Stock, Qty 9

0

58

Murray 94701

Arm, Idler

$

$

Currently unavailable

59

Murray 092104E701MA

Bracket, Hinge

$9.99

$

Usually ships in 2-12 days

0

60

Murray 092159ZMA

Rod, Deflector

$

$

Not available

61

Murray 028X23MA

Push On Cap
(Superseded to 703948)

$4.49

$

In Stock, Qty 15

0

62

Murray 015X88MA

Nut, Flange
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

63

Murray 166X34MA

Spring, Torsion

$9.49

$

Usually ships in 2-12 days

0

64

Murray 092100MA

Deflector, Chute

$93.99

$

Usually ships in 2-12 days

0

65

Murray 094716E701

Bracket, Right Rear Gauge Wheel

$

$

Not available

66

Murray 094025MA

BOLT, Gauge Wheel

$11.99

$

In Stock, only 2 left!

0

67

Murray 095180E700

Bracket, Front Gauge Wheel

$

$

Currently unavailable

68

Murray 17X103MA

Washer

$4.99

$

In Stock, Qty 7

0

69

Murray 094693E700MA

Bracket, Front Deck
(Superseded to 7300802DYP)

$66.99

$

Usually ships in 2-12 days

0

70

Murray 92424

Guide, Belt

$49.99

$

Usually ships in 2-12 days

0

71

Murray 0031X4MA

Pin, Cotter
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

72

Murray 094996MA

Rod, Roller

$

$

Not available

73

Murray 094604E700

Stiffener

$

$

Currently unavailable

74

Murray 690539E701MA

Bracket, Suspension

$54.99

$

Usually ships in 2-12 days

0

75

Murray 094158ZMA

Rod, Suspension Bracket

$28.99

$

In Stock, only 1 left!

0

76

Murray 091925MA

Spacer

$12.99

$

In Stock, only 2 left!

0

77

Murray 092137MA

Roller

$32.99

$

Usually ships in 2-12 days

0

78

Murray 030X49MA

Pin, Cotter

$4.49

$

In Stock, Qty 12

0

79

Murray 092574

Housing, Jackshaft

$

$

Currently unavailable

80

Murray 94715

Guard, Horn

$

$

Currently unavailable

81

Murray 092466MA

Adapter, Blade

$9.99

$

In Stock, Qty 10

0

82

Murray 94692E700

Blade

$

$

Currently unavailable

83

Murray 17X166MA

Washer, Belleville

$13.99

$

In Stock, only 3 left!

0

84

Murray 17X165MA

Washer

$16.99

$

In Stock, only 1 left!

0

85

Murray 15X100MA

Nut

$3.99

$

In Stock, Qty 5

0

86

Murray 94825

Baffle

$

$

Currently unavailable

87

Murray 17X198

Washer

$

$

Currently unavailable

88

Murray 019X35MA

Washer

$4.99

$

In Stock, only 2 left!

0

89

Murray 094937E701

Housing, Blade

$

$

Currently unavailable
