50572x89A - Yard King 50" Lawn Tractor (2000) Deck Assembly (part 2) Parts Diagram

50" Lawn Tractor

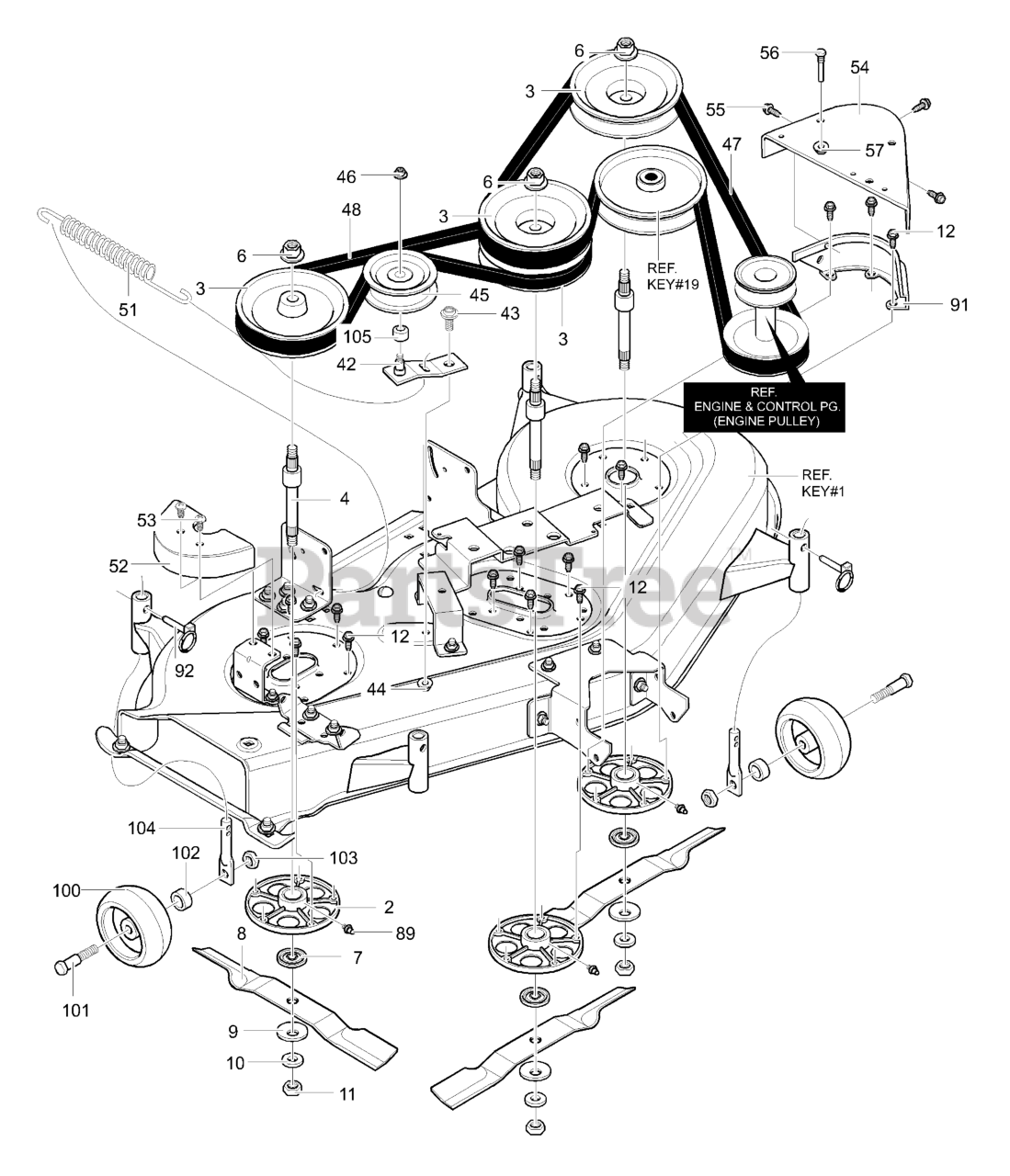

Deck Assembly (part 2) Parts Diagram

  • Title

2

Murray 690488MA

HOUSING, JACKSHAFT

$

$

Not available

3

Murray 95310

PULLEY, SPLIT STEEL

$

$

Currently unavailable

4

Murray 095402

SHAFT, SPLINED JACKSHAFT

$

$

Not available

6

Murray 711626

NUT

$

$

Currently unavailable

7

Murray 095416

HUB, BLADE ADAPTOR

$23.99

$

In Stock, only 1 left!

0

8

Murray 94692

BLADE
(Superseded to 690355)

$3.49

$

Usually ships in 2-12 days

0

9

Murray 17X166MA

WASHER

$13.99

$

In Stock, Qty 6

0

10

Murray 17X165MA

WASHER

$16.99

$

In Stock, Qty 5

0

11

Murray 15X100MA

NUT

$3.99

$

In Stock, Qty 6

0

12

Murray 0025X7MA

BOLT
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

42

Murray 94701-821

IDLER ARM, SECONDARY

$5.49

$

Usually ships in 2-12 days

0

43

Murray 711613MA

BOLT

$1.99

$

Usually ships in 2-12 days

0

44

Murray 711622

NUT

$

$

Currently unavailable

45

Murray 690452

PULLEY, IDLER

$10.99

$

Usually ships in 2-12 days

0

46

Murray 711920MA

NUT

$4.49

$

Usually ships in 2-12 days

0

47

Murray 710533

BELT, PRIMARY

$19.99

$

Usually ships in 2-12 days

0

48

Murray 710532

BELT, SECONDARY

$

$

Not available

51

Murray 690123MA

SPRING, EXTENSION

$5.99

$

Usually ships in 2-12 days

0

52

Murray 94607-821

COVER, RIGHT PULLEY

$

$

Currently unavailable

53

Murray 711620

SCREW

$

$

Not available

54

Murray 94645-821

COVER, LEFT PULLEY

$

$

Currently unavailable

55

Murray 780055MA

SCREW
(Superseded to 703985)

$4.49

$

In Stock, Qty 15

0

56

Murray 711745

SCREW, GUIDE

$

$

Currently unavailable

57

Murray 710026

NUT

$

$

Not available

89

Murray 690501MA

ZERK, GREASE

$5.49

$

Usually ships in 2-12 days

0

91

Murray 690221-821

BRACKET, PULLEY COVER

$

$

Currently unavailable

92

Murray 711797MA

PIN, LYNCH

$

$

Not available

100

Murray 092265MA

WHEEL, GAUGE

$15.99

$

Usually ships in 2-12 days

0

101

Murray 711657MA

BOLT

$13.99

$

Usually ships in 2-12 days

0

102

Murray 95188MA

SPACER

$10.99

$

Usually ships in 2-12 days

0

103

Murray 590

NUT
(Superseded to 703996)

$4.99

$

In Stock, only 4 left!

0

104

Murray 95187-821

ROD, GAUGE

$

$

Currently unavailable

105

Murray 690369MA

SPACER 1/2 TO 17MM

$5.99

$

In Stock, Qty 6

0
