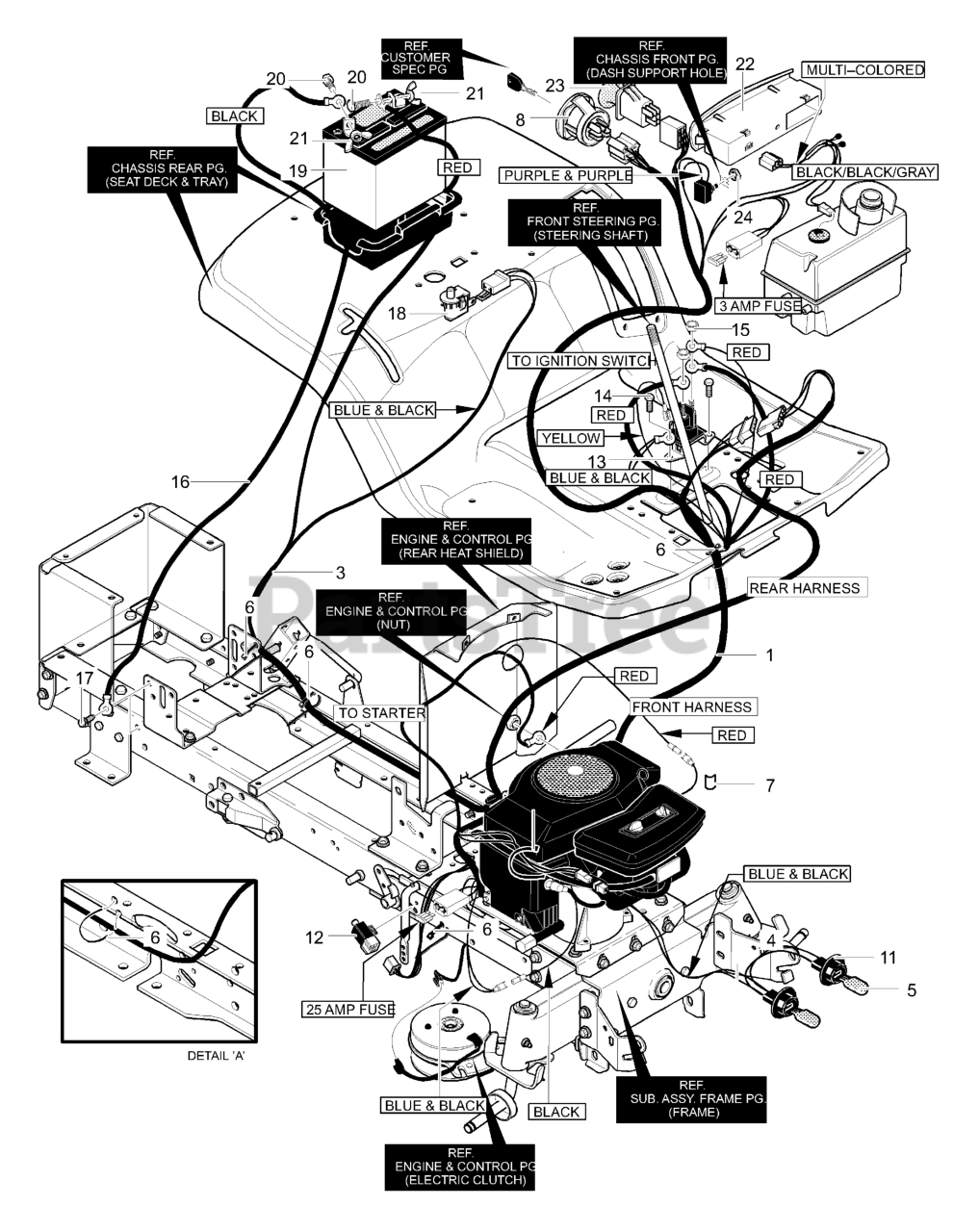

50572x89A - Yard King 50" Lawn Tractor (2000) Electrical Assembly Parts Diagram

50" Lawn Tractor

Electrical Assembly Parts Diagram

  • Title
1

Murray 94992

HARNESS, WIRE

$

$

Currently unavailable

3

Murray 094741

HARNESS, REAR WIRE

$

$

Currently unavailable

4

Murray 094780

WIRE ASSEMBLY, HEADLIGHTS

$

$

Currently unavailable

5

Murray 090084MA

BULB, LIGHT
(Superseded to 1677371SM)

$30.99

$

In Stock, only 1 left!

0

6

Murray 57444

TIE, CABLE BLACK

$

$

Not available

6

Murray 57444

TIE, CABLE BLACK

$

$

Not available

7

Murray 055939MA

WIRE CLIP, ADHESIVE

$4.99

$

Usually ships in 2-12 days

0

8

Murray 094762

SWITCH, IGNITION

$24.99

$

Usually ships in 2-12 days

0

11

Murray 092372

SOCKET, LAMP

$7.99

$

In Stock, Qty 11

0

12

Murray 094136MA

SWITCH, LIMIT

$12.99

$

In Stock, Qty 5

0

13

Murray 094613

SOLENOID

$27.99

$

In Stock, Qty 9

0

14

$1.99

$

Usually ships in 2-12 days

0

15

$

$

Currently unavailable

16

Murray 710228

WIRE, GROUND

$47.99

$

In Stock, only 3 left!

0

17

$1.99

$

Usually ships in 2-12 days

0

18

Murray 094159MA

SWITCH, SEAT
(Superseded to 7023354YP)

$12.99

$

Usually ships in 2-12 days

0

19

Murray 092693

BATTERY

$

$

Currently unavailable

20

Murray 711680

BOLT
(Superseded to 711682)

$7.49

$

In Stock, only 1 left!

0

21

Murray 711636

WINGNUT

$

$

Not available

22

Murray 094893

ELECTRONIC DIAGNOSTIC

$

$

Currently unavailable

23

Murray 094927

SWITCH, PTO

$37.99

$

Usually ships in 2-12 days

0

24

Murray 711376

NUT, PLASTIC

$1.49

$

Usually ships in 2-12 days

0
