50572x89A - Yard King 50" Lawn Tractor (2000) Mower Suspension Assembly Parts Diagram

50" Lawn Tractor

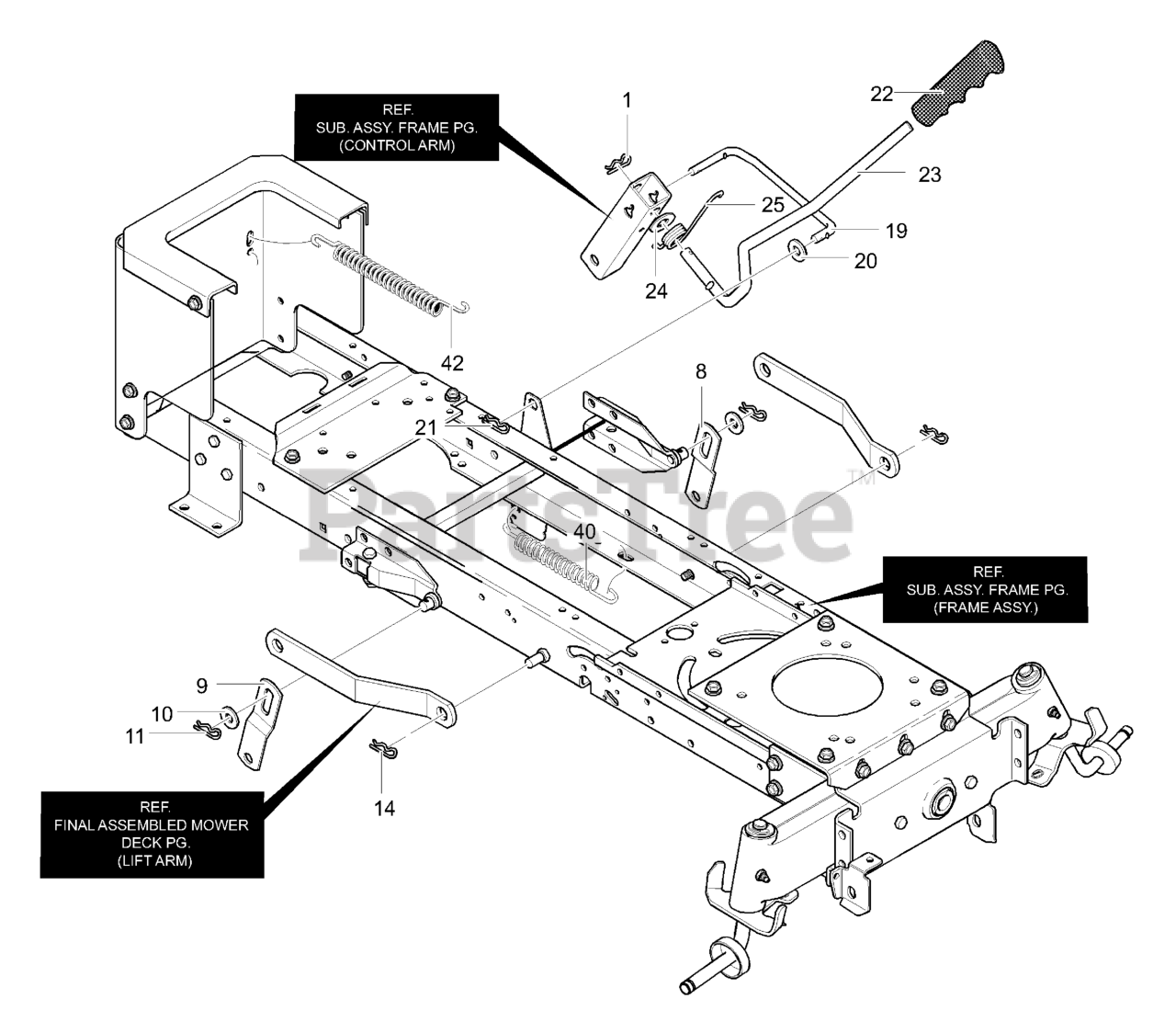

Mower Suspension Assembly Parts Diagram

  • Title

1

Murray 711676

PIN, HAIR

$

$

Currently unavailable

8

Murray 94858-821

LINK, LIFT LH EXTENDED

$5.49

$

Usually ships in 2-12 days

0

9

Murray 94857-821

LINK, LIFT RH EXTENDED

$5.49

$

Usually ships in 2-12 days

0

10

Murray 711603

WASHER, FLAT

$12.99

$

Usually ships in 2-12 days

0

11

Murray 711676

PIN, HAIR

$

$

Currently unavailable

14

Murray 711676

PIN, HAIR

$

$

Currently unavailable

19

Murray 95285

LINK LIFT HANDLE

$

$

Not available

20

Murray 711617

WASHER, FLAT

$5.49

$

In Stock, only 2 left!

0

21

Murray 711676

PIN, HAIR

$

$

Currently unavailable

22

Murray 094497

GRIP, LIFT
(Superseded to 094497MA)

$6.49

$

Usually ships in 2-12 days

0

23

Murray 690532

HANDLE, LIFT

$335.99

$

Usually ships in 2-12 days

0

24

Murray 711616

WASHER, FLAT

$

$

Not available

25

Murray 710111

TORSION SPRING

$18.99

$

Usually ships in 2-12 days

0

40

Murray 165X117MA

SPRING, EXTENSION

$15.99

$

In Stock, only 1 left!

0

42

Murray 165X137

SPRING, EXTENSION

$

$

Currently unavailable
