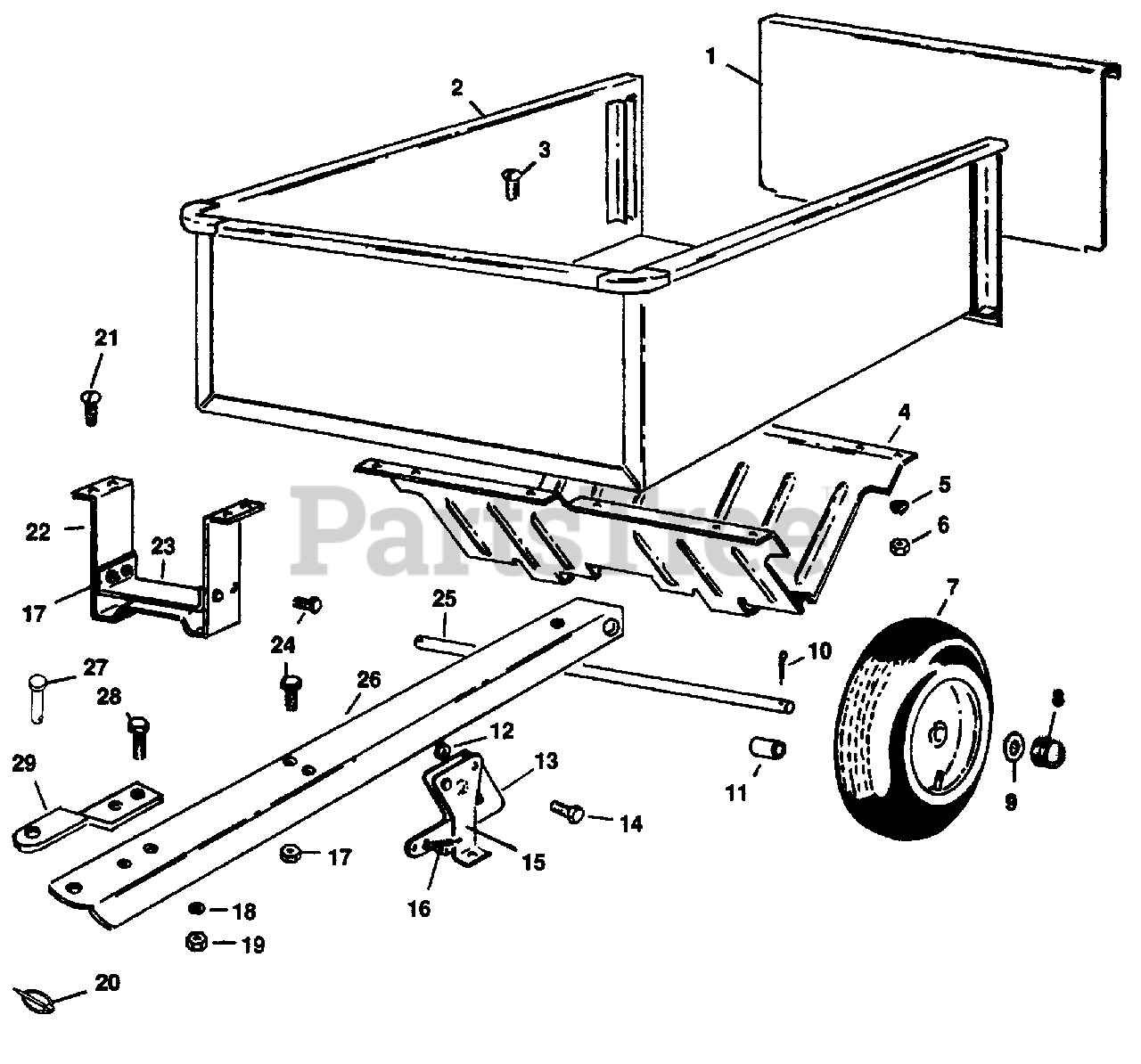

50580 - Gravely Cart for GEM Tractor CART GEM Parts Diagram

Cart for GEM Tractor

CART GEM Parts Diagram

  • Title

1

Gravely 051190

Gate, Tail

$

$

Not available

2

Gravely 051191

Body, Cart

$

$

Not available

3

Gravely 039066

Screw, Mach 5/16-18x1.00 Rd Hd
(Superseded to 06117700)

$

$

Not available

4

Gravely 051192

Holder, Axle

$

$

Not available

5

Gravely 120214

Washer, Lock 5/16 Reg.
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 120376

Nut, Hex 5/16-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 16

0

7

Gravely 051193

Assembly, Wheel

$

$

Not available

8

Gravely 051194

Cap, Hub

$

$

Not available

9

Gravely 014998

Race, Bearing Thrust
(Superseded to 06413300)

$5.99

$

In Stock, only 2 left!

0

10

Gravely 103387

Pin, Cotter .125x1.50
(Superseded to 06714300)

$1.99

$

In Stock, only 1 left!

0

11

Gravely 051195

Spacer

$

$

Not available

12

Gravely 419454

Nut, Lock 1/4-20
(Superseded to 06500832)

$4.99

$

In Stock, only 2 left!

0

13

Gravely 051196

Latch

$

$

Not available

14

Gravely 180020

Bolt, Hex 1/4-20x.750
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0

15

Gravely 051197

Post, Latch

$

$

Not available

16

Gravely 051198

Spring, Latch

$

$

Not available

17

Gravely 456004

Nut, Lock 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

18

Gravely 120382

Washer, Lock 3/8 Reg.
(Superseded to 06300116)

$0.99

$

In Stock, Qty 18

0

19

Gravely 120377

Nut, Hex 3/8-16
(Superseded to 06500917)

$0.99

$

In Stock, only 1 left!

0

20

Gravely 023468

Pin, Klik
(Superseded to 07014500)

$5.99

$

Usually ships in 4-12 days

0

21

Gravely 160776

Screw, Machine 3/8-16x.75
(Superseded to 21057600)

$

$

Not available

22

Gravely 051199

Support, Front

$

$

Not available

23

Gravely 051200

Brace

$

$

Not available

24

Gravely 180120

Bolt, Hex 3/8-16x.75
(Superseded to 05901702)

$1.49

$

In Stock, only 2 left!

0

25

Gravely 051201

Axle

$

$

Not available

26

Gravely 051202

Drawbar
(Superseded to 20995700)

$

$

Not available

27

Gravely 023682

Pin, Clevis .500x1.330
(Superseded to 06814700)

$5.99

$

Usually ships in 4-12 days

0

28

Gravely 180122

Bolt, Hex 3/8-16x1.00
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 051203

Bracket, Hitch

$

$

Not available

NS

Gravely 020934

Decal, Warning
(Superseded to 05200900)

$

$

Not available
