506 (590-506-100) - Cub Cadet 48" Mulching Kit for 2000 Series Mowers 48" Series 2000 Deck Parts Diagram

48" Mulching Kit for 2000 Series Mowers

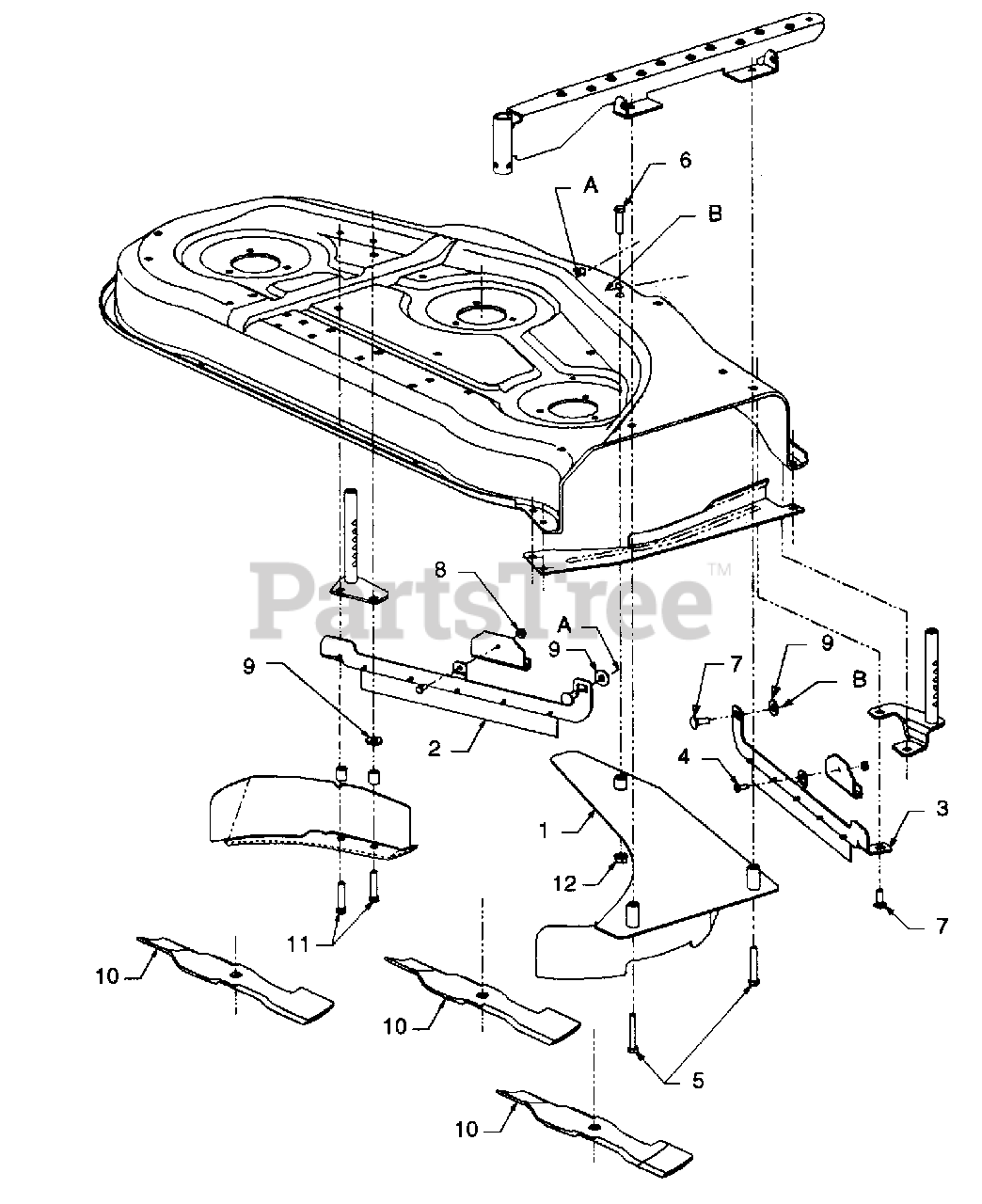

48" Series 2000 Deck Parts Diagram

  • Title

1

Cub Cadet 603-0395

Baffle Ass'y 48" Mulching
(Superseded to 603-0395-0637)

Variations

603-0395-0498

Cub Cadet 603-0395-0498

USE 603-0395-0637 BAFFLE ASSY - OLD CUB YELLOW (0498)

$

$

Not available

603-0395-0637

Cub Cadet 603-0395-0637

BAFFLE ASSY-48 MUL - POWDER BLACK (0637)

$

$

Not available

$

$

2

Cub Cadet 603-0439

Bracket Ass'y Rubber Flap/Mtg LH

Variations

603-0439-0498

Cub Cadet 603-0439-0498

USE 603-0439 BRACKET ASSY-W/F - OLD CUB YELLOW (0498)

$198.99

$

Usually ships in 3-6 days

0

603-0439-0637

Cub Cadet 603-0439-0637

USE 603-0439 BRACKET ASSY-W/F - POWDER BLACK (0637)

$198.99

$

Usually ships in 3-6 days

0

$198.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 603-0440

Bracket Ass'y Rubber Flap/Mtg RH

Variations

603-0440-0637

Cub Cadet 603-0440-0637

USE 603-0440 BRACKET ASSY-W/F - POWDER BLACK (0637)

$194.99

$

Usually ships in 3-6 days

0

$194.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-0751

Screw, Hex Cap, 1/4-20 X .62 GR5

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-3011

Screw, Hex Cap, 3/8-16 X 2-1/4 GR5

$7.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0520

Screw, Hex Cap, 3/8-16 X 1.50 GR5

$4.99

$

In Stock, Qty 20+

0

7

Cub Cadet 710-3168

Bolt, Carriage, 3/8-16 X 1.0 GR5

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 712-3027

Nut, Hex Flange Lock, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 736-3052

Washer, Flat, .406 X 1.0 X .105

$4.99

$

In Stock, Qty 20+

0

10

Cub Cadet 742-3028

Blade, Mulching, 16.5 Lg
(Superseded to 759-3856)

$

$

Not available

11

Cub Cadet 710-3037

Screw, Hex Cap, 3/8-16 X 1-3/4 GR5
(Superseded to 710-0347)

$5.49

$

In Stock, Qty 20+

0

12

Cub Cadet 712-0431

Nut, Hex Flange Lock 3/8-16
(Superseded to 912-0431)

$5.49

$

In Stock, Qty 20+

0
