506 (590-506-100) - Cub Cadet 48" Mulching Kit for GT and SGT Series Mowers 48" GT And SGT Deck Parts Diagram

48" Mulching Kit for GT and SGT Series Mowers

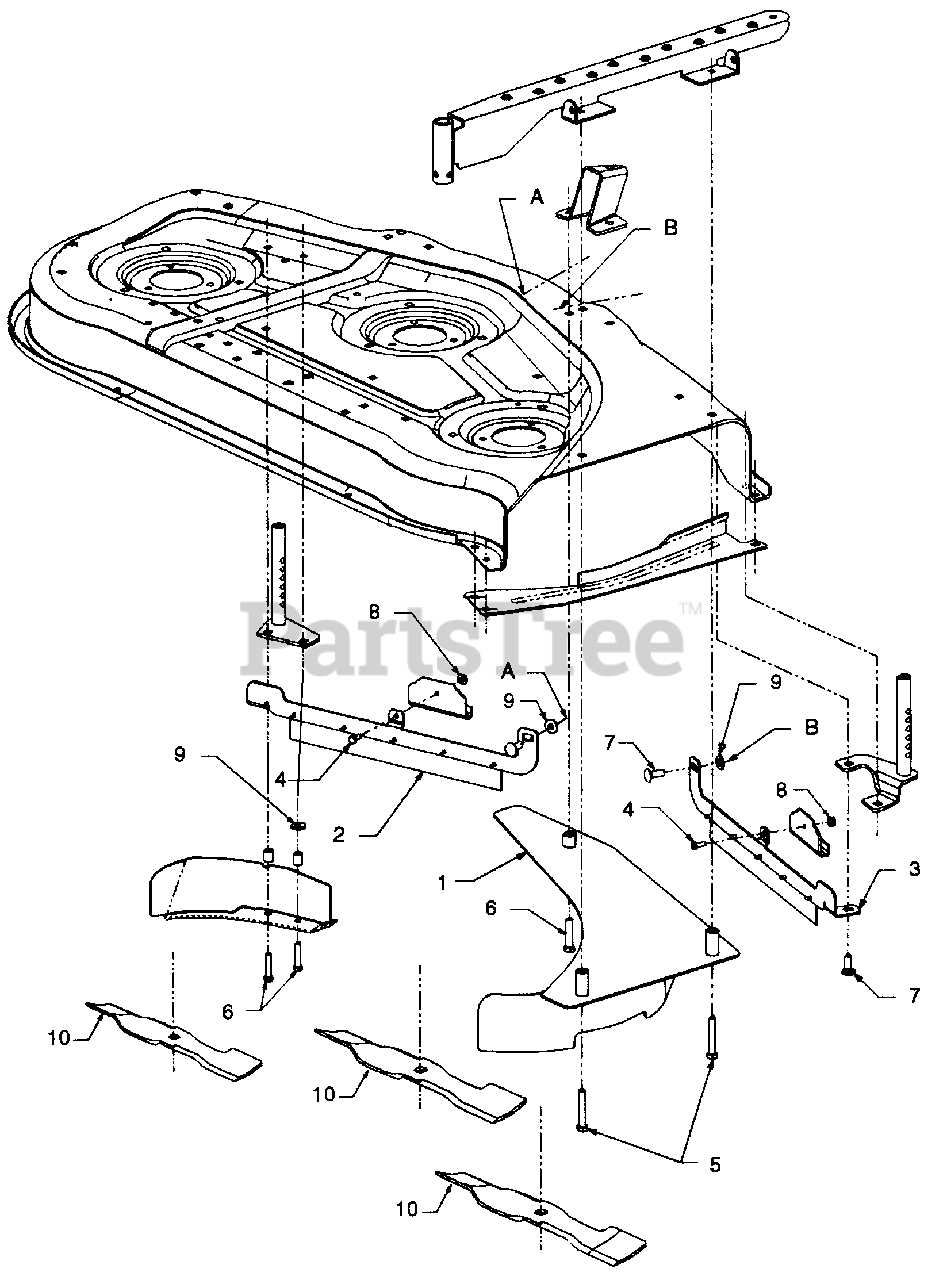

48" GT And SGT Deck Parts Diagram

  • Title

1

Cub Cadet 603-0395

Baffle Ass'y, 48" Mulching
(Superseded to 603-0395-0637)

Variations

Cub Cadet 603-0395-0498

USE 603-0395-0637 BAFFLE ASSY - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 603-0395-0637

BAFFLE ASSY-48 MUL - POWDER BLACK (0637)

$

$

Not available

$

$

2

Cub Cadet 603-0439

Bracket Ass'y, Rubber Flap/Mtg LH

Variations

Cub Cadet 603-0439-0498

USE 603-0439 BRACKET ASSY-W/F - OLD CUB YELLOW (0498)

$173.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-0439-0637

USE 603-0439 BRACKET ASSY-W/F - POWDER BLACK (0637)

$173.99

$

Usually ships in 3-6 days

0

$173.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 603-0440

Bracket Ass'y, Rubber Flap/Mtg RH

Variations

Cub Cadet 603-0440-0637

USE 603-0440 BRACKET ASSY-W/F - POWDER BLACK (0637)

$170.99

$

Usually ships in 3-6 days

0

$170.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-0751

Screw, Hex Cap, 1/4-20 X .62 GR5

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 710-3011

Screw, Hex Cap, 3/8-16 X 2-1/4 GR5

$6.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-3037

Screw, Hex Cap, 3/8-16 X 1-3/4 GR5
(Superseded to 710-0347)

$4.99

$

In Stock, Qty 20+

0

7

Cub Cadet 710-3168

Bolt, Carriage, 3/8-16 X 1.0 GR5

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 712-3027

Nut, Hex Flange Lock, 1/4-20
(Superseded to 912-3027)

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 736-3052

Washer, Flat, .406 X 1.0 X .105

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 742-3028

Blade, Mulching, 16.5 Lg
(Superseded to 759-3856)

$39.99

$

Usually ships in 3-6 days

0
