5064 - Lawn-Boy Walk-Behind Mower (SN: 500000001 - 599999999) (1975) MODEL 5064, 19" SPECIAL WITH GRASSCATCHER-PUSH Parts Diagram

Walk-Behind Mower

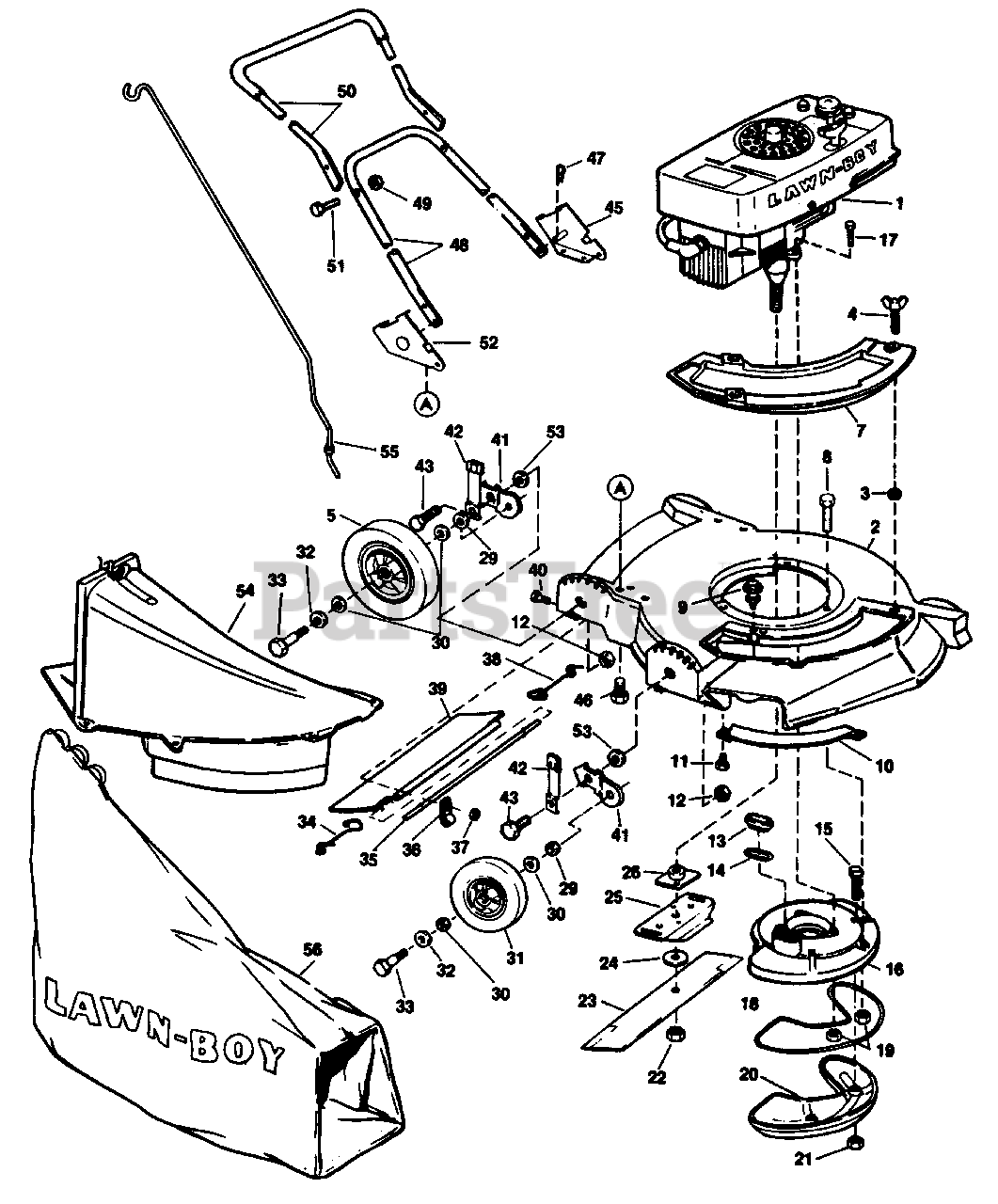

MODEL 5064, 19" SPECIAL WITH GRASSCATCHER-PUSH Parts Diagram

  • Title

1

See Page 34 for Engine, Magneto and Carburetor Parts List. See Note #2 at bottom of this page.

Note: NOTE #2. A complete engine, part no. 679904, D-433 is available for replacement on this mower. See page 34 for a complete list of replacement parts for this engine.

$

$

Not available

2

Lawn-Boy 681228

Housing-19" (Not Shown)
(Superseded to 684521)

Note: 19" Models Only

$

$

Not available

2

Lawn-Boy 681236

Housing & Cover Plate-21"
(Superseded to 684522)

Note: 21" Models only

$618.99

$

In Stock, only 1 left!

0

3

Lawn-Boy 604604

Grommet (Also Included in 679652 19" Housing)
(Superseded to 94-1610)

Note: 19" Models Only 21" Models only

$0.99

$

In Stock, Qty 20+

0

4

Lawn-Boy 606733

Screw (Also for 19" Models)

Note: 19" Models Only 21" Models only

$8.99

$

In Stock, Qty 7

0

5

Lawn-Boy 678637

Wheel & Tire-8"
(Superseded to 131-4520)

$33.99

$

In Stock, only 3 left!

0

6

Lawn-Boy 602680

Bolt-Rear Wheel

$

$

Not available

7

Lawn-Boy 607560

Cover-Chute (19" & 21" Models)
(Superseded to 95-7052)

$30.99

$

In Stock, only 2 left!

0

8

Lawn-Boy 604862

Screw-Muffler Plate to Housing

$

$

Not available

9

Lawn-Boy 607809

Bolt
(Superseded to 614677)

$3.99

$

In Stock, Qty 20+

0

10

Lawn-Boy 608159

Toe Bar-19" Models

Note: 19" Models Only

$

$

Not available

10

Lawn-Boy 608175

Toe Bar-21" Models

Note: 21" Models only

$75.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 608418

Screw
(Superseded to 46-6811)

$3.49

$

In Stock, Qty 7

0

12

Lawn-Boy 603773

Nut

$2.99

$

In Stock, Qty 20+

0

13

Lawn-Boy 602717

Sleeve-Muffler Gasket

$2.99

$

In Stock, Qty 20+

0

14

Lawn-Boy 604624

Gasket-Exhaust

$9.99

$

In Stock, Qty 8

0

15

Lawn-Boy 604036

Screw-Muffler to Muffler Plate
(Superseded to 607847)

$

$

Not available

17

Lawn-Boy 607715

Screw

$

$

Not available

18

Lawn-Boy 604516

Gasket-Muffler

$

$

Not available

19

Lawn-Boy 608311

Nut

$2.99

$

Usually ships in 3-6 days

0

20

Lawn-Boy 604024

Muffler

$

$

Not available

21

Lawn-Boy 608559

Nut-Muffler

$

$

Not available

22

Lawn-Boy 603164

Nut-Blade
(Superseded to 121-3611)

$5.99

$

In Stock, Qty 7

0

23

Lawn-Boy 603703

Blade-21"
(Superseded to 612543-03)

Note: 21" Models only

$29.99

$

In Stock, Qty 20+

0

23

Lawn-Boy 603409

Blade-19"
(Superseded to 603409-03)

Note: 19" Models Only

$33.99

$

In Stock, only 4 left!

0

24

Lawn-Boy 605058

Washer (21" Models Only)

Note: 21" Models only

$5.49

$

In Stock, Qty 15

0

25

Lawn-Boy 603541

Stiffener-Blade

$

$

Not available

26

Lawn-Boy 677525

Collar & Plate Assembly

$23.99

$

In Stock, Qty 11

0

29

Lawn-Boy 603620

Washer

$5.49

$

In Stock, Qty 20+

0

30

Lawn-Boy 605255

Felt Washer

$1.49

$

In Stock, Qty 20+

0

31

Lawn-Boy 678636

Wheel & Tire-6"

$25.99

$

In Stock, Qty 5

0

32

Lawn-Boy 605256

Washer-Wheel Bolt Head

$2.99

$

In Stock, Qty 9

0

33

Lawn-Boy 603441

Bolt-Shoulder, Wheel-Front

$7.99

$

In Stock, Qty 20+

0

34

Lawn-Boy 608497

Spring-R.H.

$33.99

$

Usually ships in 3-6 days

0

35

Lawn-Boy 608160

Rod-19" Models

Note: 19" Models Only

$

$

Not available

35

Lawn-Boy 608174

Rod-21" Models

Note: 21" Models only

$

$

Not available

36

Lawn-Boy 608161

Clamp

$10.99

$

Usually ships in 3-6 days

0

37

Lawn-Boy 306477

Nut

$

$

Currently unavailable

38

Lawn-Boy 608498

Spring-L.H.

$

$

Not available

39

Lawn-Boy 608162

Shield-19" Models
(Superseded to 608868)

Note: 19" Models Only

$

$

Not available

39

Lawn-Boy 608173

Shield-21" Models
(Superseded to 608870)

Note: 21" Models only

$

$

Not available

40

Lawn-Boy 306487

Screw

$

$

Not available

41

Lawn-Boy 608833

Wheel Hgt. Adj. Bracket
(Superseded to 608833-03)

$22.99

$

In Stock, only 1 left!

0

42

Lawn-Boy 681229

Knob & Spray Ay.

$

$

Not available

43

Lawn-Boy 608835

Bolt-Shoulder
(Superseded to 610646)

$6.49

$

Usually ships in 3-6 days

0

45

Lawn-Boy 679618

Bracket-Handle-Left
(Superseded to 679704)

$

$

Not available

46

Lawn-Boy 607188

Screw

$3.49

$

In Stock, only 3 left!

0

47

Lawn-Boy 605803

Hairpin

$

$

Not available

48

Lawn-Boy 607296

Handle-Bottom
(Superseded to 611113)

$

$

Not available

49

Lawn-Boy 603447

Nut-Handle

$

$

Currently unavailable

50

Lawn-Boy 678789

Handle-Top
(Superseded to 608094)

$

$

Not available

51

Lawn-Boy 602480

Screw-Handle

$

$

Not available

52

Lawn-Boy 679617

Bracket-Handle-Right
(Superseded to 679721)

$

$

Not available

53

Lawn-Boy 608834

Washer

$15.99

$

Usually ships in 3-6 days

0

54

Lawn-Boy 679483

Chute

Note: Note: The following parts are standard equipment on Models 7024 and 5064. Accessory Grasscatcher Kit 679968 can be purchased from your Lawn-Boy dealer for Models 7084 and 5024.

$

$

Currently unavailable

55

Lawn-Boy 607561

Rod

Note: Note: The following parts are standard equipment on Models 7024 and 5064. Accessory Grasscatcher Kit 679968 can be purchased from your Lawn-Boy dealer for Models 7084 and 5024.

$

$

Not available

56

Lawn-Boy 679966

Grass Bag

Note: Note: The following parts are standard equipment on Models 7024 and 5064. Accessory Grasscatcher Kit 679968 can be purchased from your Lawn-Boy dealer for Models 7084 and 5024.

$

$

Not available
