507 (590-507-100) - Cub Cadet 54" Mulching Kit for Commercial Series Mowers 507 Mulching Attachment - 54" Commercial Series Deck Parts Diagram

54" Mulching Kit for Commercial Series Mowers

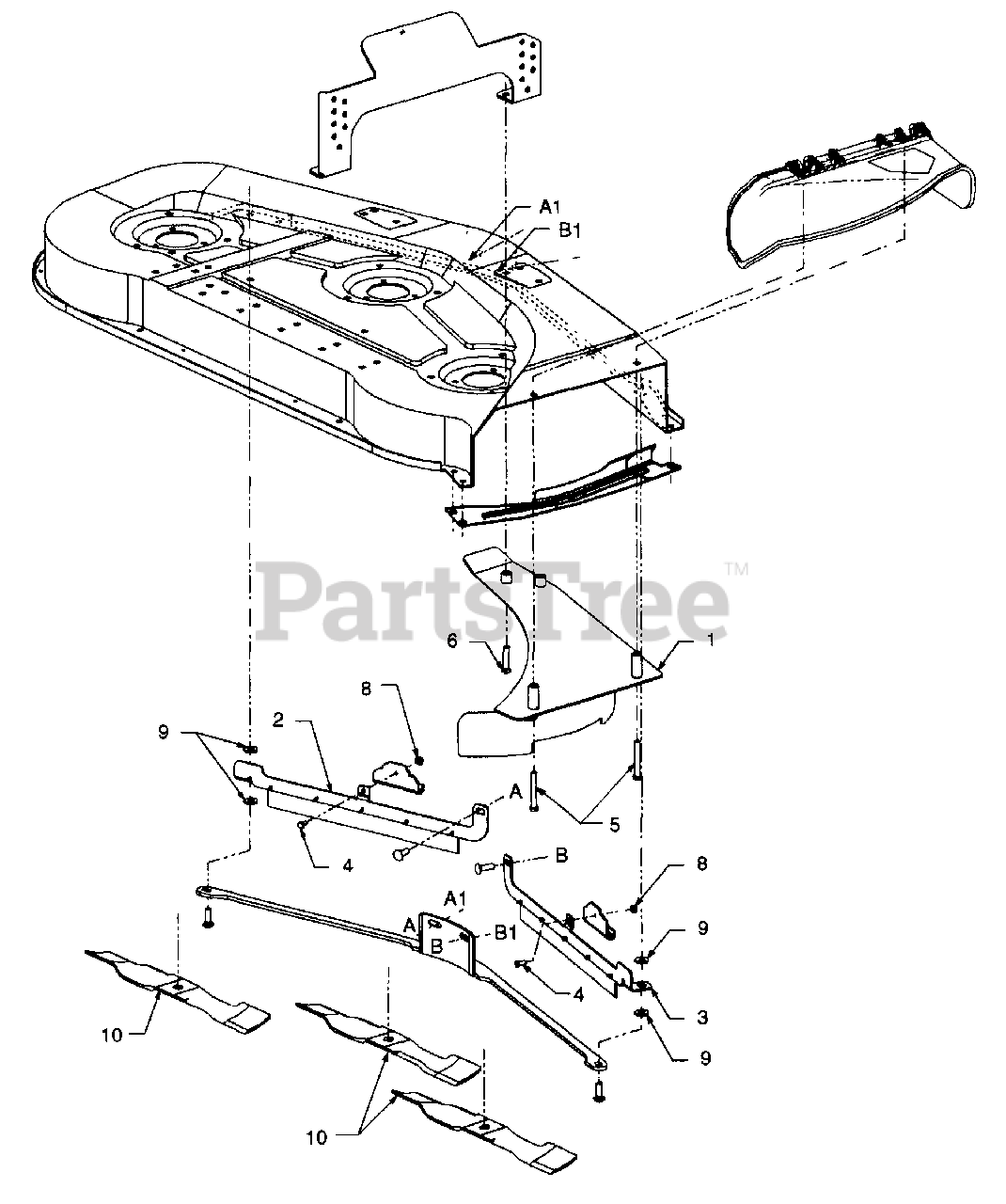

507 Mulching Attachment - 54" Commercial Series Deck Parts Diagram

  • Title

1

Cub Cadet 603-0396

Baffle Ass'y, 54" Mulching

$

$

Not available

2

Cub Cadet 603-0441

Bracket Ass'y, Rubber Flap/Mtg LH

Variations

Cub Cadet 603-0441-0637

USE 603-0441 BRACKET ASSY-W/F - POWDER BLACK (0637)

$

$

Not available

$

$

3

Cub Cadet 603-0438

Bracket Ass'y, Rubber Flap/Mtg RH

Variations

Cub Cadet 603-0438-0637

USE 603-0438 BRACKET ASSY-W/F - POWDER BLACK (0637)

$

$

Not available

$

$

4

Cub Cadet 710-0751

Screw, Hex Cap, 1/4-20 X 62 GR5

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 710-3022

Screw, Hex Cap, 3/8-16 X 2-3/4 GR5

$4.49

$

In Stock, Qty 10

0

6

Cub Cadet 710-3037

Screw, Hex Cap, 3/8-16 X 1-3/4 GR5
(Superseded to 710-0347)

$4.99

$

In Stock, Qty 20+

0

?7

Not Used in This Application

Note: Also contained in the attachment kit, but not used in this application, are the following parts: 4 pcs. - 710-3168

$

$

Not available

8

Cub Cadet 712-3027

Nut, Hex Flange Lock, 1/4-20
(Superseded to 912-3027)

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 736-3052

Washer, Flat, .406 X 1.0 X .105

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 742-3030

Blade, Mulching, 18.5 Lg
(Superseded to 759-3857)

$36.99

$

In Stock, only 4 left!

0

Cub Cadet 710-3168

Bolt - Carriage 3/8-16

$3.99

$

In Stock, Qty 20+

0
