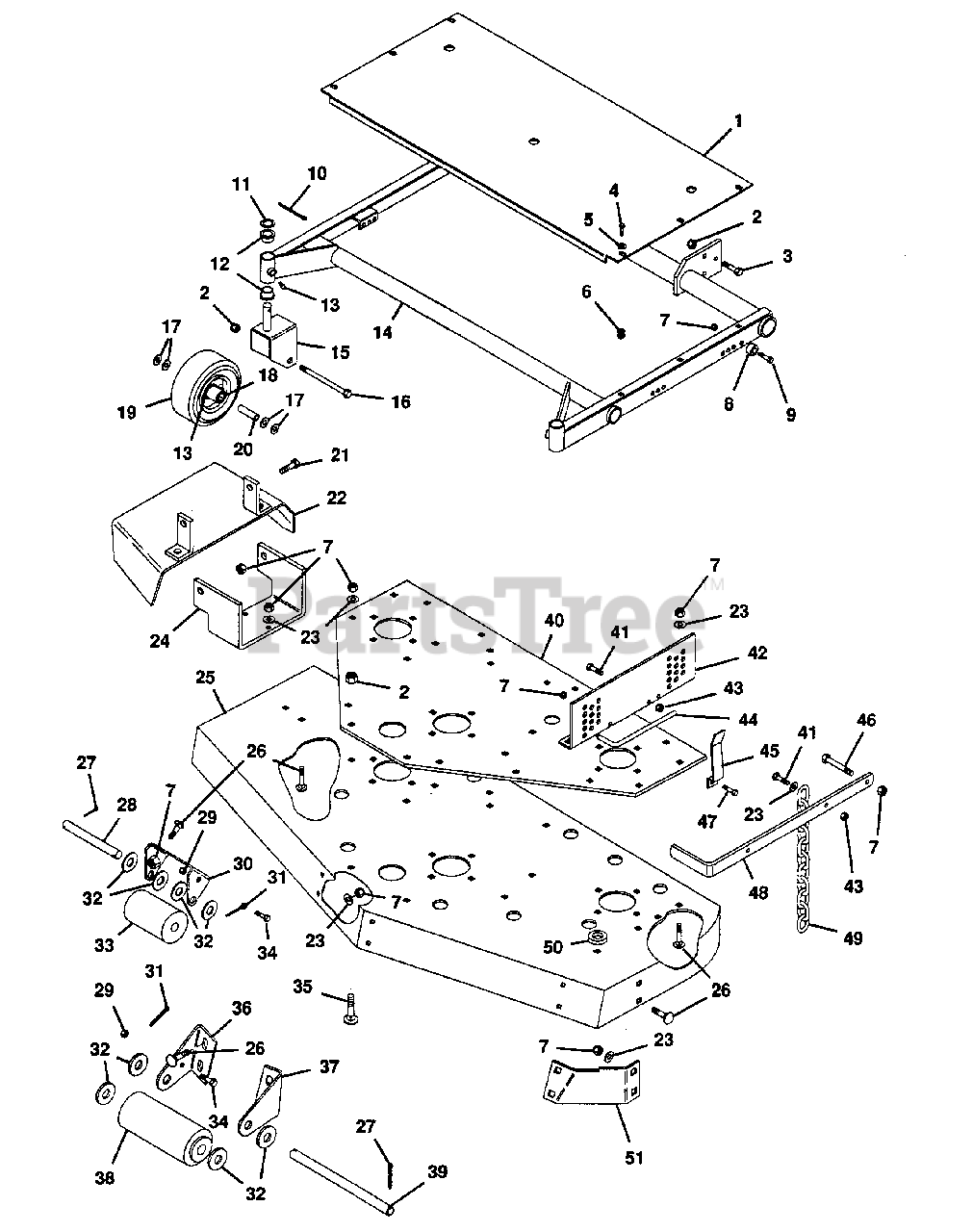

50710 - Gravely 60" Deck for Pro-Master 300 Mower MOWER FRAME Parts Diagram

60" Deck for Pro-Master 300 Mower

MOWER FRAME Parts Diagram

  • Title

1

Gravely 047551

Guard, Belt 60" PM H Series
(Superseded to 08960500)

$147.99

$

Usually ships in 4-12 days

0

2

Gravely 435507

Nut, Lock 1/2-13
(Superseded to 06500830)

$2.99

$

In Stock, Qty 20+

0

3

Gravely 180177

Bolt, Hex 1/2-13x1.50
(Superseded to 05901631)

$4.99

$

In Stock, Qty 7

0

4

Gravely 045207

Screw, 1/4-20x.50 Self Tapping
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 120392

Washer, Flat .281x.625x.065
(Superseded to 06401001)

$0.99

$

In Stock, only 3 left!

0

6

Gravely 011777

Grommet, Plastic
(Superseded to 07538100)

$1.49

$

Usually ships in 4-12 days

0

7

Gravely 456004

Nut, Lock 3/8-16
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

8

Gravely 050396

Bush., St. .391x.621x.676 Stl.
(Superseded to 08814100)

$7.99

$

Usually ships in 4-12 days

0

9

Gravely 180126

Bolt, Hex 3/8-16x1.50
(Superseded to 05901928)

$1.99

$

In Stock, Qty 10

0

10

Gravely 137253

Pin, Cotter .187x1.62
(Superseded to 06705800)

$2.99

$

Usually ships in 4-12 days

0

11

Gravely 019340

Race, Bearing Thrust
(Superseded to 06435300)

$5.49

$

In Stock, Qty 11

0

12

Gravely 018355

Bush., Flg. 1.03x1.75x.750 Ny.
(Superseded to 05520100)

$11.99

$

In Stock, Qty 20+

0

13

Gravely 411027

Fitting, Lube 1/4-28
(Superseded to 07012600)

$

$

Not available

14

Gravely 050979

Weldment, Mower Frame
(Superseded to 59002500)

$

$

Not available

15

Gravely 050973

Weldment, Caster Fork
(Superseded to 09066400)

$197.99

$

In Stock, only 1 left!

0

16

Gravely 445608

Bolt, Hex 1/2-13x5.50
(Superseded to 05901632)

$7.49

$

Usually ships in 4-12 days

0

17

Gravely 415543

Washer, Flat .531 x 1.25 x .100
(Superseded to 06441000)

$3.49

$

In Stock, only 4 left!

0

18

Gravely 037823

Bearing, Gauge Wheel
(Superseded to 05408900)

$20.99

$

In Stock, only 3 left!

0

19

Gravely 045205

Wheel, Gauge
(Superseded to 07130100)

$119.99

$

In Stock, only 4 left!

0

20

Gravely 011950

Bush., St. .506x.748x3.34 Stl.
(Superseded to 09023500)

$27.99

$

Usually ships in 4-12 days

0

21

Gravely 180122

Bolt, Hex 3/8-16x1.00
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

22

Gravely 035668

Weldment, Discharge Chute
(Superseded to 09090300)

$

$

Not available

23

Gravely 120394

Washer, Flat .406x.812x.065
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 045381

Bracket, Discharge Chute
(Superseded to 08968300)

$

$

Not available

25

Gravely 045546

Weldment, 60" Mower
(Superseded to 08969400)

$

$

Not available

26

Gravely 120915

Bolt, 3/8-16x1.00 Rd Hd Sq Nk

$

$

Not available

27

Gravely 179128

Pin, Cotter .25x1.0
(Superseded to 06713000)

$1.99

$

Usually ships in 4-12 days

0

28

Gravely 045211

Rod
(Superseded to 08966900)

$58.99

$

Usually ships in 4-12 days

0

29

Gravely 419454

Nut, Lock 1/4-20
(Superseded to 06500832)

$5.49

$

In Stock, only 2 left!

0

30

Gravely 045210

Bracket, Roller
(Superseded to 08966853)

$

$

Not available

31

Gravely 103422

Pin, Cotter .25x2.0
(Superseded to 06713100)

$4.99

$

Usually ships in 4-12 days

0

32

Gravely 131016

Washer, Flat .656x1.312x.095
(Superseded to 06401118)

$2.99

$

In Stock, Qty 20+

0

33

Gravely 015351

Roller, Gage
(Superseded to 07520100)

$27.99

$

Usually ships in 4-12 days

0

34

Gravely 180020

Bolt, Hex 1/4-20x.75
(Superseded to 05901716)

$1.49

$

In Stock, Qty 12

0

35

Gravely 126475

Bolt, 1/2-13x1.00 Rd Hd Sq Nk
(Superseded to 06224600)

$3.99

$

In Stock, only 3 left!

0

36

Gravely 045567

Bracket, Roller R.H.
(Superseded to 08970000)

$35.99

$

Usually ships in 4-12 days

0

37

Gravely 045568

Bracket, Roller L.H.
(Superseded to 08970153)

$52.99

$

Usually ships in 4-12 days

0

38

Gravely 031390

Roller, Gauge
(Superseded to 08803300)

$38.99

$

In Stock, only 2 left!

0

39

Gravely 024795

Shaft, Center Roller
(Superseded to 08598800)

$61.99

$

In Stock, only 1 left!

0

40

Gravely 040536

Plate, Support
(Superseded to 08936300)

$159.99

$

Usually ships in 4-12 days

0

41

Gravely 180079

Bolt, Hex 5/16-18x1.00
(Superseded to 05901701)

$1.99

$

In Stock, only 4 left!

0

42

Gravely 038516

Bracket, Mower Support L.H.
(Superseded to 08927953)

$105.99

$

Usually ships in 4-12 days

0

42

Gravely 038515

Bracket, Mower Support R.H.
(Superseded to 08927853)

$105.99

$

Usually ships in 4-12 days

0

43

Gravely 419455

Nut, Lock 5/16-18
(Superseded to 06500820)

$1.49

$

In Stock, Qty 20+

0

44

Gravely 038514

Pin, Mower Locking
(Superseded to 08875900)

$19.99

$

In Stock, only 2 left!

0

45

Gravely 041201

Spring, Pin
(Superseded to 08876100)

$

$

Not available

46

Gravely 180120

Bolt, Hex 3/8-16x.75
(Superseded to 05901702)

$1.99

$

In Stock, Qty 11

0

47

Gravely 034402

Bolt, Hex 3/8-16x2.00
(Superseded to 05942200)

$3.49

$

In Stock, only 1 left!

0

48

Gravely 035684

Bar, Lift
(Superseded to 08923700)

$

$

Not available

49

Gravely 038620

Chain, Height Adjustment
(Superseded to 08867400)

$

$

Not available

50

Gravely 014672

Bush., St. .406x.750x.188 Stl.
(Superseded to 03488200)

$6.49

$

In Stock, Qty 5

0

51

Gravely 031354

Baffle, Front
(Superseded to 08905253)

$

$

Not available

Gravely 033926

Decal, Danger Hand
(Superseded to 05350300)

$

$

Not available

Gravely 033927

Decal, Danger Foot
(Superseded to 05350100)

$11.99

$

Usually ships in 4-12 days

0

Gravely 033928

Decal, Warning Eye
(Superseded to 05350200)

$33.99

$

Usually ships in 4-12 days

0

Gravely 049720

Decal, Width of Cut
(Superseded to 07852100)

$10.99

$

Usually ships in 4-12 days

0

Gravely 043003

Decal, Gravely Logo
(Superseded to 05210700)

$

$

Not available
