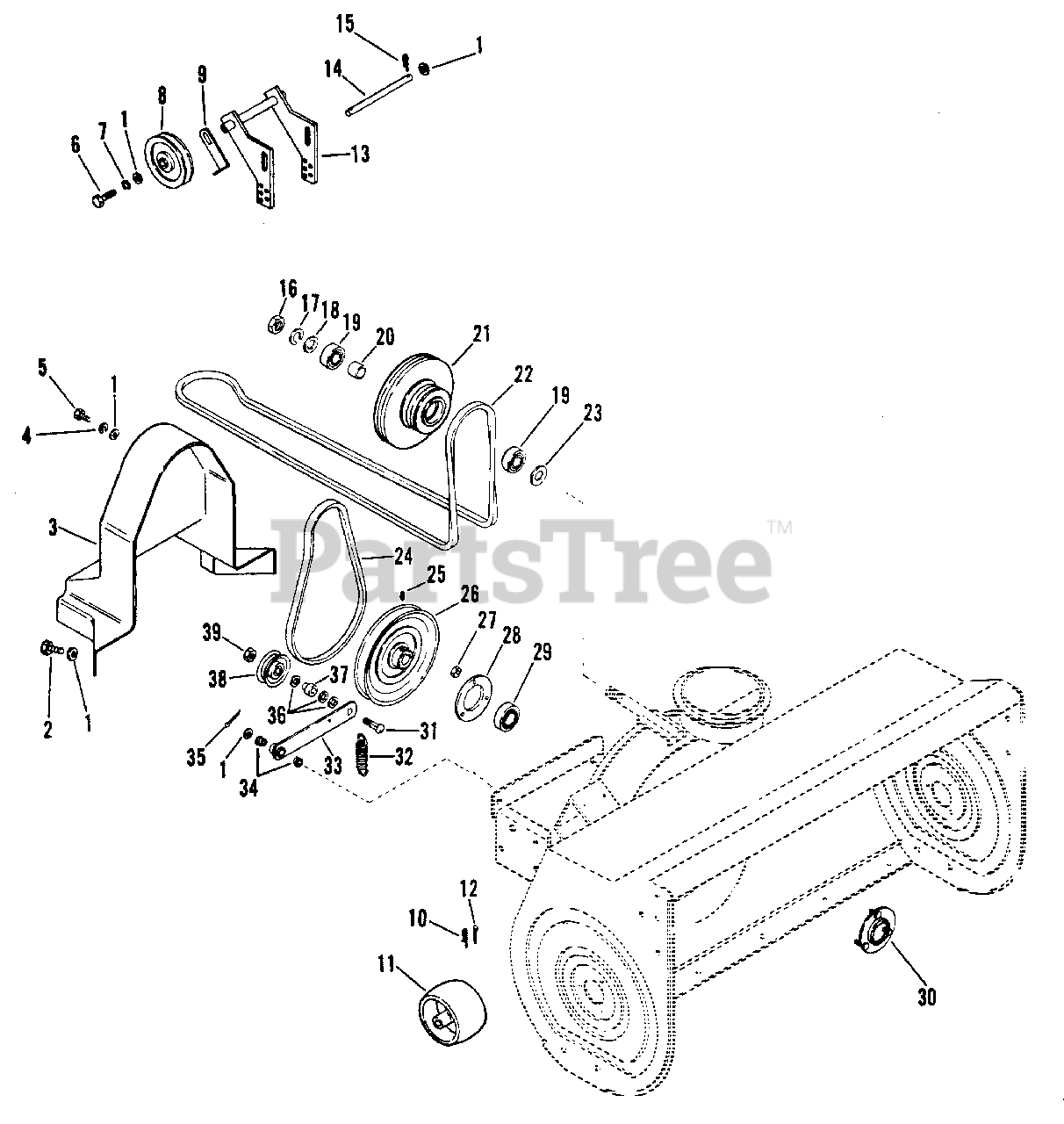

50719 - Gravely 40" Snow Blower for GEM Tractor BELT DRIVE Parts Diagram

40" Snow Blower for GEM Tractor

BELT DRIVE Parts Diagram

  • Title

1

Gravely 120394

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

2

Gravely 050818

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.99

$

In Stock, Qty 20+

0

3

Gravely 050819

BELT GUARD
(Superseded to 03459100)

$

$

Not available

4

Gravely 120379

WSHR-LK .313 SP
(Superseded to 06304800)

$

$

Not available

5

Gravely 180077

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

6

Gravely 180126

BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.99

$

In Stock, Qty 17

0

7

Gravely 120382

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 036844

SHV, .38"ID X 4.00"OD V-IDLER
(Superseded to 07300528)

$40.99

$

In Stock, only 2 left!

0

9

Gravely 050824

BELT RETAINER
(Superseded to 03461600)

$

$

Not available

10

Gravely 036075

PIN-HAIR INT .08X.38X1.42 YWZC
(Superseded to 06700224)

$2.99

$

In Stock, only 2 left!

0

11

Gravely 050825

ROLLER
(Superseded to 02745400)

$16.99

$

In Stock, Qty 20+

0

12

Gravely 121222

PIN-CTR .09X.75 EXTPRSQCT YWZ
(Superseded to 06706900)

$0.99

$

In Stock, only 2 left!

0

13

Gravely 050827

IDLER BRACKET
(Superseded to 03459200)

$

$

Not available

14

Gravely 050828

PIN
(Superseded to 03461500)

$

$

Not available

15

Gravely 036185

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 426897

NUT-JAM .75-10 YWZC
(Superseded to 06537700)

$2.99

$

In Stock, Qty 20+

0

17

Gravely 036225

STAR WASHER
(Superseded to 03559000)

$20.99

$

Usually ships in 4-12 days

0

18

Gravely 050829

WSHR-FL-STL .765X1.250X.062
(Superseded to 06416700)

$

$

Not available

19

Gravely 050830

BRG-BALL .750X1.781X.61
(Superseded to 05412000)

$15.99

$

In Stock, Qty 20+

0

20

Gravely 050831

SPACER 1.00 X .770/.760 X .813
(Superseded to 03519000)

$5.99

$

Usually ships in 4-12 days

0

21

Gravely 050832

SHEAVE
(Superseded to 03459600)

$

$

Not available

22

Gravely 050833

V-BELT, HA-WRAPPED
(Superseded to 07217400)

$82.99

$

Usually ships in 4-12 days

0

23

Gravely 036917

WSHR-FL-STL.812X1.50X.135YWZC
(Superseded to 06401140)

$1.99

$

In Stock, Qty 20+

0

24

Gravely 050834

V-BELT, HA-COGGED
(Superseded to 07217500)

$31.99

$

Usually ships in 4-12 days

0

25

Gravely 050835

SCR-SET .32-18X.50 SKH
(Superseded to 06003200)

$

$

Not available

26

Gravely 036877

PLY-V 7.50 X .75 W/KEY SALEM
(Superseded to 07309400)

$

$

Not available

27

Gravely 424215

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

28

Gravely 036874

BEARING FLANGE
(Superseded to 03185900)

$23.99

$

In Stock, only 3 left!

0

29

Gravely 036876

BRG-BALL 1.0X2.0X.56 (1641)
(Superseded to 05416000)

$16.99

$

In Stock, only 2 left!

0

30

Gravely 036875

BEARING FLANGE
(Superseded to 03186000)

$46.99

$

Usually ships in 4-12 days

0

31

Gravely 126411

BLT-RDHDSQNK .38-16X1.50 G5YZ
(Superseded to 06200416)

$4.99

$

In Stock, Qty 20+

0

32

Gravely 036850

SG-TENS .090X.75X3.50 WLD 34
(Superseded to 08312200)

$35.99

$

Usually ships in 4-12 days

0

33

Gravely 036847

IDLER ARM
(Superseded to 03518800)

$

$

Not available

34

Gravely 036241

BSHG-FLG .372X.500X.312X.625NY
(Superseded to 05503600)

$2.49

$

In Stock, Qty 20+

0

35

Gravely 177923

PIN-CTR .12X.75 EXTPRSQCT YWZ
(Superseded to 06707300)

$0.99

$

In Stock, Qty 6

0

36

Gravely 120396

WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$1.49

$

In Stock, Qty 20+

0

37

Gravely 036849

SPACER -FLANGED .390X.500X.781
(Superseded to 03114500)

$10.99

$

In Stock, Qty 12

0

38

Gravely 049114

KIT, FLAT IDLER

$

$

Not available

39

Gravely 413534

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0
