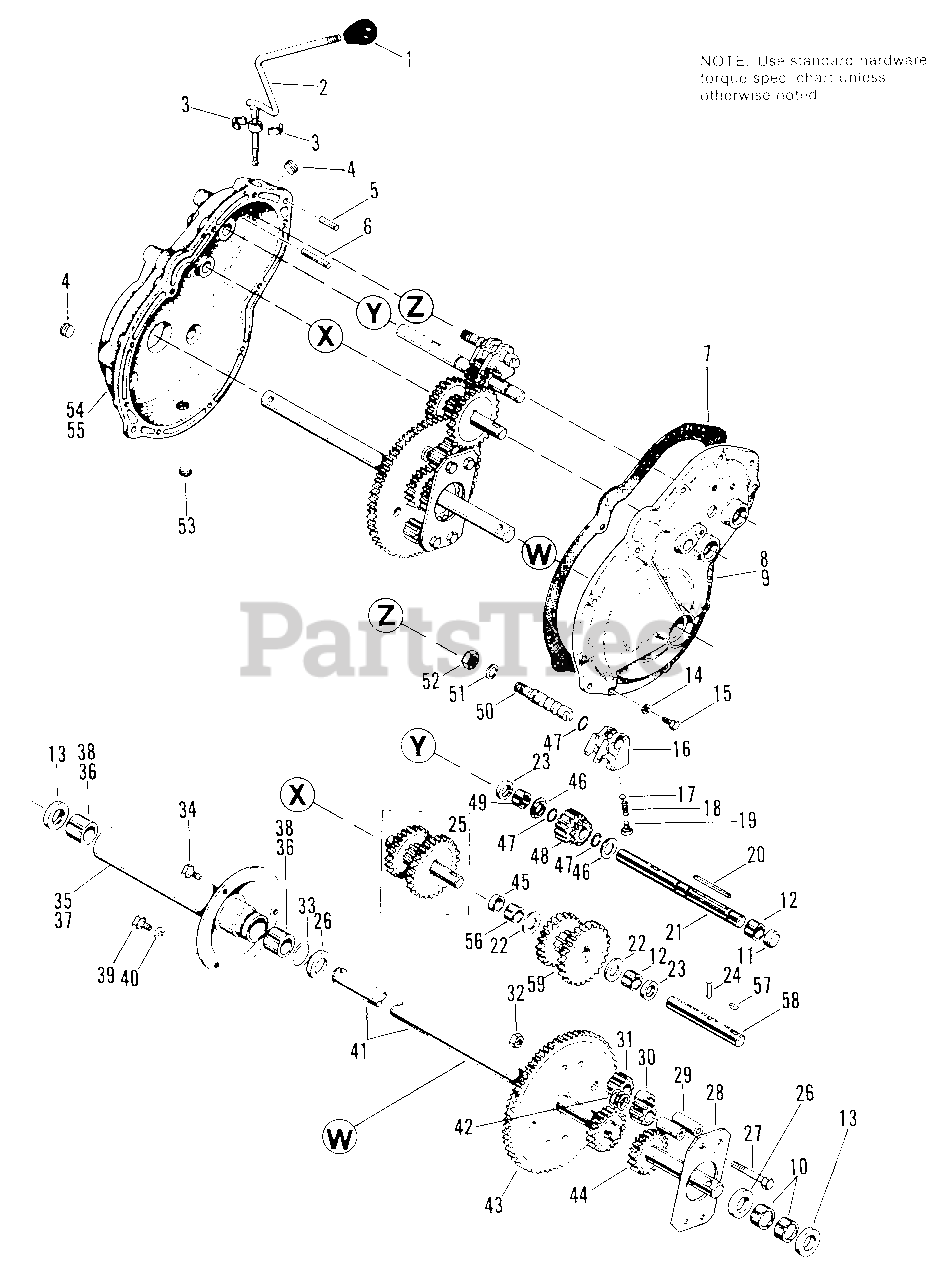

508 (1600356) - AGCO Rear-Engine Riding Mower, 8hp Transmission Group Parts Diagram

Rear-Engine Riding Mower, 8hp

Transmission Group Parts Diagram

  • Title

1

Simplicity 2172038SM

KNOB
(Superseded to 1732470SM)

$20.99

$

In Stock, only 4 left!

0

2

Simplicity 176619

ROD ASSY., Shift

$

$

Not available

3

Simplicity 2101042SM

BUSHING, Ball, Half

$

$

Not available

4

Simplicity 2830676SM

PLUG, Pipe

$

$

Not available

5

Simplicity 2818113

PIN, Roll, 3/8 Dia. x 1

$

$

Not available

6

Simplicity 917904

PIN, Roll, 5/16 Dia. x 3

$

$

Not available

7

Simplicity 2156103SM

GASKET

$20.99

$

Usually ships in 2-12 days

0

8

Simplicity 1652526

COVER ASSY., Gear Case

$

$

Not available

9

Simplicity 1650306

COVER, Gear Case

$

$

Not available

10

Simplicity 1657807

BUSHING

$

$

Not available

11

Simplicity 163074

PLUG, Expansion

$

$

Not available

12

Simplicity 163022

BUSHING

$

$

Not available

13

Simplicity 2163012SM

SEAL, Oil

$18.99

$

Usually ships in 2-12 days

0

14

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 5025170SM)

$4.49

$

In Stock, only 1 left!

0

15

Simplicity 2821977

CAPSCREW, Hex Hd., 5/16-18 x 1-1/4

$

$

Not available

16

Simplicity 1713-64

FORK, Shift, Hi-Lo

$

$

Not available

17

Simplicity 2805359

BALL

$

$

Not available

18

Simplicity 2171456SM

SPRING

$9.49

$

Usually ships in 2-12 days

0

19

Simplicity 2830614

CAPSCREW, Hex Hd., 5/16-18 x 5/16

$

$

Not available

20

Simplicity 2170453SM

KEY

$15.99

$

Usually ships in 2-12 days

0

21

Simplicity 175270

SHAFT, Pulley

$

$

Not available

22

Simplicity 2156089

WASHER

$

$

Not available

23

Simplicity 2156084SM

SEAL, Oil

$16.99

$

Usually ships in 2-12 days

0

24

Simplicity 2156292

PIN, Dowel

$

$

Not available

25

Simplicity 2165009SM

SHAFT & GEAR ASSY.

$475.99

$

Usually ships in 2-12 days

0

26

Simplicity 175311

WASHER

$

$

Not available

27

Simplicity 2821972

CAPSCREW, Hex Hd., 3/8-16 x 2-1/2

$

$

Not available

28

Simplicity 156002

PLATE, Diff.

$

$

Not available

29

Simplicity 2121083SM

SPINDLE

$13.99

$

In Stock, only 1 left!

0

30

Simplicity 2121084SM

SPACER

$13.99

$

Usually ships in 2-12 days

0

31

Simplicity 2158579SM

PINION

$

$

Not available

32

Simplicity 1930645SM

LOCKNUT, Hex, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

33

Simplicity 2156099SM

SEAL, Oil

$3.49

$

In Stock, only 1 left!

0

34

Simplicity 2161130

CAPSCREW, Special

$

$

Not available

35

Simplicity 175305

HOUSING ASSY., Axle

Note: Used on Mfg. No. 990963.

$

$

Not available

36

Simplicity 1657807

BUSHING

$

$

Not available

37

Simplicity 177811

HOUSING ASSY., Axle

Note: Used on Mfg. No. 990998 & 991000.

$

$

Not available

38

Simplicity 1657807

BUSHING

$

$

Not available

39

Simplicity 2819357

CAPSCREW, Hex Hd., 3/8-16 x 7/8

$

$

Not available

40

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 16

0

41

Simplicity 175314

AXLE ASSY., L.H.

$

$

Not available

42

Simplicity 2162085SM

SPRING

$6.99

$

In Stock, Qty 6

0

43

Simplicity 175328

GEAR ASSY., Drive

$

$

Not available

44

Simplicity 175312

AXLE ASSY., R.H.

$

$

Not available

45

Simplicity 163050

PLUG, Expansion

$

$

Not available

46

Simplicity 2156085

WASHER

$

$

Not available

47

Simplicity 1729260SM

RING, Retaining

$5.99

$

Usually ships in 2-12 days

0

48

Simplicity 2156087SM

PINION ASSY., Hi-Lo

$

$

Not available

49

Simplicity 2156072SM

BEARING

$25.99

$

In Stock, only 1 left!

0

50

Simplicity 165004

SHAFT, Shift, Reverse, Lo

$

$

Not available

51

Simplicity 2818199

LOCKWASHER, 7/16

$

$

Not available

52

Simplicity 2818213

NUT, Hex, Full, 7/16-14

$

$

Not available

53

Simplicity 2801653

PLUG, Pipe

$

$

Not available

54

Simplicity 175329

GEAR CASE ASSY.

$

$

Not available

55

Simplicity 175330

CASE, Gear

$

$

Not available

56

Simplicity 163022

BUSHING

$

$

Not available

57

Simplicity 2810224SM

KEY, Woodruff, 5/32 x 5/8

$3.99

$

In Stock, only 1 left!

0

58

Simplicity 2165009SM

SHAFT, Brake

$475.99

$

Usually ships in 2-12 days

0

59

Simplicity 2165009SM

CLUSTER ASSY., Gear

$475.99

$

Usually ships in 2-12 days

0
