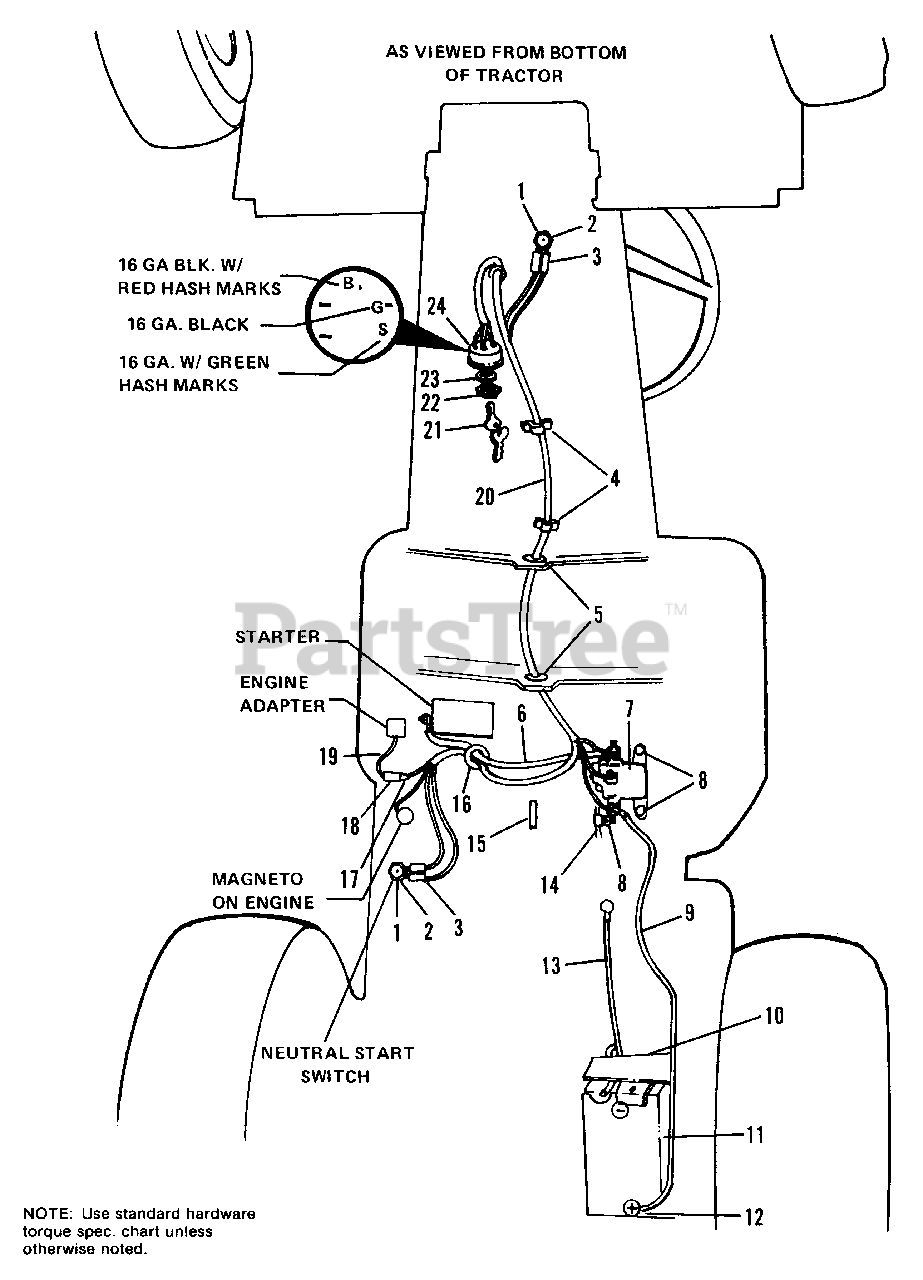

508 (1690069) - AGCO Rear-Engine Riding Mower, 8hp Electrical Group Parts Diagram

Rear-Engine Riding Mower, 8hp

Electrical Group Parts Diagram

  • Title

1

Simplicity 2177522SM

SWITCH, Safety

$49.99

$

In Stock, Qty 10

0

2

Simplicity 1930647

PALNUT, 9/16-18
(Superseded to 2830647SM)

$3.99

$

Usually ships in 2-12 days

0

3

Simplicity 1651222

CONNECTOR. Body

$

$

Not available

4

Simplicity 176912

CLIP, Wire

$

$

Not available

5

Simplicity 176833

GROMMET

$

$

Not available

6

Simplicity 177982

CABLE ASSY. (Solenoid to Starter)

$

$

Not available

7

Simplicity 2122216SM

SOLENOID

$

$

Not available

8

Simplicity 2829000

SCREW, Hex, Washer Hd., Taptite, 1/4-20 x 3/8

$

$

Not available

9

Simplicity 177981

CABLE ASSY. (Battery to Solenoid)

$

$

Not available

10

Simplicity 176623

SUPPORT ASSY., Battery

$

$

Not available

11

Simplicity 177390

BATTERY & CLIP ASSY.

$

$

Not available

12

Simplicity 2172744SM

STRAP, Rubber

$18.99

$

In Stock, only 3 left!

0

13

Simplicity 2176975

CABLE ASSY. (Battery neg. to ground)

$

$

Not available

14

Simplicity 154247

CLAMP

$

$

Not available

15

Simplicity 1651124

GROMMET

$

$

Not available

16

Simplicity 1650793SM

GROMMET

$2.99

$

In Stock, only 1 left!

0

17

Simplicity 930612

SCREW, Pan Hd., Phillips, Taptite, #8-32 x 3/4

$

$

Not available

18

Simplicity 178171

RESISTOR

$

$

Not available

19

Simplicity 178172

WIRE ASSY.

$

$

Not available

20

Simplicity 1650862

HARNESS, Wiring

$

$

Not available

21

Simplicity 1717163SM

KEY & RING ASSY.

$8.99

$

In Stock, Qty 12

0

22

Simplicity 2122234SM

NUT, Special
(Superseded to 704229)

$3.49

$

Usually ships in 2-12 days

0

23

Simplicity 2818906

LOCKWASHER, Int. 5/8

$

$

Not available

24

Simplicity 2178280SM

SWITCH, Ignition
(Superseded to 421064MA)

$32.99

$

In Stock, only 1 left!

0
