509 - Weed Eater String Trimmer, Electric, Type 2 Electric Trimmer Assembly Type 2 Parts Diagram

String Trimmer, Electric, Type 2

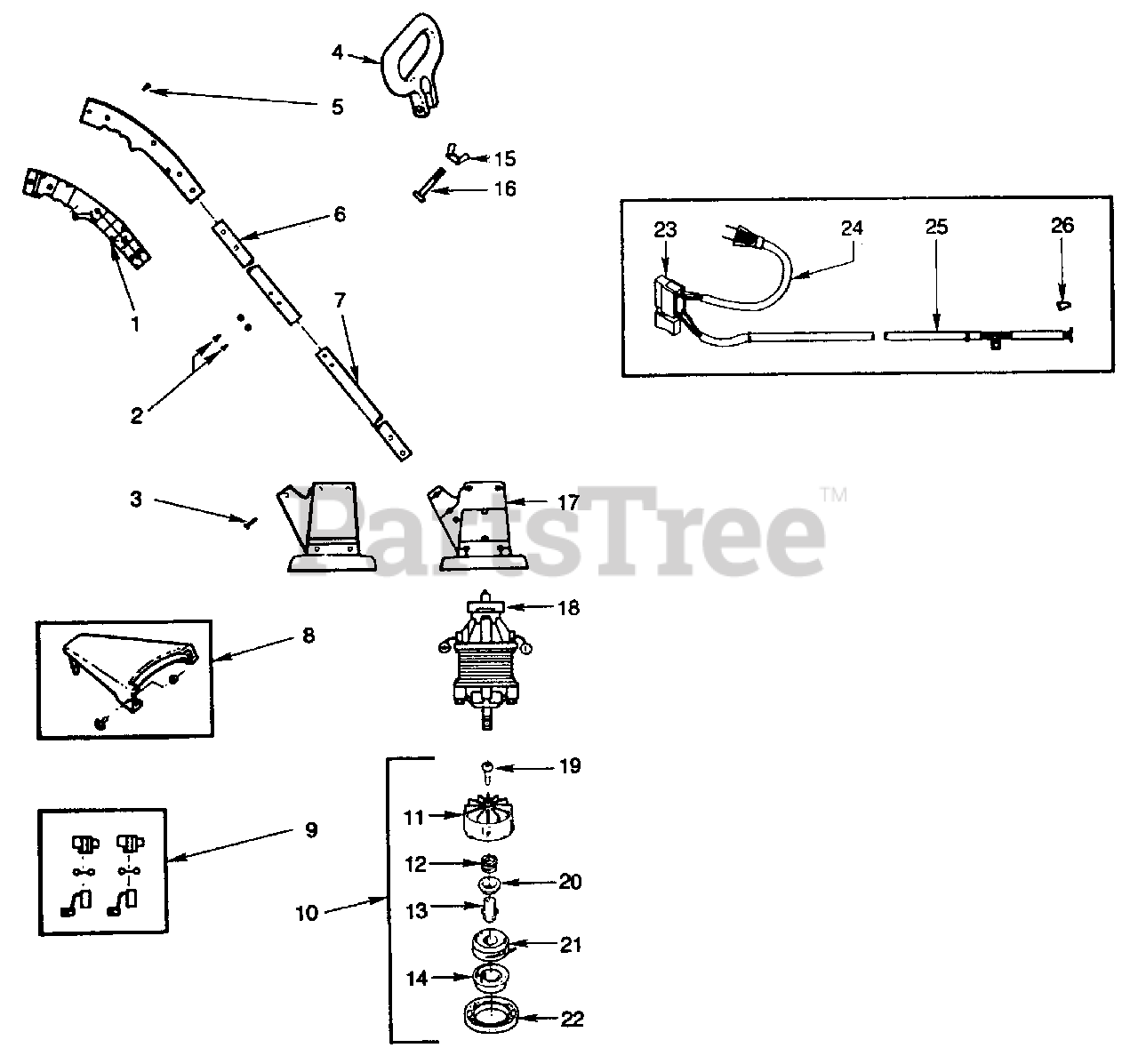

Electric Trimmer Assembly Type 2 Parts Diagram

  • Title

1

Poulan 93741

TRIGGER HANDLE SET

$

$

Not available

2

Poulan 92626

TUBE FASTNER KIT

$

$

Not available

3

Poulan 92624

SCREW

$

$

Not available

4

Poulan 93734

ASSIST HANDLE

$

$

Not available

5

Poulan 90827

SCREW

$

$

Not available

6

Poulan 93186

TUBE,UPPER

$

$

Not available

7

Poulan 346754

TUBE, LOWER

$

$

Not available

8

Poulan 701522

LINE LIMITER ASSEMBLY

$

$

Not available

9

Poulan 92652

BRUSH KIT

$

$

Not available

10

Poulan 93767

TAP-N-GO HEAD ASSEMBLY

$

$

Not available

11

Poulan 92673

HUB W/LINE SAVER

$

$

Not available

12

Poulan 92067

SPRING

$

$

Not available

13

Poulan 92069

DRIVE GEAR

$

$

Not available

14

Poulan 93387

RELEASE BUTTON

$

$

Not available

15

Poulan 92049

WING NUT

$

$

Not available

16

Poulan 92638

BOLT

$

$

Not available

17

Poulan 321611

MOTOR HOUSING SET

$

$

Not available

18

Poulan 347415

MOTOR

$

$

Not available

19

Poulan 92672

DRIVE ADAPTOR

$

$

Not available

20

Poulan 92068

SPRING ADAPTOR

$

$

Not available

21

Poulan 702509

SPOOL WOUND

$

$

Not available

22

Poulan 92133

COVER

$

$

Not available

23

Poulan 90824

SWITCH

$

$

Not available

24

Poulan 93856

POWER CORD PIGTAIL

$

$

Not available

25

Poulan 347416

HARNESS W/DIODE

$

$

Not available

26

Poulan 343307

CONNECTOR

$

$

Not available
