51 D (954065701-A) - Husqvarna Walk-Behind Mower (1994-07) 20" Rotary Lawn Mower - Model No. 51d (954065701A) Parts Diagram

Walk-Behind Mower

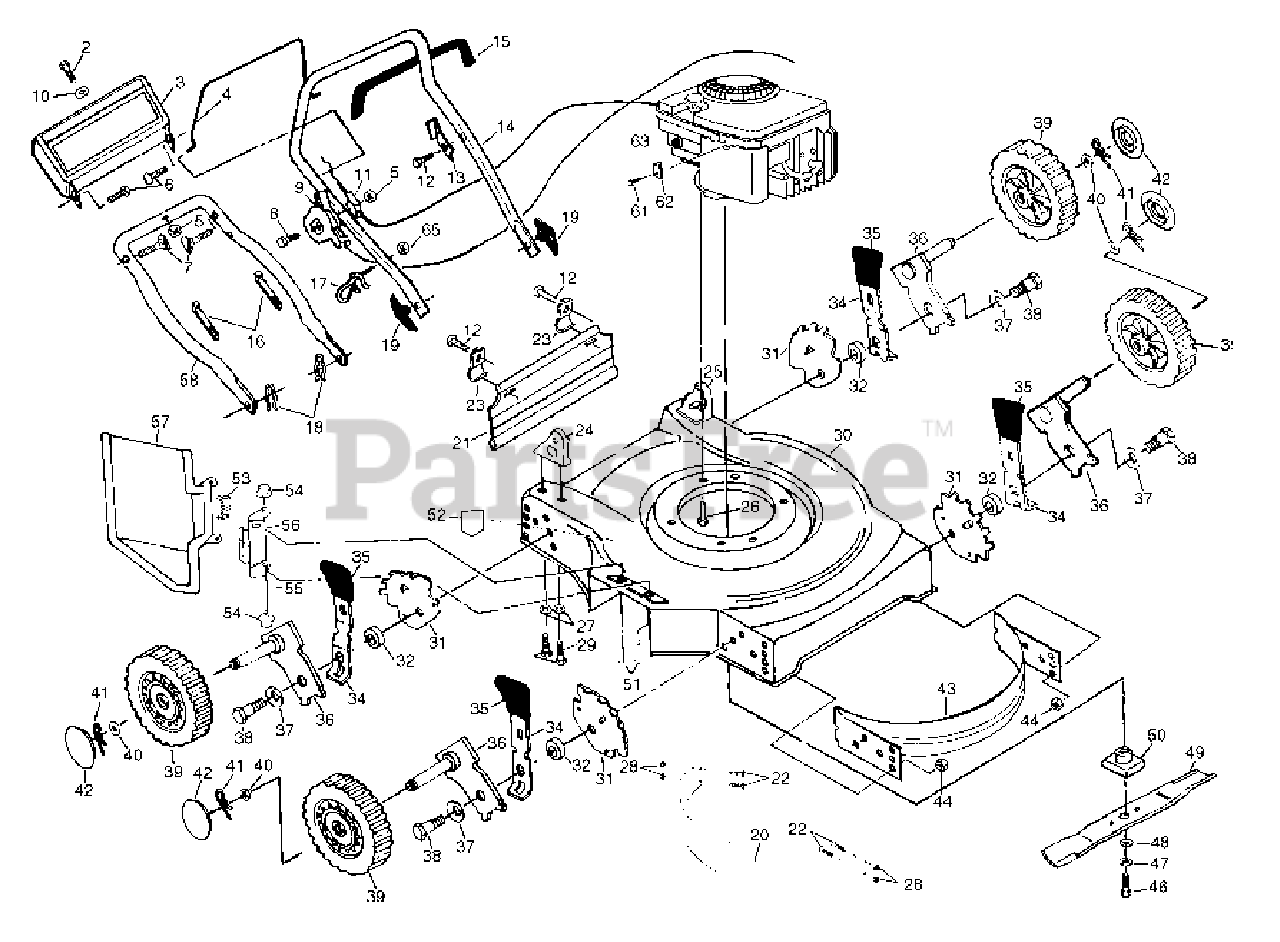

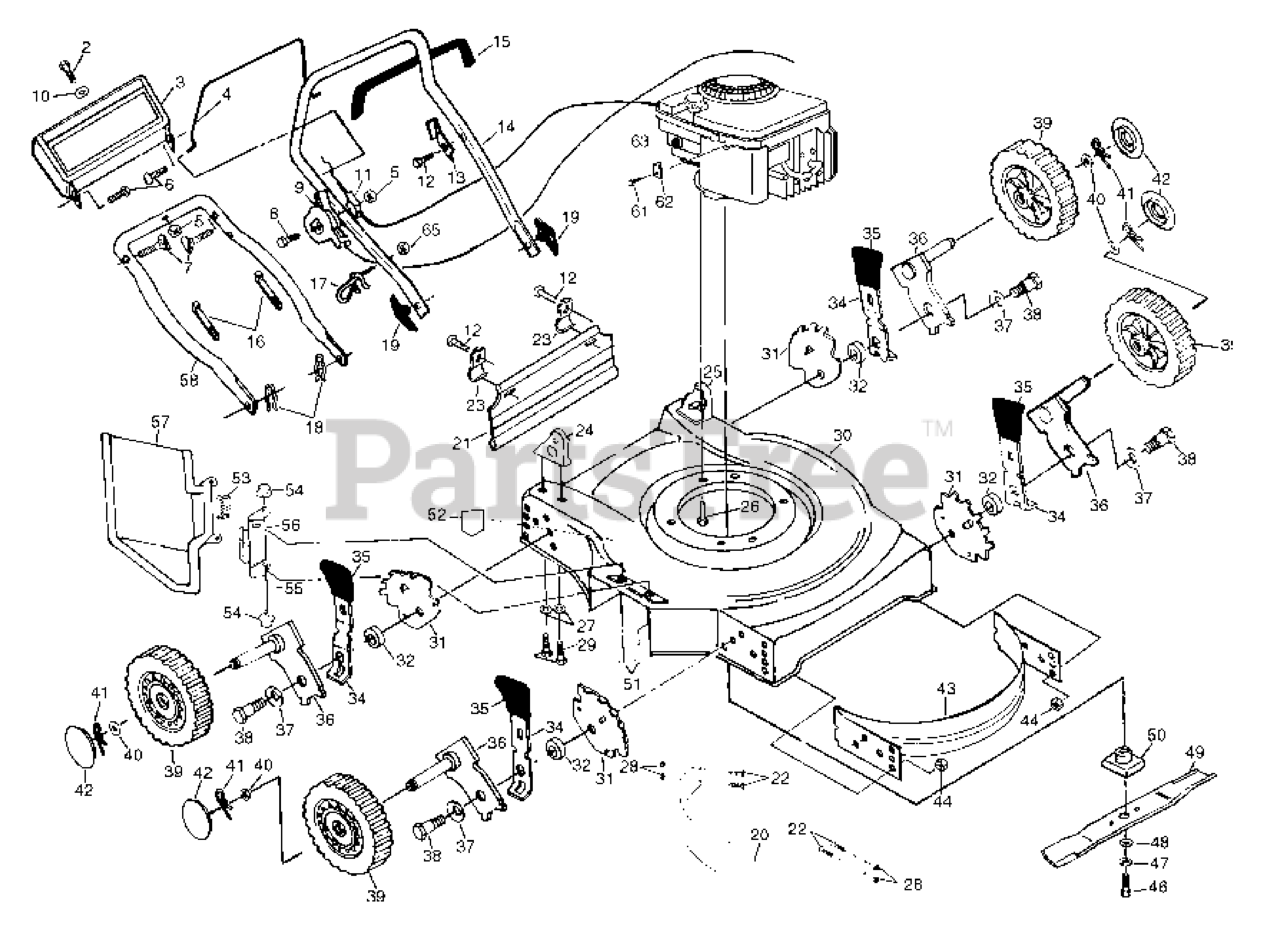

20" Rotary Lawn Mower - Model No. 51d (954065701A) Parts Diagram

  • Title

2

Husqvarna 532085436

SCREW
(Superseded to 874760424)

$

$

Not available

3

Husqvarna 532800547

TRIM PLATE

$

$

Not available

4

Husqvarna 532850735

CONTROL BAR/BLACK

$

$

Not available

5

Husqvarna 532063601

NUT
(Superseded to 539976978)

$2.49

$

In Stock, Qty 20+

0

6

Husqvarna 532036953

SCREW

$

$

Not available

7

Husqvarna 532131959

HANDLE BOLT
(Superseded to 532183724)

$

$

Not available

8

Husqvarna 532144929

SCREW 1/4-20 X 2.12
(Superseded to 532158755)

$

$

Not available

9

Husqvarna 532700417

THROTTLE CONTROL

$20.99

$

In Stock, only 2 left!

0

10

Husqvarna 532085723

WASHER PM

$

$

Not available

11

Husqvarna 532130861

CABLE.MZR.51.RT.SP./PU.

$

$

Not available

12

Husqvarna 532750097

TAPPING SCREW
(Superseded to 817021008)

$3.99

$

In Stock, Qty 20+

0

13

Husqvarna 532125162

BRACKET UPSTOP
(Superseded to 532850733)

$5.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532125295

UPPER HANDLE
(Superseded to 532166268)

$

$

Not available

15

Husqvarna 532850724

HANDLE GRIP
(Superseded to 585161003)

$

$

Not available

16

Husqvarna 532066426

TIE GUIDE
(Superseded to 532007192)

$9.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532132001

ROPE GUIDE
(Superseded to 586122501)

$9.99

$

In Stock, only 3 left!

0

18

Husqvarna 532051793

HAIRPIN COTTER

$

$

Not available

19

Husqvarna 532136376

HANDLE KNOB
(Superseded to 532183724)

$

$

Not available

20

Husqvarna 532142169

CLOSEOUT PLATE
(Superseded to 532132681)

$

$

Not available

21

Husqvarna 532140543

REAR SKIRT
(Superseded to 532413160)

$14.99

$

In Stock, Qty 6

0

22

Husqvarna 874961008

Machine Screw

$

$

Not available

23

Husqvarna 532125207

BRACKET DEFL PM
(Superseded to 532192301)

$

$

Not available

24

Husqvarna 532140465

HANDLE BRKT ASSY RH
(Superseded to 532192983)

$

$

Not available

25

Husqvarna 532140466

HANDLE BRKT ASSY LH
(Superseded to 532192983)

$

$

Not available

26

Husqvarna 532850998

BOLT
(Superseded to 532150406)

$5.99

$

In Stock, Qty 12

0

27

Husqvarna 532059289

STEEL WASHER

$4.99

$

In Stock, Qty 5

0

28

Husqvarna 532069180

LOCKNUT

$2.49

$

Usually ships in 3-10 days

0

29

Husqvarna 532055187

SCREW
(Superseded to 817000512)

$5.99

$

In Stock, Qty 20+

0

30

Husqvarna 532142144

HOUSING ASSY

Note: (Includes Key #52)

$

$

Not available

31

Husqvarna 532139901

WHEEL ADJUST BRACKET
(Superseded to 532750085)

$

$

Not available

32

Husqvarna 532084920

SPACER PM
(Superseded to 532401629)

$3.99

$

In Stock, Qty 20+

0

34

Husqvarna 532141730

SELECTOR SPRING
(Superseded to 532401621)

$6.49

$

In Stock, Qty 7

0

35

Husqvarna 532132800

SELECTOR KNOB
(Superseded to 532701037)

$5.99

$

In Stock, Qty 20+

0

36

Husqvarna 532125172

AXLE ARM
(Superseded to 532187930)

$

$

Not available

37

Husqvarna 532062335

WASHER.BELLEVILLE (3 2 LB)

$

$

Not available

38

Husqvarna 532142748

BOLT
(Superseded to 532174719)

$10.99

$

In Stock, Qty 10

0

39

Husqvarna 532086984

PACKAGE.WHEEL.8 X 2 RADIAL

$

$

Not available

40

Husqvarna 532052160

WASHER
(Superseded to 596040101)

$3.99

$

In Stock, Qty 14

0

41

Husqvarna 532085179

RETAINER CLIP PM

$

$

Not available

42

Husqvarna 532850844

HUBCAP

$

$

Not available

43

Husqvarna 532138348

BAFFLE
(Superseded to 532700839)

$

$

Not available

44

Husqvarna 532751592

LOCKNUT PM
(Superseded to 873680600)

$

$

Not available

46

Husqvarna 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$5.99

$

In Stock, Qty 20+

0

47

Husqvarna 532850263

LOCKWASHER
(Superseded to 539990118)

$3.99

$

In Stock, Qty 20+

0

48

Husqvarna 532851074

WASHER,HARDEN

$4.99

$

In Stock, Qty 20+

0

49

Husqvarna 532134871

BLADE 20" MULCH
(Superseded to 532752233)

$

$

Not available

50

Husqvarna 532850977

BLADE ADAPTOR
(Superseded to 581547901)

$21.99

$

In Stock, Qty 16

0

51

Husqvarna 532851856

SCREW
(Superseded to 817600406)

$3.99

$

In Stock, only 2 left!

0

52

Husqvarna 532107339

DECAL HYT
(Superseded to 581579101)

$3.99

$

Usually ships in 3-10 days

0

53

Husqvarna 532851855

SPRING TENSION
(Superseded to 532411832)

$7.49

$

In Stock, only 3 left!

0

54

Husqvarna 532083731

PUSH-ON SPEED NUT

$

$

Not available

55

Husqvarna 532851854

ROD HINGE
(Superseded to 532147286)

$9.49

$

In Stock, Qty 13

0

56

Husqvarna 532125175

BRKT HSG
(Superseded to 532147775)

$

$

Not available

57

Husqvarna 532142193

DISCHARGE GUARD

$

$

Not available

58

Husqvarna 532125293

HANDLE, LOWER PM
(Superseded to 532157081)

$

$

Not available

61

Husqvarna 532083816

SCREW.HEX.HEAD.WASHER.10-16

$

$

Not available

62

Husqvarna 532213146

WASHER
(Superseded to 532125078)

Note: These parts must be purchased through an authorized Briggs and Stratton dealer.

$

$

Not available

63

Engine - Briggs & Stratton Model No. 127702

Note: These parts must be purchased through an authorized Briggs and Stratton dealer.

$

$

Not available

65

Husqvarna 873510400

NUT
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

Husqvarna 532145591

Owner's Manual (English/French)

$

$

Not available

Husqvarna 532143855

DECAL, ENGINE

$

$

Not available

Husqvarna 532142073

DECAL, HOUSING

$

$

Not available

Husqvarna 532850788

DECAL,TRIMPLATE

$

$

Not available

Husqvarna 532141520

REAR BAFFLE
(Superseded to 532133379)

Note: (Not shown)

$

$

Not available
