51 D (954071701) - Husqvarna Walk-Behind Mower (1995-01) Handle & Deck Assembly Parts Diagram

Walk-Behind Mower

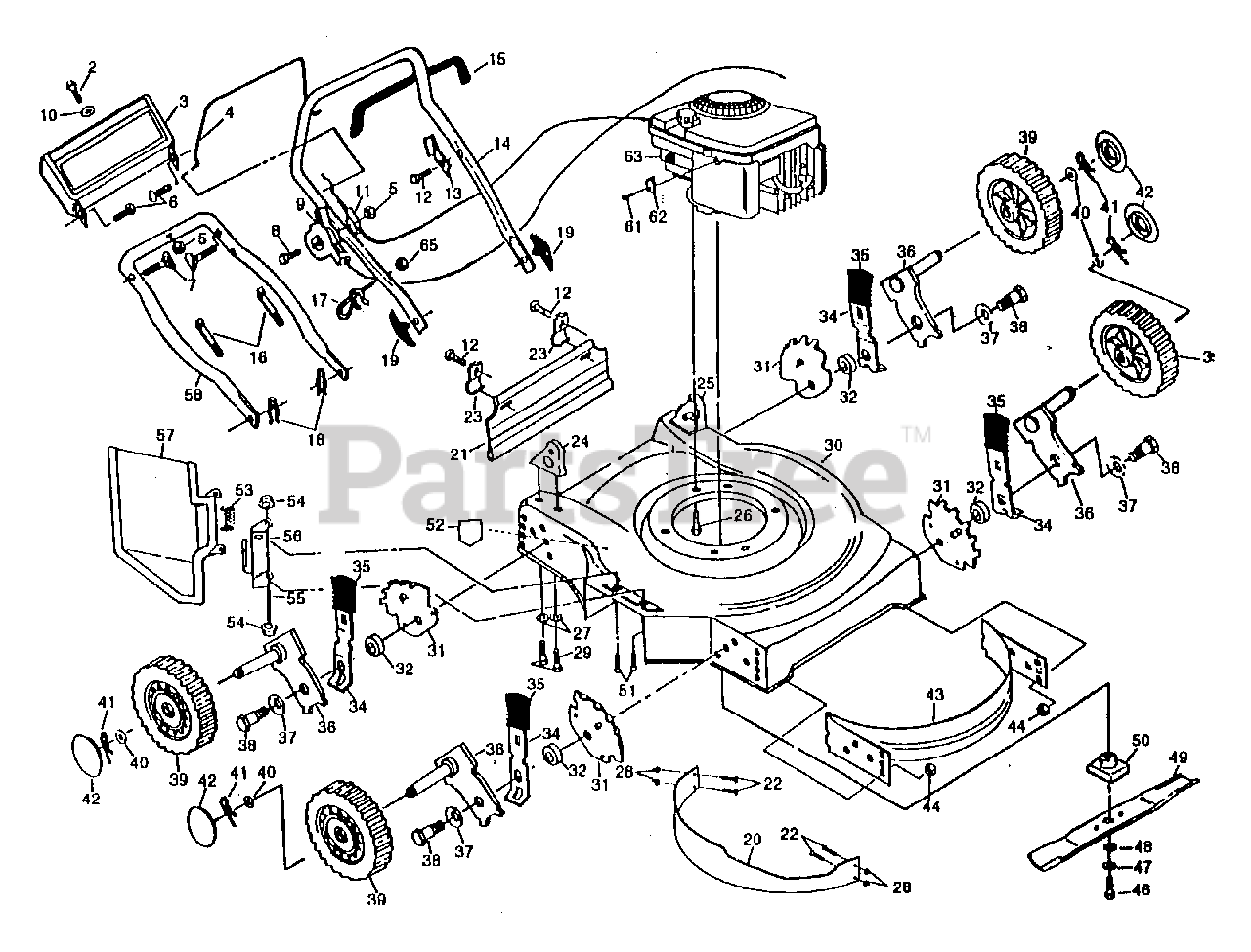

Handle & Deck Assembly Parts Diagram

  • Title

2

Husqvarna 532085436

Hex Washer Head Screw 1/4-20 x 1-1/2
(Superseded to 874760424)

$

$

Not available

3

Husqvarna 532800547

Trim Plate

$

$

Not available

4

Husqvarna 532850735

Control Bar

$

$

Not available

5

Husqvarna 532063601

Locknut 1/4-20
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532036953

Self-tapping Screw #10-24 x 5/8

$

$

Not available

7

Husqvarna 532131959

Handle Bolt 5/16-18 x 1-3/4
(Superseded to 532183724)

$

$

Not available

8

Husqvarna 532144929

Hex Washer Head Screw 1/4-20 x 2.12
(Superseded to 532158755)

$

$

Not available

9

Husqvarna 532700417

Throttle Control

$24.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532085723

Washer

$2.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532130861

Engine Zone Control Cable

$12.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532750097

Hex Washer Head Screw 1110-2
(Superseded to 817021008)

$4.99

$

In Stock, Qty 20+

0

13

Husqvarna 532125162

Up-Stop Bracket
(Superseded to 532850733)

$7.49

$

In Stock, only 2 left!

0

14

Husqvarna 532125295

Upper Handle
(Superseded to 532166268)

$

$

Not available

15

Husqvarna 532850724

Handle Grip
(Superseded to 585161003)

$

$

Not available

16

Husqvarna 532066426

Wire Tie
(Superseded to 532124756)

$6.49

$

Usually ships in 3-10 days

0

17

Husqvarna 532132001

Rope Guide
(Superseded to 586122501)

$18.99

$

In Stock, Qty 8

0

18

Husqvarna 532051793

Hairpin Cotter

$7.49

$

In Stock, only 1 left!

0

19

Husqvarna 532136376

Handle Knob
(Superseded to 532183724)

$

$

Not available

20

Husqvarna 532142169

Closeout Plate
(Superseded to 532132681)

$

$

Not available

21

Husqvarna 532140543

Rear Skirt
(Superseded to 532413160)

$12.99

$

In Stock, Qty 8

0

22

Husqvarna 874961008

Machine Screw

$

$

Not available

23

Husqvarna 532125207

Rear Skirt Bracket
(Superseded to 532192301)

$

$

Not available

24

Husqvarna 532140465

Handle Bracket Assembly (Right)
(Superseded to 532192983)

$42.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532140466

Handle Bracket Assembly (Left)
(Superseded to 532192983)

$42.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532850998

Thread Rolling Screw 3/8-16 x 1
(Superseded to 532150406)

$7.49

$

In Stock, Qty 10

0

27

Husqvarna 532059289

Washer

$4.99

$

In Stock, only 3 left!

0

28

Husqvarna 532069180

Locknut

$6.49

$

In Stock, only 2 left!

0

29

Husqvarna 532055187

Screw 5/16-18
(Superseded to 817000512)

$6.49

$

In Stock, Qty 20+

0

30

Husqvarna 532142144

Lawn Mower Housing

Note: (Includes Key M52)

$

$

Not available

31

Husqvarna 532139901

Wheel Adjusting Bracket
(Superseded to 532750085)

$4.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532084920

Spacer
(Superseded to 532401629)

$6.49

$

In Stock, only 3 left!

0

34

Husqvarna 532141730

Selector Spring
(Superseded to 532700331)

$4.99

$

In Stock, Qty 11

0

35

Husqvarna 532701037

Selector Knob

$4.99

$

In Stock, Qty 20+

0

36

Husqvarna 532125172

Axle Arm Assembly
(Superseded to 532187930)

$14.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532062335

Belleville Washer

$9.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532142748

Shoulder Bolt 3/8-16
(Superseded to 532174719)

$7.49

$

In Stock, only 4 left!

0

39

Husqvarna 532086984

Wheel Assembly

$

$

Not available

40

Husqvarna 532052160

Washer

$

$

Not available

41

Husqvarna 532085179

Retainer Clip

$7.49

$

Usually ships in 3-10 days

0

42

Husqvarna 532850844

Hubcap

$

$

Not available

43

Husqvarna 532138348

Front Baffle
(Superseded to 532700839)

$

$

Not available

44

Husqvarna 532751592

Locknut 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

46

Husqvarna 532851084

Hex Head Screw 3/8-24 R 1-3/8 Or. 8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

47

Husqvarna 532850263

Helical Lockwasher 3/8
(Superseded to 810040600)

$3.99

$

In Stock, Qty 20+

0

48

Husqvarna 532851074

Hardened Washer

$4.99

$

In Stock, Qty 20+

0

49

Husqvarna 532145106

20" Blade

$14.99

$

In Stock, Qty 8

0

50

Husqvarna 532850977

Blade Adapter
(Superseded to 581547901)

$17.99

$

In Stock, Qty 20+

0

51

Husqvarna 532851856

Screw
(Superseded to 817600406)

$6.49

$

In Stock, Qty 5

0

52

Husqvarna 532107339

Danger Decal
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

53

Husqvarna 532851855

Torsion Spring
(Superseded to 532411832)

$4.99

$

In Stock, Qty 5

0

54

Husqvarna 532083731

Push Nut

$4.99

$

Usually ships in 3-10 days

0

55

Husqvarna 532851854

Hinge Rod
(Superseded to 532147286)

$8.99

$

In Stock, Qty 12

0

56

Husqvarna 532125175

Housing Bracket
(Superseded to 532851852)

$3.99

$

Usually ships in 3-10 days

0

57

Husqvarna 532142193

Discharge Guard

$

$

Not available

58

Husqvarna 532125293

Lower Handle
(Superseded to 532157081)

$

$

Not available

61

Husqvarna 532083816

Thread Rolling Screw #10-32 x 5/8

$6.49

$

Usually ships in 3-10 days

0

62

Husqvarna 532213146

Cable Clamp
(Superseded to 532125078)

Note: These parts must be purchased through an authorized Briggs & Stratton dealer.

$

$

Not available

63

Engine - Briggs & Stratton Model No. 127702

Note: These parts must be purchased through an authorized Briggs & Stratton dealer.

$

$

Not available

65

Husqvarna 873510400

Keps Locknut 1/4-20
(Superseded to 873680400)

$3.99

$

In Stock, Qty 20+

0

Husqvarna 532146456

Owner's Manual (English/French)

$3.99

$

Usually ships in 3-10 days

0

Husqvarna 532143855

Decal (Engine)

$

$

Not available

Husqvarna 532142073

Decal (Housing)

$

$

Not available

Husqvarna 532850788

Decal (Trim Plate)

$

$

Not available

Husqvarna 532141520

Rear Baffle
(Superseded to 532133379)

Note: (Not shown)

$

$

Not available
