51 D (954140031-B) - Husqvarna Walk-Behind Mower (1997-12) Rotary Lawn Mower Parts Diagram

Walk-Behind Mower

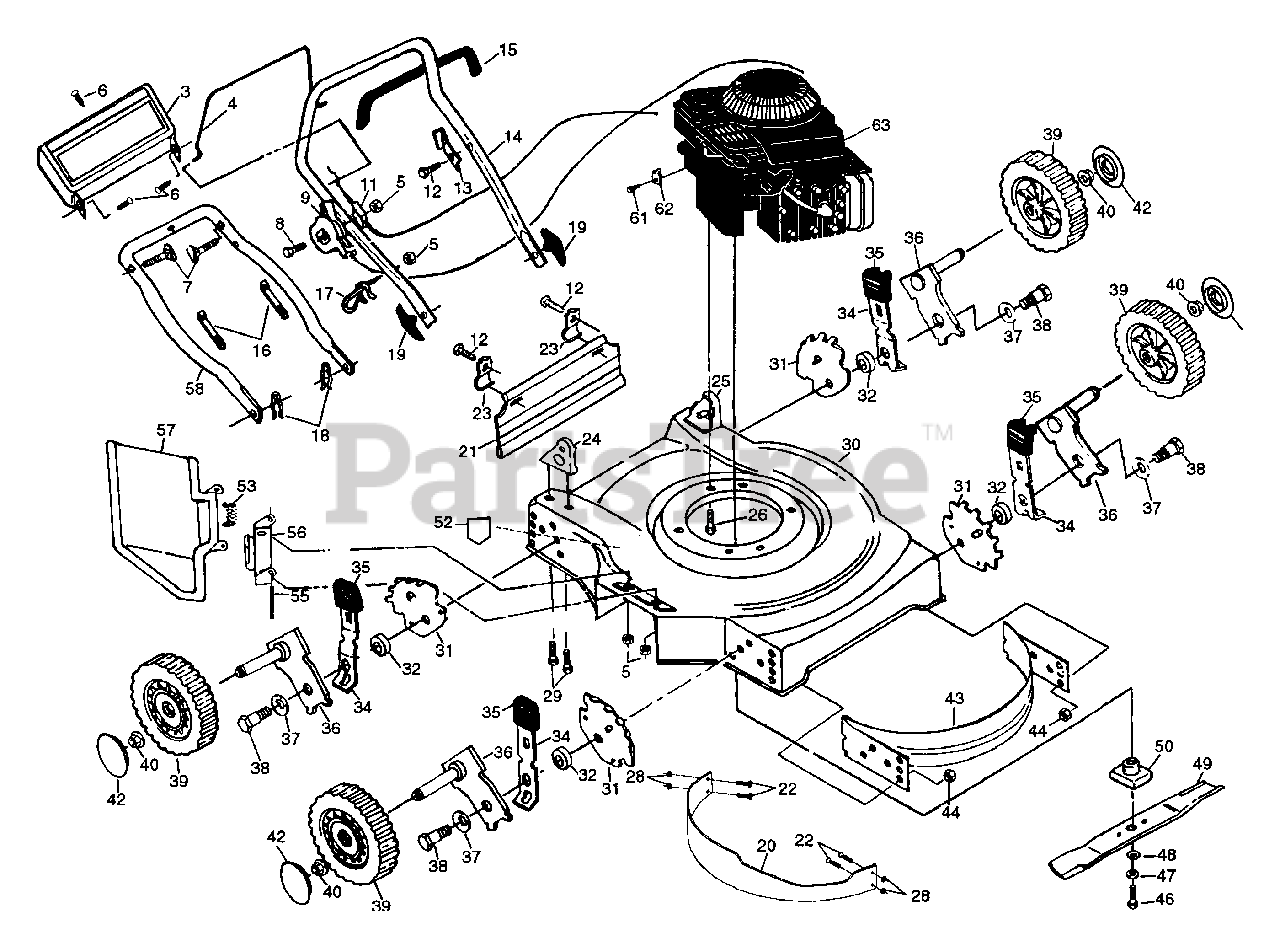

Rotary Lawn Mower Parts Diagram

  • Title

3

Husqvarna 532157070

Trim Plate

$

$

Not available

4

Husqvarna 532850735

Control Bar

$

$

Not available

5

Husqvarna 532063601

Locknut 1/4-20
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532701477

Snap-in Fastener

$

$

Not available

7

Husqvarna 532131959

Handle Bolt 5/16-18 x 1-3/4
(Superseded to 532183724)

$

$

Not available

8

Husqvarna 532144929

Hex Washer Head Screw 1/4-20 x 2.12
(Superseded to 532158755)

$

$

Not available

9

Husqvarna 532700417

Throttle Control

$24.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532130861

Engine Zone Control Cable

$12.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532750097

Hex Washer Head Screw #10-2
(Superseded to 817021008)

$4.99

$

In Stock, Qty 20+

0

13

Husqvarna 532125162

Up-Stop Bracket
(Superseded to 532850733)

$7.49

$

In Stock, only 2 left!

0

14

Husqvarna 532150041

Upper Handle
(Superseded to 532166268)

$

$

Not available

15

Husqvarna 532850724

Handle Grip
(Superseded to 585161003)

$

$

Not available

16

Husqvarna 532151517

Wire Tie
(Superseded to 532007192)

$6.49

$

Usually ships in 3-10 days

0

17

Husqvarna 532132001

Rope Guide
(Superseded to 586122501)

$18.99

$

In Stock, Qty 8

0

18

Husqvarna 532051793

Hairpin Cotter

$7.49

$

In Stock, only 1 left!

0

19

Husqvarna 532136376

Handle Knob
(Superseded to 532183724)

$

$

Not available

20

Husqvarna 532142169

Closeout Plate
(Superseded to 532132681)

$

$

Not available

21

Husqvarna 532140543

Rear Skirt
(Superseded to 532413160)

$12.99

$

In Stock, Qty 8

0

22

Husqvarna 874961008

Machine Screw

$

$

Not available

23

Husqvarna 532125207

Rear Skirt Bracket
(Superseded to 532192301)

$

$

Not available

24

Husqvarna 532153027

Handle Bracket Assembly (Right)
(Superseded to 532192983)

$42.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532153026

Handle Bracket Assembly (Left)
(Superseded to 532192983)

$42.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532150406

Thread Rolling Screw 3/8-16 x 1

$7.49

$

In Stock, Qty 10

0

28

Husqvarna 532069180

Locknut

$6.49

$

In Stock, only 2 left!

0

29

Husqvarna 532149741

Screw 5/16-18
(Superseded to 532171877)

$7.49

$

In Stock, Qty 5

0

30

Husqvarna 532142144

Lawn Mower Housing

Note: (Includes Key #52)

$

$

Not available

31

Husqvarna 532139901

Wheel Adjusting Bracket
(Superseded to 532750085)

$4.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532146630

Spacer
(Superseded to 532401629)

$6.49

$

In Stock, only 3 left!

0

34

Husqvarna 532141730

Selector Spring
(Superseded to 532700331)

$4.99

$

In Stock, Qty 11

0

35

Husqvarna 532701037

Selector Knob

$4.99

$

In Stock, Qty 20+

0

36

Husqvarna 532149857

Axle Arm Assembly
(Superseded to 532145935)

$

$

Not available

37

Husqvarna 532062335

Belleville Washer

$9.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532142748

Shoulder Bolt 3/8-16
(Superseded to 532174719)

$7.49

$

In Stock, only 4 left!

0

39

Husqvarna 532148442

Wheel Assembly

$30.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532083923

Flanged Locknut
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

42

Husqvarna 532157008

Hubcap

$

$

Not available

43

Husqvarna 532138348

Front Baffle
(Superseded to 532700839)

$

$

Not available

44

UNKNOWN

$

$

Not available

46

Husqvarna 532851084

Hex Head Screw 3/8-24 x 1-3/8 Gr. 8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

47

Husqvarna 532850263

Helical Lockwasher 3/8
(Superseded to 810040600)

$3.99

$

In Stock, Qty 20+

0

48

Husqvarna 532851074

Hardened Washer

$4.99

$

In Stock, Qty 20+

0

49

Husqvarna 532145106

20" Blade

$14.99

$

In Stock, Qty 8

0

50

Husqvarna 532850977

Blade Adapter
(Superseded to 581547901)

$17.99

$

In Stock, Qty 20+

0

52

Husqvarna 532107339

Danger Decal
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

53

Husqvarna 532851855

Torsion Spring
(Superseded to 532411832)

$4.99

$

In Stock, Qty 5

0

55

Husqvarna 532150215

Hinge Rod

$6.49

$

Usually ships in 3-10 days

0

56

Husqvarna 532088602

Housing Bracket

$4.99

$

Usually ships in 3-10 days

0

57

Husqvarna 532142191

Discharge Guard
(Superseded to 532142193)

$

$

Not available

58

Husqvarna 532157082

Lower Handle
(Superseded to 532157081)

$

$

Not available

61

Husqvarna 532083816

Thread Rolling Screw #10-32 x 5/8

$6.49

$

Usually ships in 3-10 days

0

62

Husqvarna 532213146

Cable Clamp
(Superseded to 532125078)

$

$

Not available

63

Engine - Briggs

Note: Model 12H802

$

$

Not available

Husqvarna 532160883

Owner's Manual (English/French)

$

$

Not available

Husqvarna 532157088

Decal (Engine)

$

$

Not available

Husqvarna 532157089

Decal (Housing)

$

$

Not available

Husqvarna 532150943

Decal (Engine)

$

$

Not available

Husqvarna 532141520

Rear Baffle
(Superseded to 532133379)

Note: (Not shown)

$

$

Not available
