51 MD (954076801-A) - Husqvarna Walk-Behind Mower (1995-08) General Assembly Parts Diagram

Walk-Behind Mower

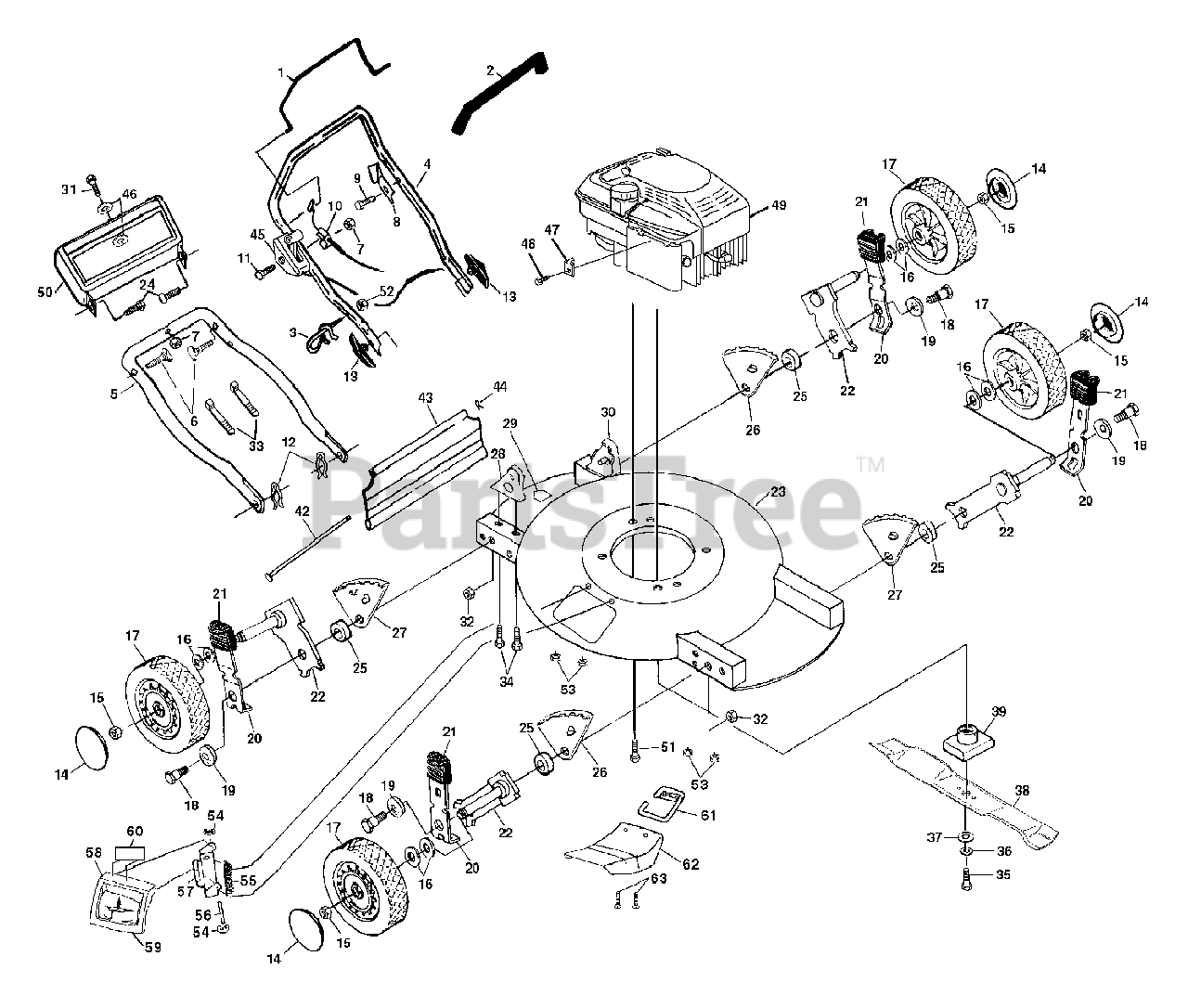

General Assembly Parts Diagram

  • Title

1

Husqvarna 532850735

Control Bar

$

$

Not available

2

Husqvarna 532850724

Handle Grip
(Superseded to 585161003)

$

$

Not available

3

Husqvarna 532132001

Rope Guide
(Superseded to 586122501)

$18.99

$

In Stock, Qty 8

0

4

Husqvarna 532150041

Upper Handle
(Superseded to 532166268)

$

$

Not available

5

Husqvarna 532125293

Lower Handle
(Superseded to 532157081)

$

$

Not available

6

Husqvarna 532131959

Handle Bolt 5/16-18 x 1-3/4
(Superseded to 532183724)

$

$

Not available

7

Husqvarna 532063601

Locknut 1/4-20
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532125162

Up-Stop Bracket
(Superseded to 532850733)

$7.49

$

In Stock, only 2 left!

0

9

Husqvarna 532750097

Hex Washer Head Screw #10-24 x 1/2
(Superseded to 817021008)

$4.99

$

In Stock, Qty 20+

0

10

Husqvarna 532130861

Engine Zone Control Cable

$12.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532144929

Hex Washer Head Screw 1/4-20 x 2.12
(Superseded to 532158755)

$

$

Not available

12

Husqvarna 532051793

Hairpin Cotter

$7.49

$

In Stock, only 1 left!

0

13

Husqvarna 532136376

Handle Knob
(Superseded to 532183724)

$

$

Not available

14

Husqvarna 532008508

Hubcap

$

$

Not available

15

Husqvarna 532083923

Hex Locknut 3/8-16
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

16

Husqvarna 532057143

Washer
(Superseded to 532428450)

$7.99

$

In Stock, only 2 left!

0

17

Husqvarna 532800372

Wheel & Tire Assembly

$18.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532142748

Shoulder Bolt
(Superseded to 532174719)

$7.49

$

In Stock, only 4 left!

0

19

Husqvarna 532062335

Belleville Washer

$9.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532125066

Selector Spring

$6.49

$

In Stock, only 1 left!

0

21

Husqvarna 532701037

Selector Knob

$4.99

$

In Stock, Qty 20+

0

22

Husqvarna 532151254

Axle Arm Assembly
(Superseded to 532145937)

$6.49

$

Usually ships in 3-10 days

0

23

Husqvarna 532141934

Lawn Mower Housing

Note: (Includes Key No. 29)

$

$

Not available

24

Husqvarna 532036953

Screw

$

$

Not available

25

Husqvarna 532146630

Spacer
(Superseded to 532401629)

$6.49

$

Usually ships in 3-10 days

0

26

Husqvarna 532800370

Wheel Adjusting Bracket (R.F./L.R.)
(Superseded to 532140058)

$6.49

$

Usually ships in 3-10 days

0

27

Husqvarna 532800368

Wheel Adjusting Bracket (L.F./R.R.)

$

$

Not available

28

Husqvarna 532140465

Handle Bracket Assembly (Right)
(Superseded to 532192983)

$42.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532107339

Danger Decal
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

30

Husqvarna 532140466

Handle Bracket Assembly (Left)
(Superseded to 532192983)

$42.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532085436

Screw
(Superseded to 874760424)

$

$

Not available

32

Husqvarna 532751592

Locknut 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532066426

Wire Tie
(Superseded to 532124756)

$6.49

$

Usually ships in 3-10 days

0

34

Husqvarna 532055187

Thread Cutting Screw 5/16-18 x 3/4
(Superseded to 817000512)

$6.49

$

In Stock, Qty 20+

0

35

Husqvarna 532851084

Hex Head Screw 3/8-24 x 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

36

Husqvarna 532850263

Helical Lockwasher 3/8
(Superseded to 810040600)

$3.99

$

In Stock, Qty 20+

0

37

Husqvarna 532851074

Hardened Washer

$4.99

$

In Stock, Qty 20+

0

38

Husqvarna 532134871

20" Blade
(Superseded to 532752233)

$

$

Not available

39

Husqvarna 532851514

Blade Adapter

$17.99

$

In Stock, Qty 20+

0

42

Husqvarna 532751649

Deflector Rod

$3.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532140544

Rear Deflector

$

$

Not available

44

Husqvarna 532700279

Retainer Clip

$6.49

$

Usually ships in 3-10 days

0

45

Husqvarna 532700417

Throttle Control

$24.99

$

Usually ships in 3-10 days

0

46

Husqvarna 532085723

Washer

$2.99

$

Usually ships in 3-10 days

0

47

Husqvarna 532213146

Cable Clamp
(Superseded to 532125078)

Note: These parts must be purchased through an authorized Briggs & Stratton dealer.

$

$

Not available

48

Husqvarna 532083816

Thread Rolling Screw #10-32 x 5/8

$6.49

$

Usually ships in 3-10 days

0

49

Engine - Briggs & Stratton - Model No. 128802

Note: These parts must be purchased through an authorized Briggs & Stratton dealer.

$

$

Not available

50

Husqvarna 532800547

Trim Plate

$

$

Not available

51

Husqvarna 532150406

Hex Head Screw, Self Tap. 3/8 - 16 x 1.1

$7.49

$

In Stock, Qty 10

0

52

Husqvarna 873510400

Keps Locknut 1/4-20
(Superseded to 873680400)

$3.99

$

In Stock, Qty 20+

0

53

Husqvarna 532063601

Locknut
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

54

Husqvarna 812000014

External E-Ring

$7.49

$

In Stock, only 2 left!

0

55

Husqvarna 532087589

Torsion Spring

$6.49

$

Usually ships in 3-10 days

0

56

Husqvarna 532087590

Hinge Rod

$

$

Not available

57

Husqvarna 532130737

Housing Assembly Bracket

$

$

Not available

58

Husqvarna 532140862

Mulcher Door

$

$

Not available

59

Husqvarna 532140864

Door Latch

$

$

Not available

60

Husqvarna 532140648

Decal

$

$

Not available

61

Husqvarna 532751399

Chute Mounting Bracket

$10.99

$

Usually ships in 3-10 days

0

62

Husqvarna 532752118

Mulcher Deflector

$

$

Not available

63

Husqvarna 874180410

Truss Head Screw

$6.49

$

Usually ships in 3-10 days

0

Husqvarna 532150964

Owner's Manual (English/French)

$

$

Not available

Husqvarna 532150880

Decal (Engine)

$2.49

$

Usually ships in 3-10 days

0

Husqvarna 532142184

Decal (Housing)

$

$

Not available

Husqvarna 532150321

Trim Plate Decal

$

$

Not available
