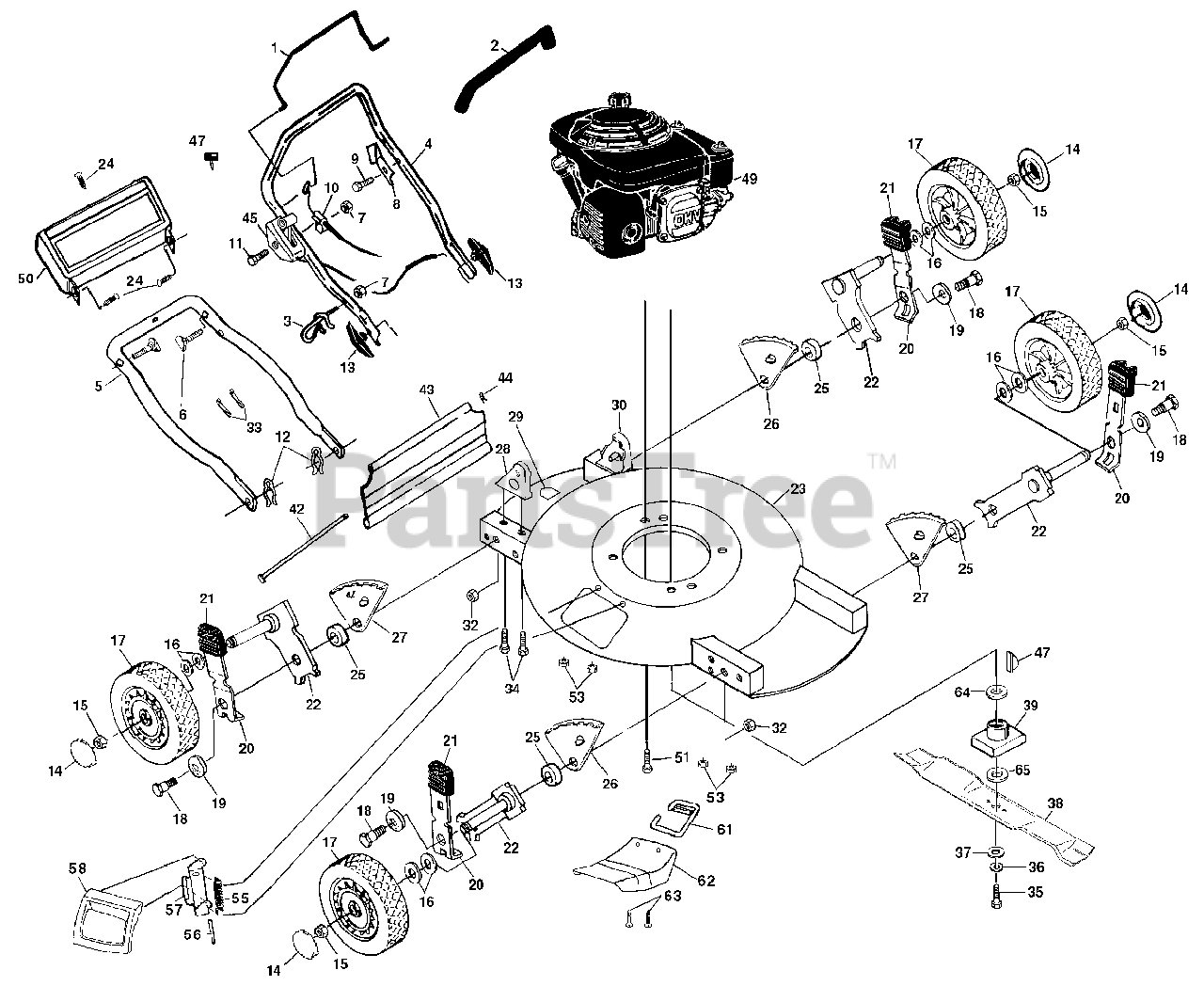

510 MD (654140053-A) - Husqvarna Walk-Behind Mower (1999-03) Rotary Lawn Mower Parts Diagram

Walk-Behind Mower

Rotary Lawn Mower Parts Diagram

  • Title

1

Husqvarna 532850735

Control Bar

$

$

Not available

2

Husqvarna 532164265

Handle Grip
(Superseded to 585161003)

$

$

Not available

3

Husqvarna 532132001

Rope Guide
(Superseded to 586122501)

$18.99

$

In Stock, Qty 7

0

4

Husqvarna 532166267

Upper Handle

$

$

Not available

5

Husqvarna 532157082

Lower Handle
(Superseded to 532157081)

$

$

Not available

6

Husqvarna 532131959

Handle Bolt 5/16-18 x 1-3/4
(Superseded to 532183724)

$

$

Not available

7

Husqvarna 532063601

Locknut 1/4-20
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532125162

Up-Stop Bracket
(Superseded to 532850733)

$7.49

$

In Stock, only 1 left!

0

9

Husqvarna 532750097

Hex Washer Head Screw #10-24 x 1/2
(Superseded to 817021008)

$4.99

$

In Stock, Qty 20+

0

10

Husqvarna 532701181

Engine Zone Control Cable
(Superseded to 532851671)

$

$

Not available

11

Husqvarna 532144929

Hex Washer Head Screw 1/4-20 x 2.12
(Superseded to 532158755)

$

$

Not available

12

Husqvarna 532051793

Hairpin Cotter

$7.49

$

In Stock, only 1 left!

0

13

Husqvarna 532136376

Handle Knob
(Superseded to 532183724)

$

$

Not available

14

Husqvarna 53208508J

Hubcap

$

$

Not available

15

Husqvarna 532083923

Hex Locknut 3/8-16
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

16

Husqvarna 532057143

Washer
(Superseded to 532428450)

$7.99

$

In Stock, only 2 left!

0

17

Husqvarna 532800372

Wheel & Tire Assembly

$18.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532142748

Shoulder Bolt
(Superseded to 532174719)

$7.49

$

In Stock, only 4 left!

0

19

Husqvarna 532062335

Belleville Washer

$9.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532125066

Selector Spring

$6.49

$

In Stock, only 1 left!

0

21

Husqvarna 532701037

Selector Knob

$4.99

$

In Stock, Qty 20+

0

22

Husqvarna 532151254

Axle Arm Assembly
(Superseded to 532145937)

$6.49

$

Usually ships in 3-10 days

0

23

Husqvarna 532141934

Lawn Mower Housing

Note: (Includes Key No. 29)

$

$

Not available

24

Husqvarna 532701477

Push-in Fastener

$

$

Not available

25

Husqvarna 532146630

Spacer
(Superseded to 532401629)

$6.49

$

In Stock, only 3 left!

0

26

Husqvarna 532800370

Wheel Adjusting Bracket (R.F./L.R.)
(Superseded to 532140058)

$6.49

$

Usually ships in 3-10 days

0

27

Husqvarna 532800368

Wheel Adjusting Bracket (L.F./R.R.)

$

$

Not available

28

Husqvarna 532153026

Handle Bracket Assembly (Right)
(Superseded to 532192983)

$42.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532107339

Danger Decal
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

30

Husqvarna 532153027

Handle Bracket Assembly (Left)
(Superseded to 532192983)

$42.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532751592

Locknut 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532066426

Wire Ties
(Superseded to 532124756)

$6.49

$

Usually ships in 3-10 days

0

34

Husqvarna 532149741

Thread Cutting Screw 5/16-18 x 3/4
(Superseded to 532171877)

$7.49

$

In Stock, Qty 5

0

35

Husqvarna 532851084

Hex Head Screw 3/8-24 x 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

36

Husqvarna 532850263

Helical Lockwasher 3/8
(Superseded to 810040600)

$3.99

$

In Stock, Qty 20+

0

37

Husqvarna 532851074

Hardened Washer

$4.99

$

In Stock, Qty 20+

0

38

Husqvarna 532145106

20" Blade

$14.99

$

In Stock, Qty 8

0

39

Husqvarna 532144331

Blade Adapter
(Superseded to 532144229)

$

$

Not available

42

Husqvarna 532150984

Deflector Rod

$

$

Not available

43

Husqvarna 532150985

Rear Deflector

$

$

Not available

44

Husqvarna 532700279

Retainer Clip

$6.49

$

Usually ships in 3-10 days

0

45

Husqvarna 532163340

Throttle Control
(Superseded to 532147758)

$

$

Not available

47

Husqvarna 532087677

Key

$

$

Not available

49

Engine - Honda Model No. GXV140

Note: (Order parts from engine manufacturer)

$

$

Not available

50

Husqvarna 532157070

Trim Plate

$

$

Not available

51

Husqvarna 532150406

Hex Head Screw, Self Tap. 3/8 - 16 x 1.1

$7.49

$

In Stock, Qty 10

0

53

Husqvarna 532063601

Locknut
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

55

Husqvarna 532152124

Torsion Spring

$7.49

$

In Stock, Qty 11

0

56

Husqvarna 532147286

Hinge Rod

$8.99

$

In Stock, Qty 12

0

57

Husqvarna 532087593

Housing Assembly Bracket

$6.49

$

Usually ships in 3-10 days

0

58

Husqvarna 532154829

Mulcher Door

$6.99

$

Usually ships in 3-10 days

0

61

Husqvarna 532751399

Chute Mounting Bracket

$10.99

$

Usually ships in 3-10 days

0

62

Husqvarna 532752118

Mulcher Deflector

$

$

Not available

63

Husqvarna 874180410

Truss Head Screw

$6.49

$

Usually ships in 3-10 days

0

64

Husqvarna 532067510

Washer
(Superseded to 819131016)

$6.49

$

In Stock, only 1 left!

0

65

Husqvarna 532148353

Washer

$3.99

$

Usually ships in 3-10 days

0

Husqvarna 532166272

Owner's Manual (English/French)

$

$

Currently unavailable

Husqvarna 532166343

Decal (Housing)

$46.99

$

Usually ships in 3-10 days

0

Husqvarna 532162300

Warning Decal
(Superseded to 530402152)

Note: (Not Shown)

$1.49

$

Usually ships in 3-10 days

0
