510 - Weed Eater Blower, Electric POWER BLOWER ATTACHMENT Parts Diagram

Blower, Electric

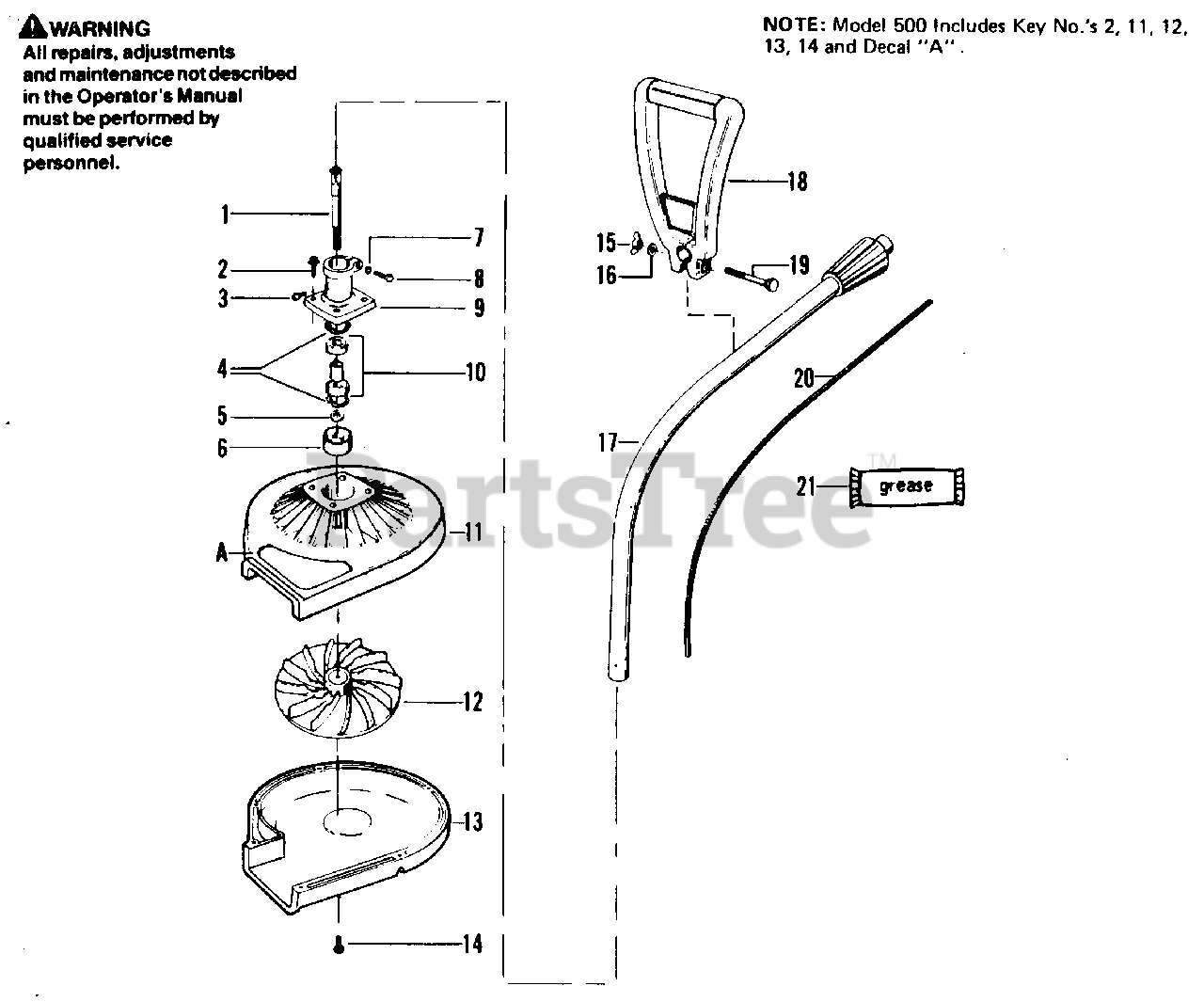

POWER BLOWER ATTACHMENT Parts Diagram

  • Title

1

Poulan 530093846

Arbor Shaft

$

$

Not available

2

Poulan 530092243

Screw - Bearing Housing 1/4 Plastite
(Superseded to 530016107)

$3.99

$

In Stock, Qty 11

0

3

Poulan 530015518

Screw - Tapping # 10-16-1/4

$2.49

$

Usually ships in 3-10 days

0

4

Poulan 530091783

Retaining Ring

$

$

Not available

5

Poulan 530092216

Washer - Dust Cup

$

$

Not available

6

Poulan 530092359

Dust Cup

$

$

Not available

7

Poulan 530092227

Washer - 1/4 - 20 Interlock

$1.49

$

Usually ships in 3-10 days

0

8

Poulan 530625509

Screw - 1/4 - 20x 1 (Hex Head)

$2.49

$

Usually ships in 3-10 days

0

9

Poulan 530093214

Bearing Housing Ass'y (incl, #'s 1,4-8 & 10)

$

$

Not available

10

Poulan 530069086

Bearings and Spacer

$27.99

$

Usually ships in 3-10 days

0

11

Poulan 530093159

Housing - Upper Impeller

$

$

Not available

12

Poulan 530093162

Impeller

$

$

Not available

13

Poulan 530093161

Housing - Lower Impeller

$

$

Not available

14

Poulan 530015367

Screw - Impeller Housing Ass'y # 10 Plastite
(Superseded to 530015872)

$6.49

$

In Stock, Qty 20+

0

15

Poulan 530091373

Wing Nut - "D" Handle

$4.99

$

In Stock, only 1 left!

0

16

Poulan 530015149

Washer - "D" Handle

$4.99

$

In Stock, only 3 left!

0

17

Poulan 530094528

Drive Shaft Ass'y (incl. # 20)

$

$

Not available

18

Poulan 530010722

"D" Handle

$

$

Not available

19

Poulan 530092061

Screw - "D" Handle

$

$

Not available

20

Poulan 530093213

Flexible Drive Shaft

$

$

Not available

21

Poulan 952701570

Flex Shaft Lube
(Superseded to 952030139)

$3.99

$

Usually ships in 3-10 days

0

Poulan 530066954

Operator's Manual (not shown)

$

$

Not available

A

Poulan 530026445

Decal - Warning/Product

$

$

Not available

Poulan 530027430

Decal - Safety Label
(Superseded to 530029159)

$

$

Not available
