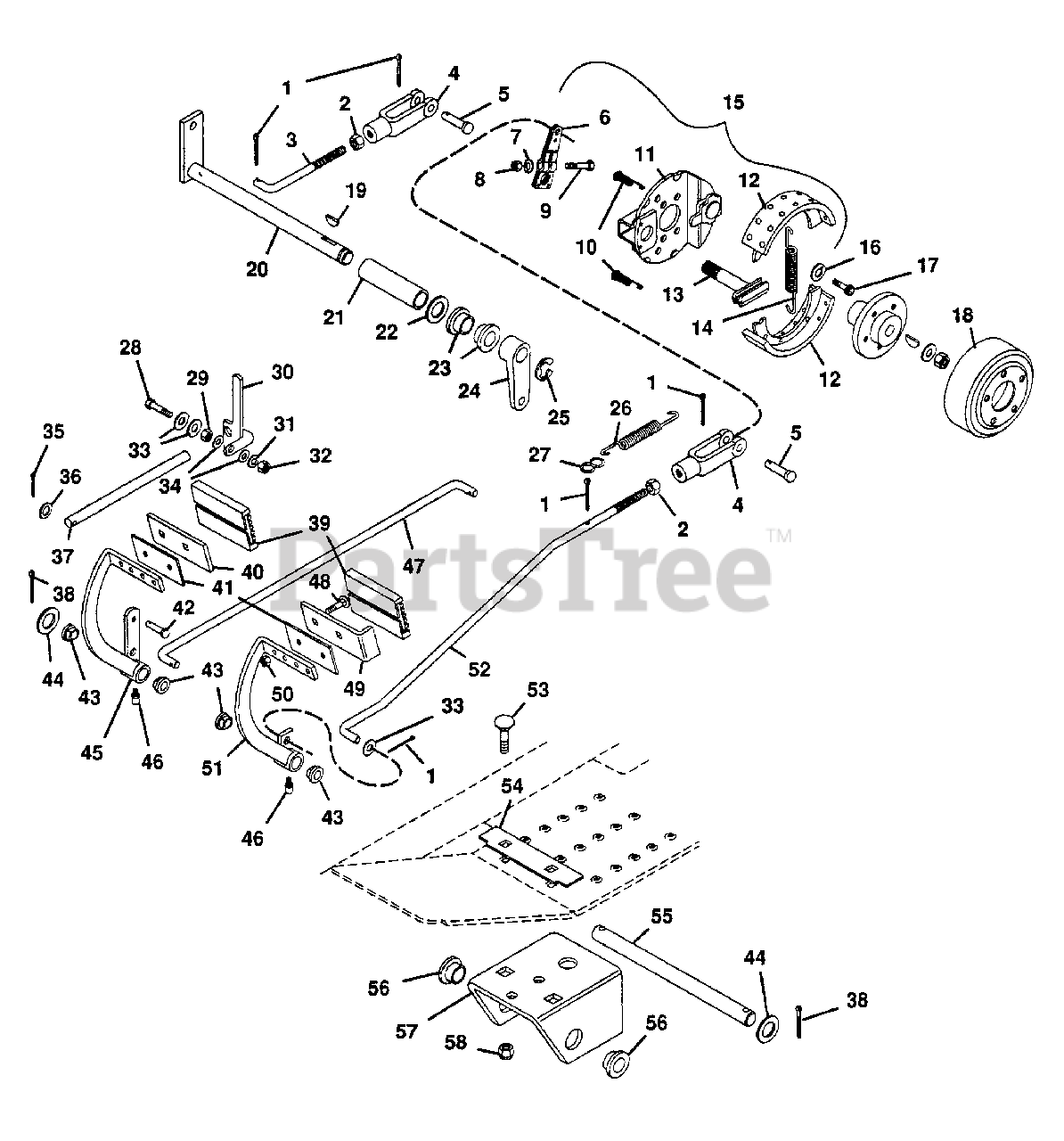

51000 (24-G) - Gravely Lawn Tractor BRAKE LINKAGE Parts Diagram

Lawn Tractor

BRAKE LINKAGE Parts Diagram

  • Title

1

Gravely 177923

PIN, COTTER .125X.75
(Superseded to 06707300)

$0.99

$

In Stock, Qty 10

0

2

Gravely 124925

NUT, JAM 3/8-24
(Superseded to 06500739)

$2.49

$

In Stock, Qty 5

0

3

Gravely 045866

ROD, BRAKE CONTROL R.H.
(Superseded to 08656600)

$

$

Not available

4

Gravely 018380

CLEVIS, 3/8-24 ADJUSTABLE
(Superseded to 08800400)

$11.99

$

Usually ships in 4-12 days

0

5

Gravely 138078

PIN, CLEVIS .375X.948
(Superseded to 06811900)

$5.49

$

In Stock, only 3 left!

0

6

Gravely 023505

ARM, CAM LEVER
(Superseded to 08529900)

$79.99

$

In Stock, only 1 left!

0

7

Gravely 120214

WASHER, LOCK 5/16
(Superseded to 06300119)

$1.49

$

In Stock, Qty 18

0

8

Gravely 120368

NUT, HEX 5/16-24
(Superseded to 06522800)

$2.99

$

Usually ships in 4-12 days

0

9

Gravely 181618

BOLT, HEX 5/16-24X1.75
(Superseded to 05902007)

$3.49

$

In Stock, Qty 11

0

10

Gravely 023509

SPRING, SHOE RETAINING
(Superseded to 08530300)

$35.99

$

Usually ships in 4-12 days

0

11

Gravely 046231

PLATE, BACK
(Superseded to 21279100)

$

$

Not available

12

Gravely 023539

SHOE, BRAKE
(Superseded to 08530400)

$

$

Not available

13

Gravely 023506

CAM, BRAKE
(Superseded to 08530000)

$282.99

$

In Stock, only 1 left!

0

14

Gravely 023508

SPRING, SHOE RETURN
(Superseded to 08530200)

$22.99

$

In Stock, only 2 left!

0

15

Gravely 045705

BRAKE, 7X1.75 MECHANICAL
(Superseded to 08770200)

$

$

Not available

16

Gravely 120384

WASHER, LOCK 1/2 REG.
(Superseded to 06300115)

$1.49

$

In Stock, only 2 left!

0

17

Gravely 138300

BOLT, 1/2-13X3.50 HEX HEAD CAP
(Superseded to 05933800)

$

$

Not available

18

Gravely 044488

DRUM, BRAKE
(Superseded to 08950800)

$

$

Not available

19

Gravely 124549

KEY, WOODRUFF .187X.75 HRD #9
(Superseded to 06608700)

$1.49

$

In Stock, Qty 5

0

20

Gravely 045863

WELDMENT, BRAKE CROSS SHAFT
(Superseded to 08771900)

$

$

Not available

21

Gravely 047177

BUSH., ST. .780X1.00X1.75 STL.
(Superseded to 08733100)

$

$

Not available

22

Gravely 423315

WASHER, FLAT .813X1.37X.100
(Superseded to 06401140)

$1.99

$

In Stock, Qty 6

0

23

Gravely 010174

BUSH., FLG. .764X1.47X.560 NY.
(Superseded to 05518400)

$5.49

$

In Stock, only 2 left!

0

24

Gravely 018019

LEVER, PTO
(Superseded to 08705700)

$

$

Not available

25

Gravely 011270

E-RING, .750 SHAFT
(Superseded to 05707400)

$2.99

$

In Stock, only 2 left!

0

26

Gravely 011263

SPRING, EXT. 5.5X.5X20 RATE
(Superseded to 08353300)

$15.99

$

In Stock, only 1 left!

0

27

Gravely 011329

CLIP, SPRING
(Superseded to 08657900)

$

$

Not available

28

Gravely 180124

BOLT, HEX 3/8-16X1.25
(Superseded to 05901724)

$1.99

$

In Stock, Qty 10

0

29

Gravely 124829

NUT, JAM 3/8-16 HEX
(Superseded to 06500910)

$1.49

$

In Stock, Qty 9

0

30

Gravely 020772

ARM, PARKING BRAKE LOCK
(Superseded to 08859800)

$

$

Not available

31

Gravely 120382

WASHER, LOCK 3/8
(Superseded to 06300116)

$1.49

$

In Stock, Qty 8

0

32

Gravely 413534

NUT, LOCK 3/8-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

33

Gravely 120394

WASHER, FLAT .406X.812X.065
(Superseded to 06401013)

$1.49

$

In Stock, Qty 15

0

34

Gravely 020775

WASHER, NYLON .375X.75X.06
(Superseded to 06433600)

$0.99

$

In Stock, only 4 left!

0

35

Gravely 121223

PIN, COTTER .06X.75
(Superseded to 06707500)

$0.99

$

In Stock, only 1 left!

0

36

Gravely 120392

WASHER, FLAT .281X.625X.065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 10

0

37

Gravely 046064

ROD
(Superseded to 08775400)

$51.99

$

Usually ships in 4-12 days

0

38

Gravely 120123

PIN, COTTER .125X1.25
(Superseded to 06700212)

$0.99

$

In Stock, Qty 8

0

39

Gravely 041944

PAD, PEDAL
(Superseded to 00270100)

$3.99

$

In Stock, only 4 left!

0

40

Gravely 045565

PEDAL, BRAKE
(Superseded to 08969800)

$

$

Not available

41

Gravely 041921

PLATE, BRAKE
(Superseded to 08938300)

$

$

Not available

42

Gravely 045918

PIN, CLEVIS .25X1.03
(Superseded to 06700209)

$3.99

$

Usually ships in 4-12 days

0

43

Gravely 026428

BEARING
(Superseded to 05430300)

$

$

Not available

44

Gravely 421879

WASHER, FLAT .656X1.250X.100
(Superseded to 06430300)

$3.99

$

Usually ships in 4-12 days

0

45

Gravely 045215

WELDMENT, BRAKE PEDAL
(Superseded to 08765200)

$284.99

$

Usually ships in 4-12 days

0

46

Gravely 411027

FITTING, LUBE 1/4-28
(Superseded to 07012600)

$

$

Not available

47

Gravely 045865

ROD, BRAKE CONTROL L.H.
(Superseded to 08656500)

$

$

Not available

48

Gravely 126325

BOLT, CARRIAGE 1/4-20X1.25
(Superseded to 06219700)

$4.99

$

Usually ships in 4-12 days

0

49

Gravely 041923

PEDAL, BRAKE

$

$

Not available

50

Gravely 419454

NUT, LOCK 1/4-20
(Superseded to 06500832)

$5.49

$

In Stock, only 1 left!

0

51

Gravely 045260

WELDMENT, BRAKE PEDAL L.H.
(Superseded to 08766300)

$

$

Not available

52

Gravely 045264

ROD, BRAKE CONTROL L.H.
(Superseded to 08656200)

$

$

Not available

53

Gravely 126227

BOLT, CARRIAGE 3/8-16X.75
(Superseded to 06200312)

$1.99

$

In Stock, Qty 6

0

54

Gravely 045266

STRAP, BRAKE PEDAL STOP
(Superseded to 08766600)

$

$

Not available

55

Gravely 045263

SHAFT, BRAKE PEDAL MNTG
(Superseded to 08766500)

$

$

Not available

56

Gravely 045787

BUSH., FLG. .630X1.00X.625 NY.
(Superseded to 05517400)

$7.49

$

Usually ships in 4-12 days

0

57

Gravely 045222

BRACKET, BRAKE PEDAL
(Superseded to 08765800)

$

$

Not available

58

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$3.49

$

In Stock, only 3 left!

0
