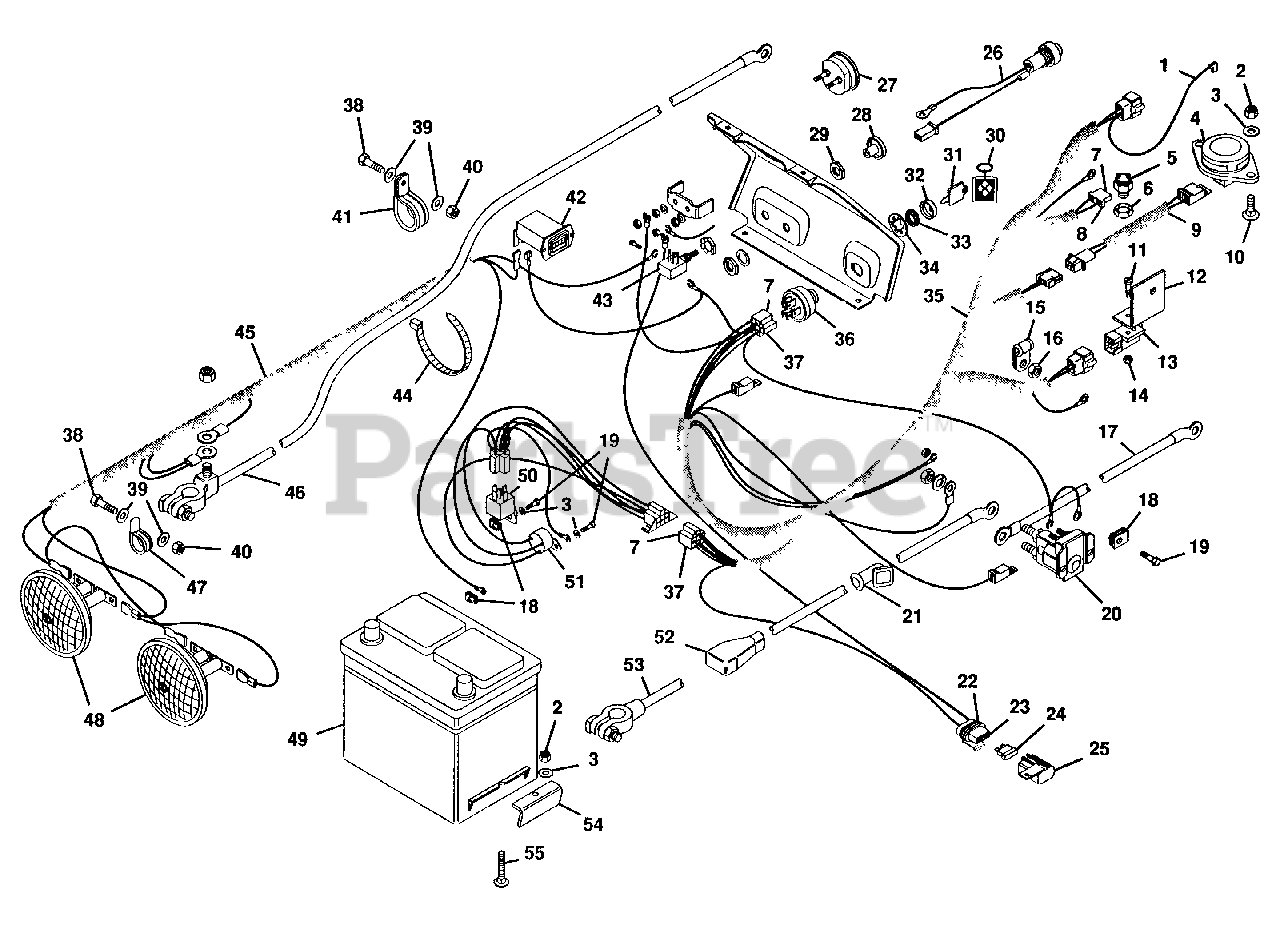

51000 (24-G) - Gravely Lawn Tractor > Parts Diagrams (18) > ELECTRICAL SYSTEM

  • Title
047350

1

WIRE

Part# 047350 (Superseded to 20861500)

OEM Warranty Repair Part for Gravely

Not available

419454

2

NUT, LOCK 1/4-20

Part# 419454 (Superseded to 06531000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

120392

3

WASHER, FLAT .281X.625X.065

Part# 120392 (Superseded to 06437300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $0.84

045036

4

SWITCH, SEAT

Part# 045036 (Superseded to 03490500)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $30.07

020916

5

SWITCH, INTERLOCK

Part# 020916 (Superseded to 02913100)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $35.16

107354

6

NUT, STAMPED 9/16-18

Part# 107354 (Superseded to 07015100)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

038059

7

TERMINAL

Part# 038059 (Superseded to 08540001)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

042176

8

CONNECTOR, 2-WIRE SWITCH

Part# 042176 (Superseded to 08550000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $21.07

045601

9

HARNESS, WIRING SEAT SWITCH

Part# 045601 (Superseded to 08769000)

OEM Warranty Repair Part for Gravely

Not available

120518

10

BOLT, 1/4-20X.75 RD HD SQ NK

Part# 120518 (Superseded to 06219900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

159947

11

SCREW, MACHINE 10-24X.75 PHD

Part# 159947 (Superseded to 06111200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.85

047397

12

BRACKET, PTO SWITCH

Part# 047397 (Superseded to 08780400)

OEM Warranty Repair Part for Gravely

Not available

046219

13

SWITCH, INTERLOCK

Part# 046219 (Superseded to 08828100)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $17.55

190254

14

NUT, LOCK 10-24

Part# 190254 (Superseded to 06536000)

OEM Warranty Repair Part for Gravely

Not available

027122

15

CLAMP

Part# 027122 (Superseded to 06907200)

OEM Warranty Repair Part for Gravely

Not available

456004

16

NUT, LOCK 3/8-16

Part# 456004 (Superseded to 06535800)

OEM Warranty Repair Part for Gravely

Not available

046177

17

CABLE, STARTER

Part# 046177 (Superseded to 08776600)

OEM Warranty Repair Part for Gravely

Not available

011676

18

NUT, SPEED 1/4-20

Part# 011676 (Superseded to 07016800)

OEM Warranty Repair Part for Gravely

Not available

180020

19

BOLT, HEX 1/4-20X.75

Part# 180020 (Superseded to 05946800)

OEM Warranty Repair Part for Gravely

Not available

045071

20

SWITCH, MAGNETIC

Part# 045071 (Superseded to 03551000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $17.55

033847

21

BOOT, BATTERY CABLE

Part# 033847 (Superseded to 03384700)

OEM Warranty Repair Part for Gravely

Not available

045920

22

CONNECTOR

Part# 045920 (Superseded to 20822700)

OEM Warranty Repair Part for Gravely

Not available

045922

23

TERMINAL, 14-16 GAUGE

Part# 045922 (Superseded to 20822900)

OEM Warranty Repair Part for Gravely

Not available

045037

24

FUSE, 25 AMP

Part# 045037 (Superseded to 08961800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.47

045921

25

COVER

Part# 045921 (Superseded to 20822800)

OEM Warranty Repair Part for Gravely

Not available

041926

26

LIGHT, INDICATOR

Part# 041926 (Superseded to 08758000)

OEM Warranty Repair Part for Gravely

Not available

021848

27

GAUGE, AMMETER

Part# 021848 (Superseded to 03490800)

OEM Warranty Repair Part for Gravely

Not available

038186

28

KNOB, LIGHT SWITCH

Part# 038186 (Superseded to 07516400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $21.07

018587

29

NUT, SPECIAL LIGHT SWITCH

Part# 018587 (Superseded to 06520800)

OEM Warranty Repair Part for Gravely

Not available

045842

30

CHAIN, KEY

Part# 045842 (Superseded to 03490000)

OEM Warranty Repair Part for Gravely

Not available

045488

31

KEY, IGNITION SWITCH

Part# 045488 (Superseded to 02460700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $7.77

045490

32

BOOT, 9/16 SWITCH

Part# 045490 (Superseded to 07517700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

045489

33

NUT, JAM 9/16-24

Part# 045489 (Superseded to 06517400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $6.65

019667

34

WASHER, LOCK 9/16 INT. TOOTH

Part# 019667 (Superseded to 06310900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

046075

35

HARNESS, WIRING

Part# 046075 (Superseded to 08775800)

OEM Warranty Repair Part for Gravely

Not available

019223

36

SWITCH, IGNITION

Part# 019223 (Superseded to 59211800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $27.89

038058

37

CONNECTOR

Part# 038058 (Superseded to 20645101)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.81

180079

38

BOLT, HEX 5/16-18X1.00

Part# 180079 (Superseded to 05946900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

120393

39

WASHER, FLAT .344X.688X.065

Part# 120393 (Superseded to 06437200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

419455

40

NUT, LOCK 5/16-18

Part# 419455 (Superseded to 06530200)

OEM Warranty Repair Part for Gravely

Not available

050395

41

CLAMP, STEEL 1.00

Part# 050395 (Superseded to 06917900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.48

038256

42

HOURMETER

Part# 038256 (Superseded to 03966800)

OEM Warranty Repair Part for Gravely

Not available

011337

43

SWITCH, LIGHT

Part# 011337 (Superseded to 03490700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $21.07

010629

44

TIE, CABLE

Part# 010629 (Superseded to 07517300)

OEM Warranty Repair Part for Gravely

Not available

046232

45

HARNESS, WIRING GROUND AND LIGHT

Part# 046232 (Superseded to 08777400)

OEM Warranty Repair Part for Gravely

Not available

039871

46

CABLE, NEGATIVE BATTERY

Part# 039871 (Superseded to 08745800)

OEM Warranty Repair Part for Gravely

Not available

050394

47

CLAMP, STEEL .625

Part# 050394 (Superseded to 06908200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

039069

48

HEADLIGHT

Part# 039069 (Superseded to 03114900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $19.00

042597

49

BATTERY, 12 VOLT

Part# 042597

OEM Warranty Repair Part for Gravely

Not available

040216

50

RELAY

Part# 040216 (Superseded to 00432101)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $20.07

040215

51

MODULE, TIME DELAY

Part# 040215 (Superseded to 59000400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $173.23

034466

52

COVER, BATTERY TERMINAL

Part# 034466 (Superseded to 07523100)

OEM Warranty Repair Part for Gravely

Not available

039861

53

CABLE, BATTERY TO MAGNETIC SWITCH

Part# 039861 (Superseded to 08745500)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $35.16

037742

54

CLAMP

Part# 037742 (Superseded to 08539500)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $22.25

126344

55

BOLT, 1/4-20X2.00 RD HD SQ NK

Part# 126344 (Superseded to 06222900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18
